A107 Hifi Bluetooth Receiver 5.0 Digital Interface with Antenna Type-C Cable and Optical Fiber Cable

A107 Hifi Bluetooth Receiver 5.0 Digital Interface with Antenna Type-C Cable and Optical Fiber Cable

Description:
CSR8675 Bluetooth receiver is for SBC/AAC/Aptx/Aptx-HD/LDAC. It enables optical and coaxial audio output and there is no analog output.

Features:
- Bluetooth 5.0: It is for aptx, aptx-HD and LDAC. Due to an external antenna, the effect is better
- 96K sampling rate is supported (LDAC format)
- Powered via USB type-C. It is simple to use. It works when it is powered on
- There is a LED indicator. The indicator will flash slowly when the Bluetooth is disconnected. In pairing mode, the indicator will flash quickly. And the indicator will stay on when the Bluetooth is connected
- It will automatically enter Bluetooth pairing mode when it is powered on. The pairing mode will last for 3 minutes. If it is over 3 minutes, the device will restart and enter pairing mode again. Or you can long press the PLAY button for 3 seconds to enter pairing mode

Button:
- In Bluetooth, short press the button to play/pause. Long press the button for 3 seconds to enter Bluetooth pairing mode.

Specifications:
- Bluetooth Name: Bluetooth A107
- Power supply: USB type-C 5V power supply and current 500 MA
- Bluetooth distance: 10m/32.8ft
- Board size: 73 x 80mm/2.9 x 3.1" [excluding module antenna and structure protruding part]
- Accessory: 2.4G folding antenna

Package Included:
- 1 x Main unit
- 1 x Antenna
- 1 x Type-C Cable
- 1 x Optical Fiber Cable

Attention:
- Before purchasing, please check whether your cellphone supports LDAC. Does your decoder support 24bit 96k?

The test results of LDAC function of some mobile phones are as follows:
- Support: Huawei mate30, Xiaomi 9pro, OnePlus 7pro, etc.
- Not supported: not for iPhone, Android phone of low versions, etc.
- If your cellphone doesn't support LDAC, other protocols of the mobile can be used. It doesn't affect normal use, but the protocol of LDAC cannot be used.

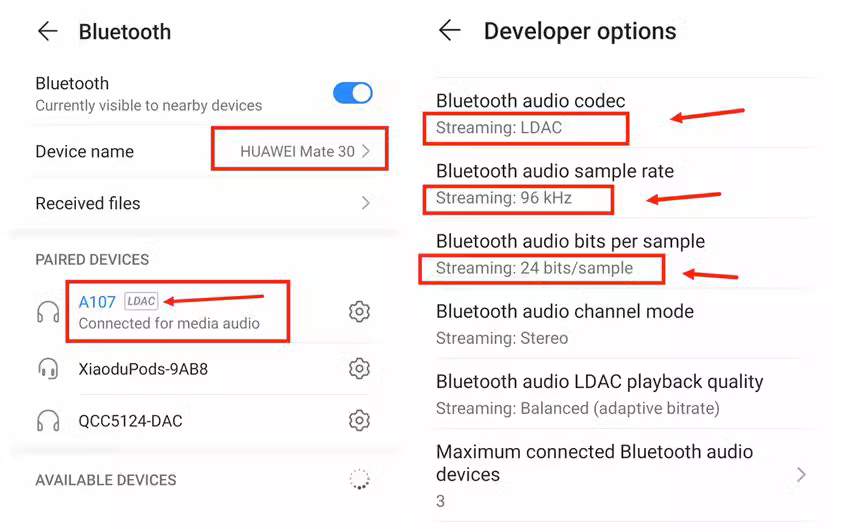

- View method: For Android phone users, enter the developer mode to drop down to view.
