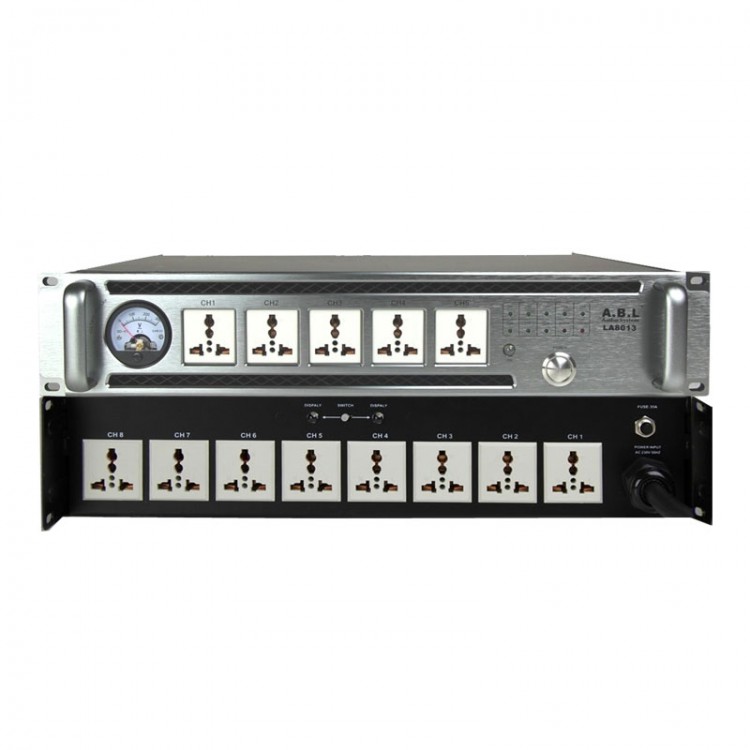

ABL LA8013 Power Sequencer Power Supply Sequencer with 5CH Pass-Through + 8CH Controlled Sockets

ABL LA8013 Power Sequencer Power Supply Sequencer with 5CH Pass-Through + 8CH Controlled Sockets

Features:
- 5CH pass-through sockets on the front panel
- 8CH controlled sockets on the rear panel
- Each channel reaches 3000W high power
- All channels are designed with filtering
- Mechanical display voltmeter indicates the sequencer
- Application: For entertainment engineering, performance engineering and conference engineering series. Can be used with 4-5pcs 1000W-2500W power amplifier

Specifications:
- Maximum input current: 30A
- Maximum output current of a single channel: 16A
- Working voltage: 110/220V 50-60Hz
- Power per channel: Up to 3000W
- Input and output voltage: AC input voltage = AC output voltage
- Output power supply socket: Universal socket, in line with European, American and Chinese standards
- Socket material: Each socket is made of phosphor copper. The sockets are installed only after passing strict inspection
- The interval between each switch: 1 second. Each channel has one switch indicator light, and the rear end is equipped with two switch indicator lights
- Relay: Songle relay
- Circuit board: 60% high-purity tin, high-end shunt technology, strengthened and thickened
- Transformer: A&C original transformer
- Power cord: built-in cable 2.5 square meters for each channel and 3x6 square meters for external cable. Cable length: 1.5m/4.9ft without plug
- Voltage display: Mechanical display voltmeter
- Chassis height: 2U (cabinet mounting standard)
- Switch button: Uni-direction push-button switch
- Online support: None
- Filter: Imported professional filter for KMX, and each channel with filtering
- G.W.: 6.3kg/13.9lb

Package Included:
- 1 x Set of Power Sequencer
