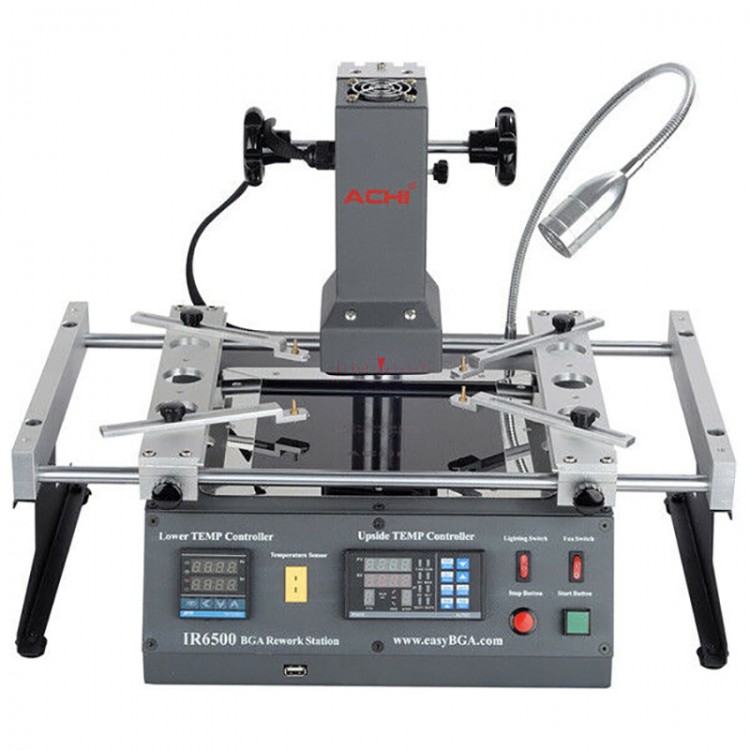

ACHI IR6500 Infrared BGA Rework Station Soldering Station for Phone Computer PCB Board Repairing
R6500 rework station is suitable for laptop motherboards, desktop computer motherboards, server boards, industrial computer boards, all kinds of game boards, communications equipment motherboards, LCD TVs and other large circuit board BGA rework.
Total power: 1250W
Upper size: 80mm*80mm
Lower heater: 800W
Lower part size: 180mm*180mm
PCB size: 400*305mm (maximum)
BGA chip size: 70mm*70mm
Positioning: V-type PCB
Net weight: 16 kg
Temperature control: K-type temperature sensor and closed loop
-It can set up 8 rising temperature segments and 8 constant temperature segments to control. It can save 10 groups of temperature curves at one time.
-IR6500 rework station can be connected to a computer to be controlled more conveniently with a built-in USB connector and proprietary software attached to it.
-It can easily rework the variety of CPU's seat, all kinds of shielding enclosures, replacement of various components slot can easily deal with lead-free soldering rework.
-With sensitive temperature measurement sensor to obtain an accurate and instantaneous temperature reading and monitoring.
-The BGA rework station adopts the technology of closed-loop temperature control to ensure accurate temperature process and even heat distribution.
-With overall system integration design, the rework station has more integrated and smaller workbench area, without mix and disorderly of cables.
-Linear guide type bracket with abnormity pole can be locked, adjusted by rotating the handle, very easily to fix PCB board, effectively prevent the deformation of PCB board.
1. For repairing mobile phones
2. For repairing laptops/computers
3. For repairing game consoles
4. For repairing any other mainboards with size from 22x22mm to 500x400mm
5. For preheating chips or mainboards before soldering to improve rework efficiency
-1 x BGA Rework Station
-1 x Instruction CD
-1 x Accessories Kit
