ACS-3 Adjustable Frequency Standard High Stability 10MHz Clock Frequency Reference 1CH Sinewave + 3CH Square Wave
Description:
- ACS-3 is a fixed 10MHz and 3-channel adjustable clock frequency reference source box, with ultra-high frequency stability, ultra-low phase noise, 16bit digital calibration method, no reliability issues caused by mechanical adjustment, constant temperature voltage reference design, ensuring temperature characteristics.
- Suitable for various audio decoders, digital turntables, digital broadcasting products, various instrument products, network cards, and other devices that require high-precision reference frequencies.
Parameter:

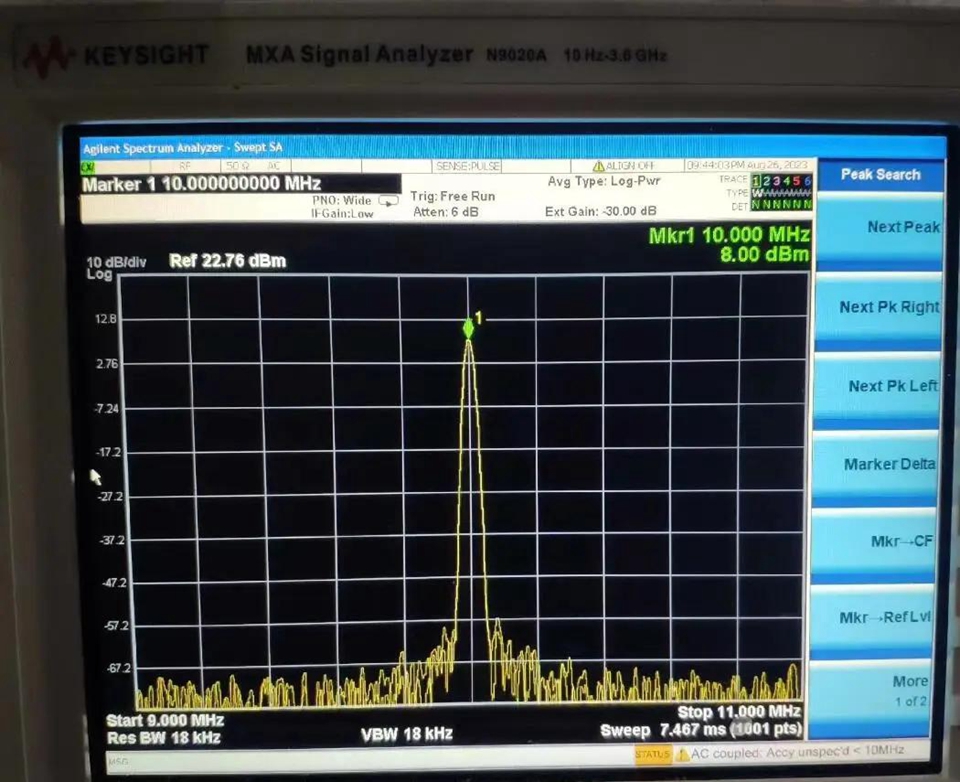

- Fixed 10Mhz output: 1 channel (Sine wave) 8dBm ± 1dBm
- Adjustable frequency output: 3 channels (square wave) 12dBm ± 1dBm

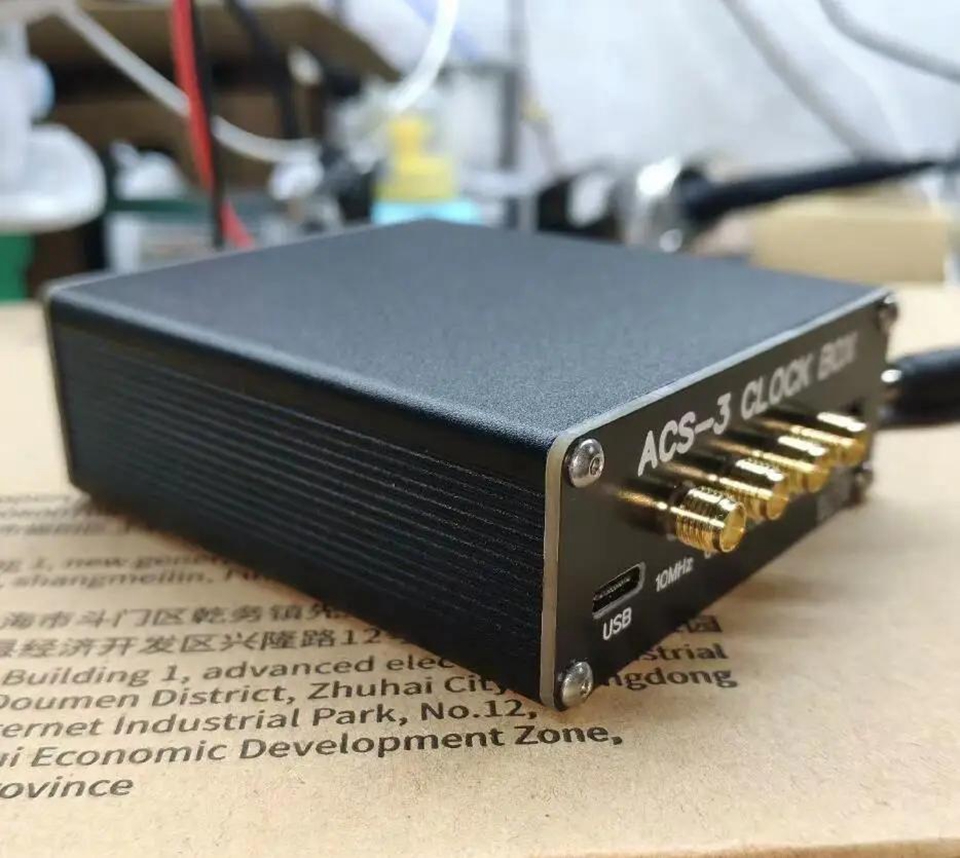

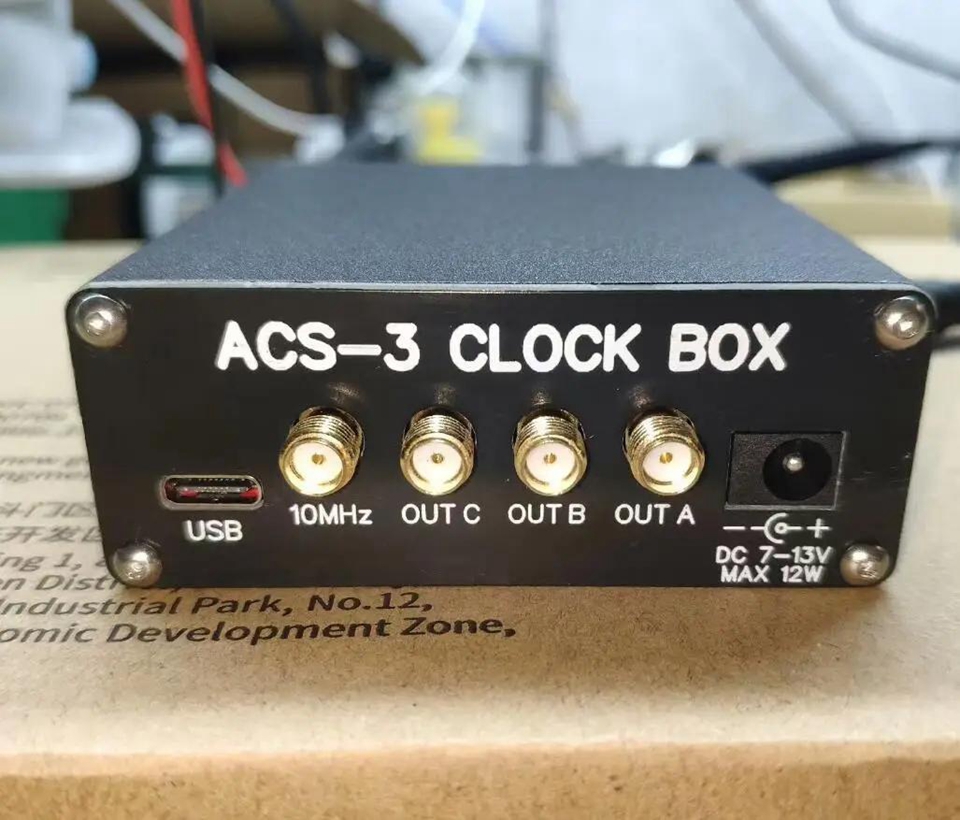

- Output interface type: SMA outer screw inner hole
- 10MHz fixed output calibration accuracy: ± 0.001Hz (maximum allowable calibration ± 0.0001Hz)
- OUTA-OUTC adjustable output accuracy: ± 0.01Hz (depending on 10MHz calibration accuracy)

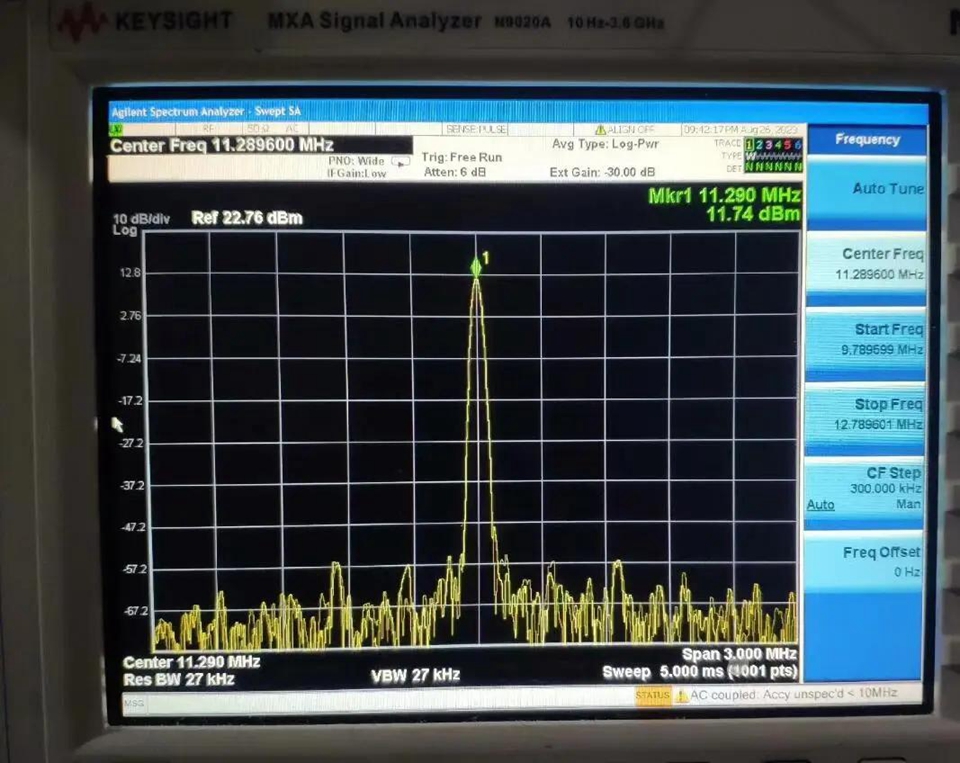

- OUTA-OUTC adjustable frequency range: 10kHz-220MHz
- 10MHz fixed output phase noise: ≤ -145dBc/ Hz at 10Hz
- OUTA-OUTC adjustable output phase noise: ≤ -130dBc/ Hz at 1K
- Temperature stability: ± 0.5ppb
- Aging: ± 0.5ppb/day; ± 0.03ppm/year
- Calibration method: software (16Bit)
- Voltage: DC7-13V
- Power consumption: <12W (<600mA) during preheating phase, <8W during operation phase (<300mA)
- Preheating time: ≈ 10 minutes
- Working temperature: -10 ℃ to 80 ℃

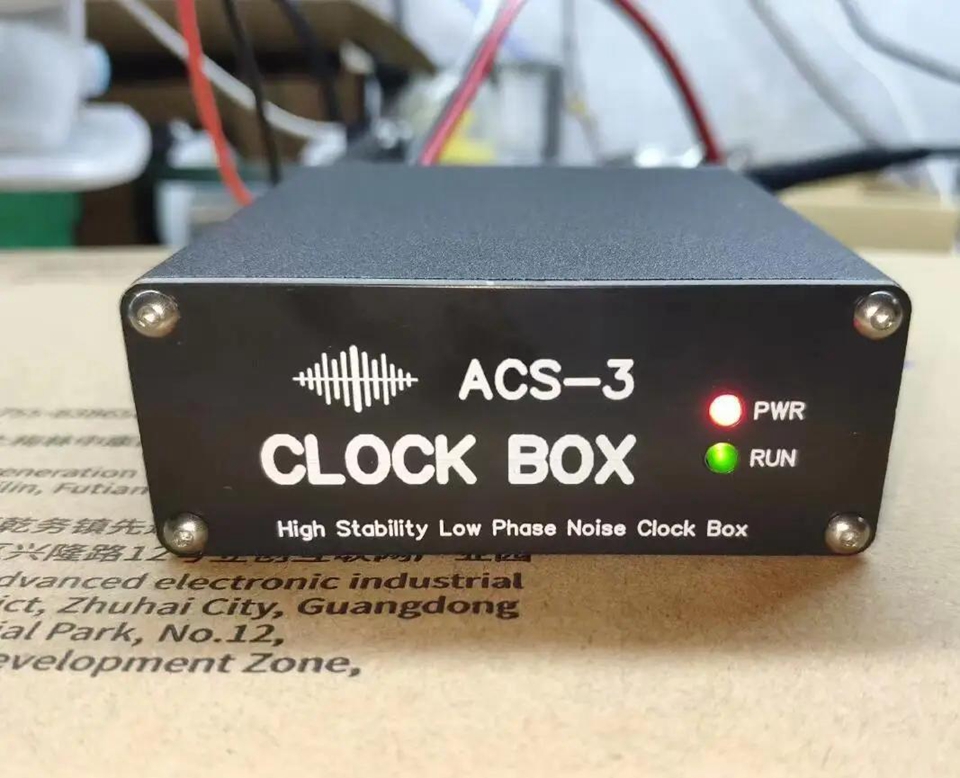

Indicator light description:
- PWR: Power indicator light.
- RUN: Running indicator light; Flashing indicates preheating, and constant on indicates stable frequency. After powering on, it flashes at a speed of 0.5S and warms up approximately 5 minutes later.
- Kind reminder: Before shipment, it will be recalibrated and aged for more than 6 hours, with a calibration accuracy of ± 0.001 Hz. Affected by transportation vibrations, the final accuracy in the user's hands is better than ± 0.01Hz.
Package Included:
- 1 x Frequency Standard
