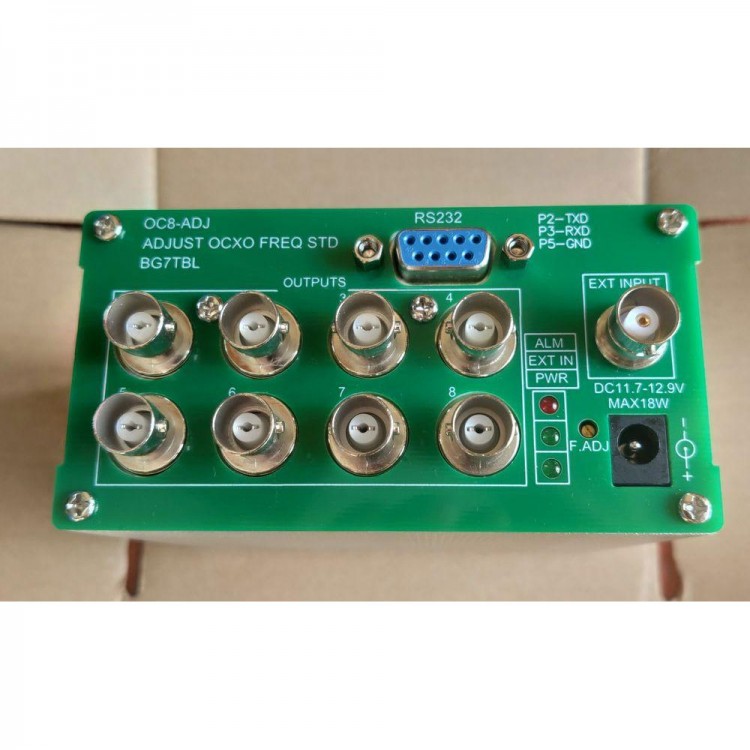

BG7TBL OC8-ADJ 10K-150M 8-Channel Adjustable OCXO Frequency Standard 10M High Stability with SMA Connector
Specification:
- Product name: 8-channel OCXO frequency standard
- Model: OC8-ADJ
- Power supply: DC9-12V, <=18W
- Frequency adjust range: about 5Hz at 10M
- Output socket: power - 5.5/2.1 port; signal output - BNC/SMA port
- External input: BNC port, 0-20DBM, 10MHz
- Serial port: to write frequency
- Indicator:
ALM: alarm indicator; light off for normal; light on for PLL unlock or other fault
EXT-IN: light on for there is external standard frequency input
PWR: power indicator; light on for power-on
- Product size: W x H x D = 107 x 55 x 122mm (include the connector length)
- Product weight: 800g (include the power adapter)
8 Channel output signal:
- Frequency range: 10K - 150M, OUT6 can only output 0.5M, 1M, 2M, 5M, 10M, 20M, 50M, 100M
- Frequency step: 10K - 10M, 1Hz; 10M - 150M, 10Hz
- Waveform: square wave
- Impedance: 50ohms
- Amplitude: compatible with 5Vpp or 3.3Vpp
- 10M output reference phase noise: 1Hz-100dBc/Hz, 10Hz-131dBc/Hz, 100Hz-142dBc/Hz, 1K-150dBc/Hz
- Non-harmonics spurious: better than 50dB
Package Included:
- 1 x Frequency Standard
- 1 x Power Adapter
