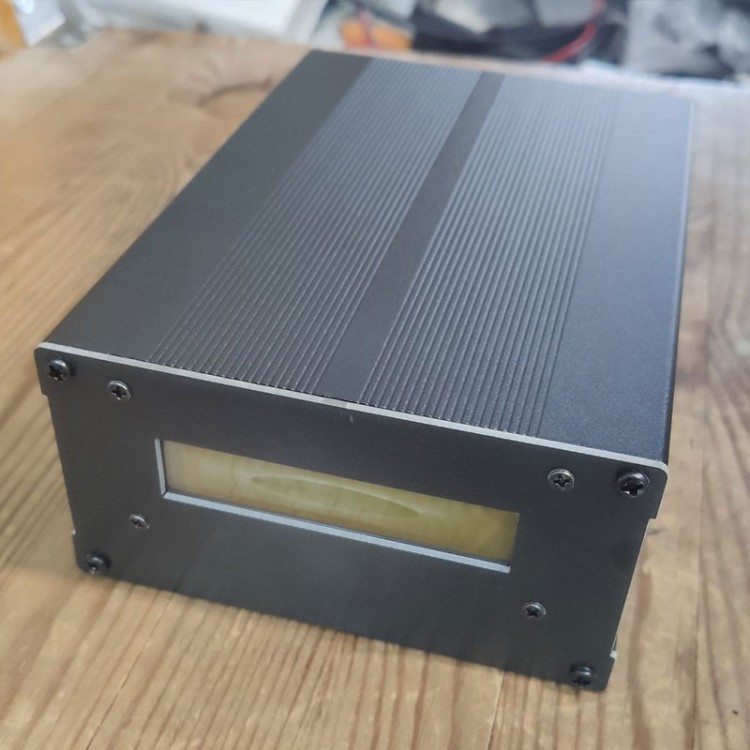

OC3-ADJ 75ohms 3.3Vpp 3-Channel Adjustable Frequency Standard OCXO 10K-150M High Quality RF Accessory

Availability: In stock, usually dispatched in 1 business day

  • Price:$134.75
  • Price in reward points: 1348 Reward Points: 13
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $132.06 $129.36 $125.32 $119.93 Contact US
Quantity:

OC3-ADJ 75ohms 3.3Vpp 3-Channel Adjustable Frequency Standard OCXO 10K-150M High Quality RF Accessory

Specification:

- Product name: 3-channel OCXO frequency standard
- Model: OC3-ADJ
- Power supply: DC11.7 - 12.9V, <= 18W
- Frequency adjustable range: about 5Hz at 10M
- Output interface: 5.5/2.1 port for power supply; BNC for signal output
- COM port: to connect RS232 port of computer for programming
- LED:
  ALM: alarming indicator, which is in off state normally; light on to indicate that PLL is unlocked or frequency is out of range.
  PWR: power indicator, light on when power on
- Product size: W x H x D = 167 x 55 x 122mm (including the connector length)
- Net weight: 800g (including the adapter weight)

3-Channel Output Signal:
- Frequency range: 10K- 150M
- Frequency step: 10K-10M, 1Hz, 10M-150M, step 10Hz
- Waveform: square wave
- Impedance: 50ohms/ 75ohms (optional)
- Voltage: compact 5Vpp or 3. 3Vpp (optional)
- 10M output reference phase noise: 1Hz-100dBc/Hz, 10Hz-131dBc/Hz, 100Hz-142dBc/Hz, 1K-150dBc/Hz
- Non-harmonic spurious: better than 50dB

Package Included:
- 1 x Frequency Standard
- 1 x Power Adapter
- 1 x Programming Cable
