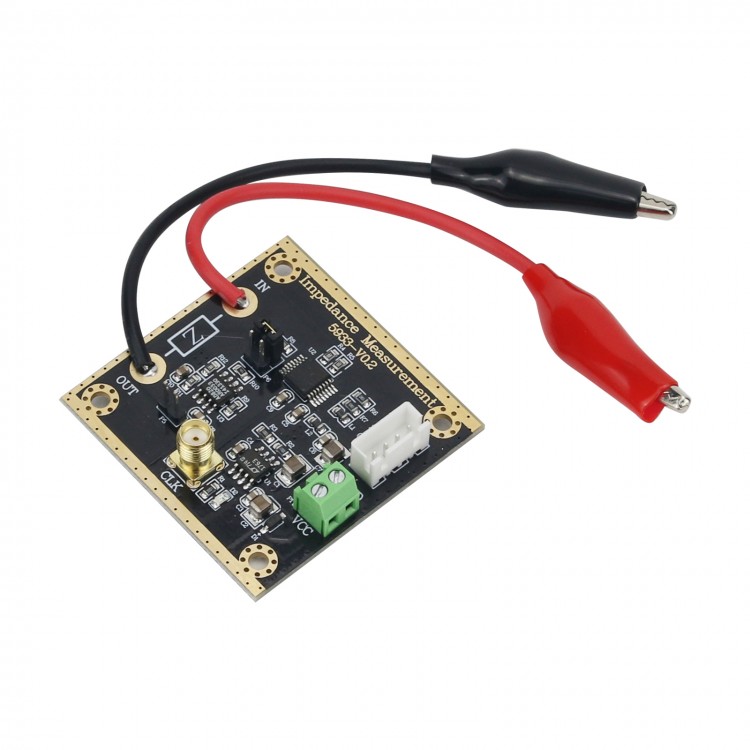

AD5933 Impedance Converter Network Analyzer Module 1M Sampling Rate 12Bit Resistance Test
Specification:
- Size: 50*50mm
- Voltage: 5V
- Sampling rate: 1M
- Resolution: 12 bit
- Integrated ADC,DSP and digital frequency generator DDS
Features:
- Programmable output peak voltage, output fraquency up to 100KHz
- Programmable frequency scanning function and seriel I2C interface
- Frequency resolution: 27bit(<0.1Hz)
- Impedance test range: 1KOhm to 10MOhm
- Internal temperature sensor
- Internal system clock options
- Phase measurement: 0.5%
- Power voltage: -40~125 deg C
- 16 pin SSOP encapsulation
Package List:
- 1 x Module
