Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $21.13 | $20.70 | $20.05 | $19.19 | Contact US |

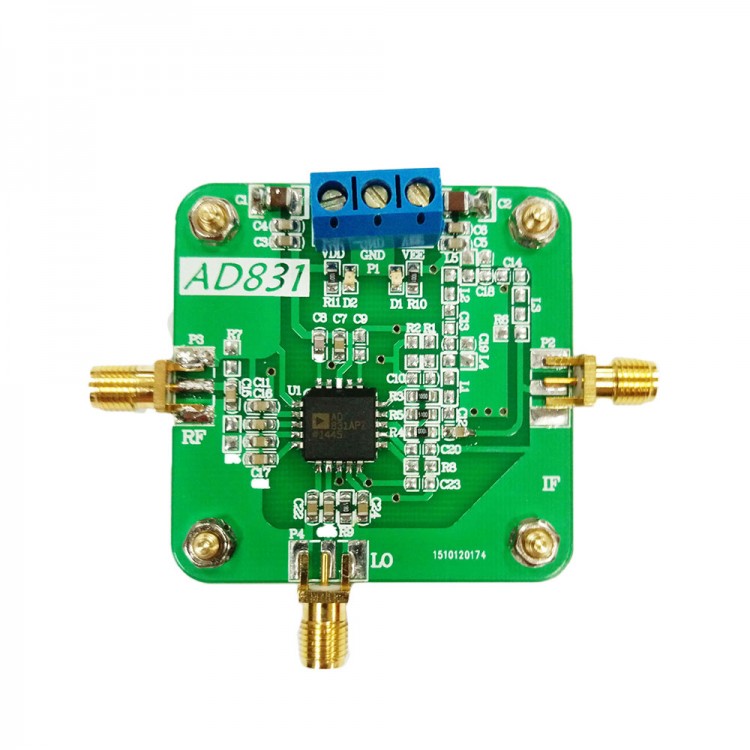

AD831 High Frequency Mixer Module Bandwidth 500MHz Support Up Down Mixing
Specification:
- Name: AD831 High Frequency Mixer
- Size: 50*50mm
- Volatage: -+5V
Features:
- Double balanced mixer
- Low distortion
- +24dBm three section cut off point (IP3)
- +10dBm 1db crash point
- Bandwidth: 500Mhz RF and LO input bandwidth
- 250Mhz difference current IF otuput
- DC up to 200MHz and above single end voltage IF output
- Low IO drive requirement: -10dBm
- Single power ot dual power supply
- Direct current coupling when using dual power
- All the port can be DC coupling
- User can program power consumption
Package List:
- 1 x AD831 High Frequency Mixer Module
