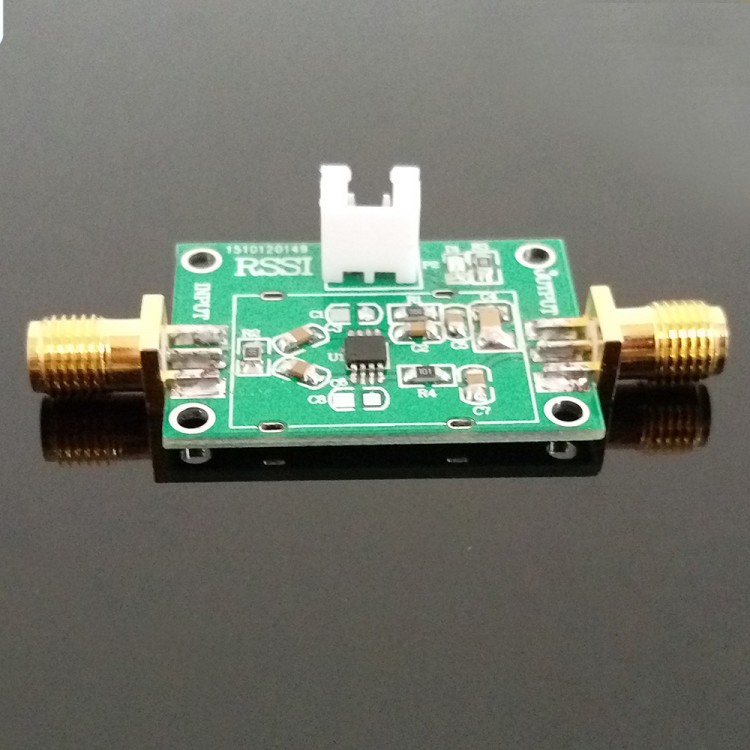

AD8310 Module DC-440M 95dB Logarithmic Detector Logarithmic Amplifier

Availability: In stock, usually dispatched in 1 business day

  • Price:$17.49
  • Price in reward points: 175 Reward Points: 2
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $17.14 $16.79 $16.27 $15.57 Contact US
Quantity:

AD8310 Module DC-440M 95dB Logarithmic Detector Logarithmic Amplifier

Specifications:

- Name: AD8310 Logarithmic Detector
- Size: 31*23mm
- Power supply; 5V

Product features:
- Voltage output, the rise time is less than 15 NS
- High current capacity: 25 mA to ground RL
- 95 dB dynamic range: - 91 +4 to dBV dBV
- Slope: +24 mV/dB, the intercept : - 108 dBV
- The scale is highly stable, does not change with the temperature
- Fully differential DC coupled signal channel
- Power on time: 100 ns, sleep current: 1 mA
- Operating frequency: DC to 440 MHz, linear degree: + -0.4 dB

Product application:
- RSSI
- Transmit power control
- Pulse detection

Package List:
- 1 x AD8310 Module
