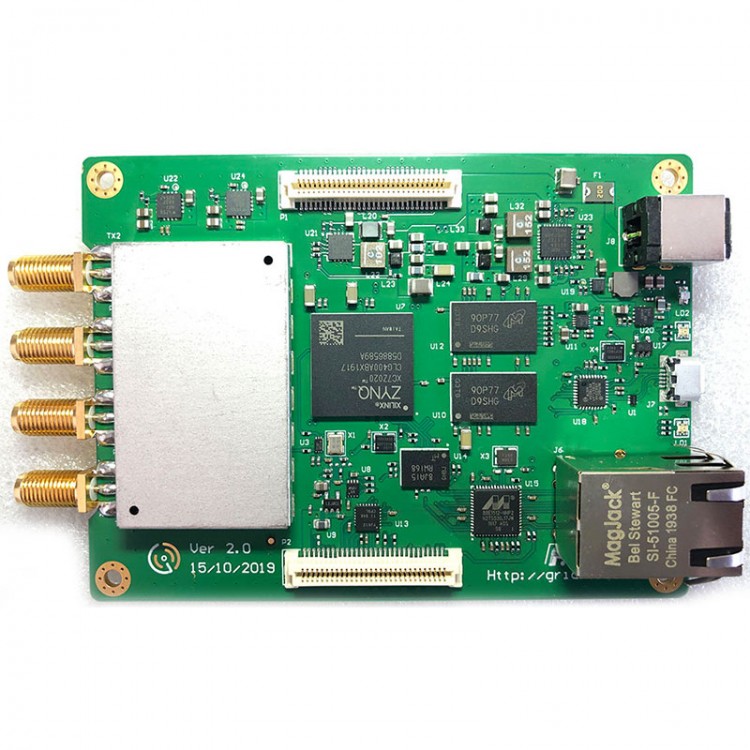

AD9361 70MHz-6GHz SDR Platform RF Development Board Software Defined Radio Kit NH7020 Module
Description:
-This product adopts AD9361 and ZYNQ7020 chips, all the software is open source, and the hardware schematic is open source.
-AD9361 is ADI professional software radio transceiver. We have developed a high-performance platform that combines practicality and entertainment on the basis of referring to the original ADI materials.
Specifications:
Frequency range: 70MHZ-6GHZ
Transceiver mode: 2R2T
Clock accuracy: 200ppb (without GPS synchronization), 2ppb (GPS synchronization)
Operating system: Linux
Memory: 1GB
FLASH: 32MB
CD card: extended support
FPGA: 85K
Network: 1000MBit
USB: 2.0 HIGH SPEED
Antenna: 2 receive 2 send (4 ports)
Power supply: 5.0V
Power consumption: 3.5W (0.7A at 5.0V)
Expanded support: USB serial port, sound card, OLED, GPS synchronization, JTAG.
Wireless Parameters:
Transmitting power: <3 db (70MHZ-6GHZ)
Receiving sensitivity: -110db
Product Size:
PCB (without plug-in): 75mm * 102mm
Application:
1. LTE Femtocell
2. GPS Simulator
3. ODFM image transmission system
4. Encrypted digital communication
5. Digital radar
6. Frequency retransmission system
7. Baseband verification
Package Included:
1 Set Main Board
