MicroPhase Mizar Z7020 FPGA Development Board SoC for ZYNQ PYNQ Artificial Intelligence Python

Availability: In stock, usually dispatched in 1 business day

  • Price:$223.11
  • Price in reward points: 2231 Reward Points: 22
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $218.65 $214.19 $207.49 $198.57 Contact US
Quantity:

MicroPhase Mizar Z7020 FPGA Development Board SoC for ZYNQ PYNQ Artificial Intelligence Python

Features:

- Open-source development board for Python development
- Mizar Z7 supports for PYNQ, i.e. for Python and ZYNQ. Directly call library for Python and FPGA hardware library, and use Python for ZYNQ SoC development. This can simplify and improve product series-based design for ZYNQ, speed up development process, shorten development cycle, and reduce development difficulty, making it more convenient and fast, especially in AI aspects of edge applications
- With on-board USB download circuit, no need to buy a USB cable downloader
- High quality and cost-effective SoC development board

Specifications:
- Module model: Mizar Z7020
- Main chip: XC7Z020CLG400-2
- Core: Dual core for Cortex-A9, master frequency 766MHz
- Logic Units: 85k
- DDR3: 8Gbit, 1066Mbps
- USB-JTAG: With onboard USB JTAG circuit, you can download programs and realize emulation online without additional downloader
- QSPI Flash: 256Mbit. Can be used to store system boot image file for ZYNQ and user data
- Gigabit Ethernet: one-way 10/100/1000M adaptive Ethernet; can be used for network communication and related applications
- USB Host: one-way USB Host used to connect USB peripherals, such as keyboard, mouse, and USB camera
- USB Slave: one-way USB Slave, which can be used as a slave device for data interaction with a master device (such as a PC)
- Wi-Fi/BT: one-way Wi-Fi integrated BT, can be applied wireless transmission, IoT application
- SD Card: Support one-way SD card to store system boot image file for ZYNQ and file system
- USB-UART: one-way USB UART interface for ZYNQ to communicate with PC
- HDMI output: one-way HDMI output; can also be configured as HDMI input, 1080P image video output
- HDMI input: one-way; can be configured as output
- MIPI CSI: one-way
- EEPROM: One I2C interface EEPROM, 32Kb, 24C32
- Clock: one-way 33.3333MHz for PS side and one-way 50MHz for PL side
- Buttons: One system reset button; 6 user buttons, including 2 buttons for PS side and 4 buttons for PL side
- LEDs: 2 system LEDs, one of which for power supply and the other for download status; 6 user LEDs, including 2 LED for PS side and 4 LED for PL side
- Expansion port: 2-way 40-pin 2.54-pitch expansion port, 72pcs IO, 48pcs IO adjustable, 24pcs IO voltage 3.3V. Can be connected to MicroPhase expansion daughter cards, such as LCD daughter cards, high-speed ADDA daughter cards, and camera daughter cards
- Power supply: DC5V/2A
- PCB: 8-layer immersion gold process, independent power and ground planes, 125 x 90mm/4.9 x 3.5"

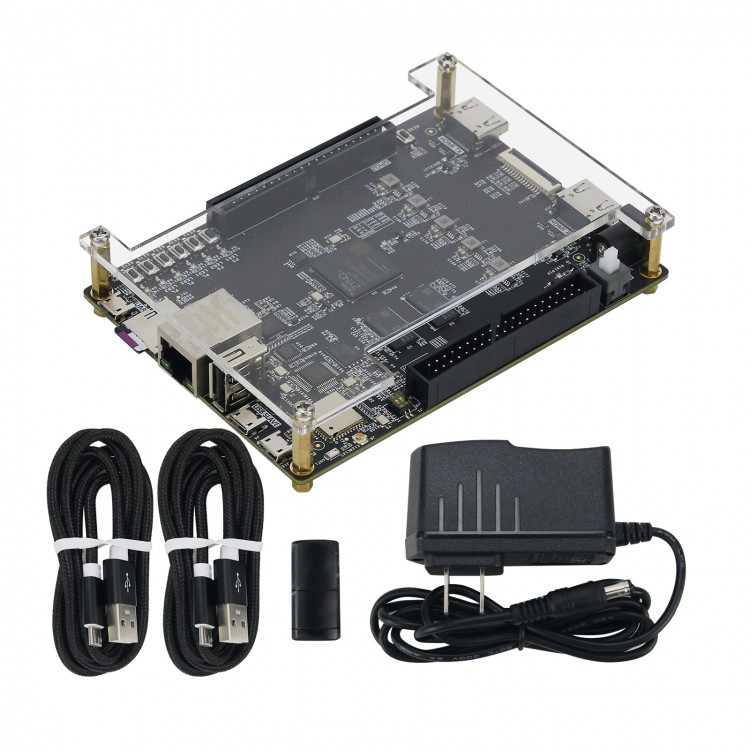

Package Included:

- 1 x FPGA development board
- 1 x Plexiglass protection board
- 1 x 16G SD card
- 1 x Card reader
- 1 x 5V/2A power supply
- 2 x Micro USB cables
