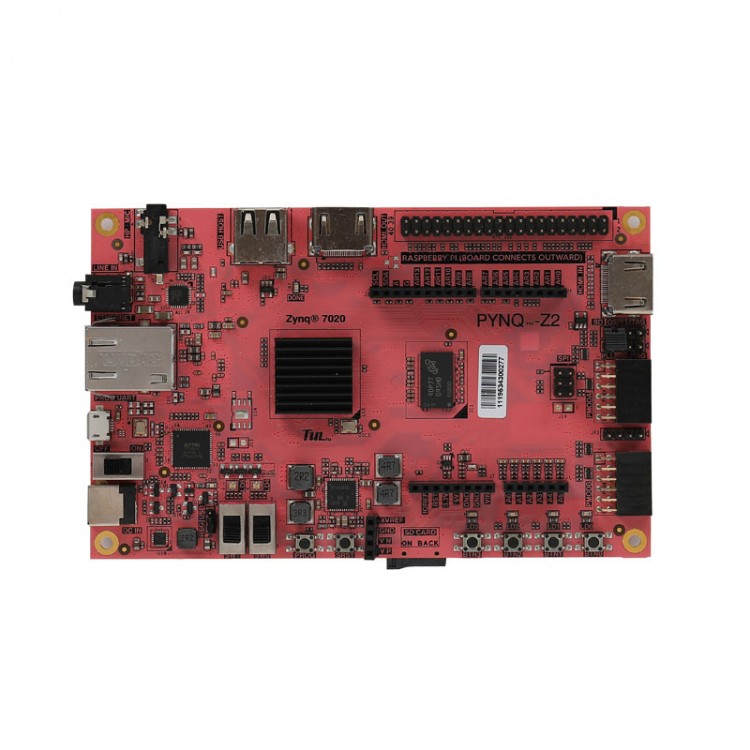

E-ELEMENTS FPGA Development Board PYNQ Z2 for ZYNQ 7020 Artificial Intelligence Python

E-ELEMENTS FPGA Development Board PYNQ Z2 for ZYNQ 7020 Artificial Intelligence Python

Description:
- Using the Python language and libraries, designers can exploit the benefits of programmable logic and microprocessors in for ZYNQ to build more capable and exciting embedded systems. PYNQ users can now create high performance embedded applications with: parallel hardware execution, high frame-rate video processing, hardware accelerated algorithms, real-time signal processing, high bandwidth IO, low latency control. PYNQ utilizes the best advantages of for ZYNQ and Python. It has been widely used for machine learning research and prototyping.

Specification:
For ZYNQ XC7Z020-1CLG400C Board:
- 650MHz dual-core Cortex-A9 processor
- DDR3 memory controller with 8 DMA channels and 4 High-Performance AXI3 Slave ports
- High-bandwidth peripheral controllers: 1G Ethernet, USB 2.0, SDIO
- Low-bandwidth peripheral controller: SPI, UART, CAN, I2C
- Programmable from JTAG, Quad-SPI flash, and MicroSD card
- Programmable logic equivalent to Artix-7 FPGA
  13,300 logic slices, each with four 6-input LUTs and 8 flip-flops
  630 KB of fast block RAM
  4 clock management tiles, each with a phase locked loop (PLL) and mixed-mode clock manager (MMCM)
  220 DSP slices
  On-chip analog-to-digital converter (XADC)

Memory:
- 512MB DDR3 with 16-bit bus at 1050Mbps
- Micro SD slot

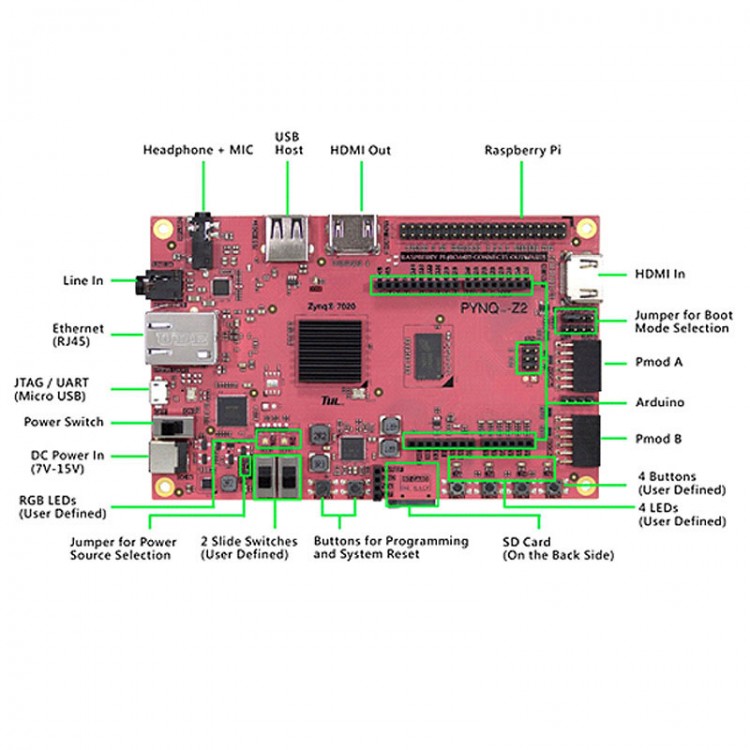

I/O interface:
- Gigabit Ethernet PHY
- Micro USB-JTAG Programming circuitry
- Micro USB-UART bridge
- USB OTG PHY (supports host only)
- HDMI sink port (input)
- HDMI source port (output)
- I2S interface with 24bit DAC with 3.5mm TRRS jack
- Line-in with 3.5mm jack

Switches, Push-buttons, and LEDs:
- 4 push-buttons
- 2 slide switches
- 4 LEDs
- 2 RGB LEDs

Expansion Connectors:
- Two standard Pmod ports
- 16 Total FPGA I/O (8 shared pins with Raspberry Pi connector)
- Arduino Shield connector
- 24 Total FPGA I/O
- 6 Single-ended 0-3.3V Analog inputs to XADC
- Raspberry Pi connector
- 28 Total FPGA I/O (8 shared pins with Pmod A port)

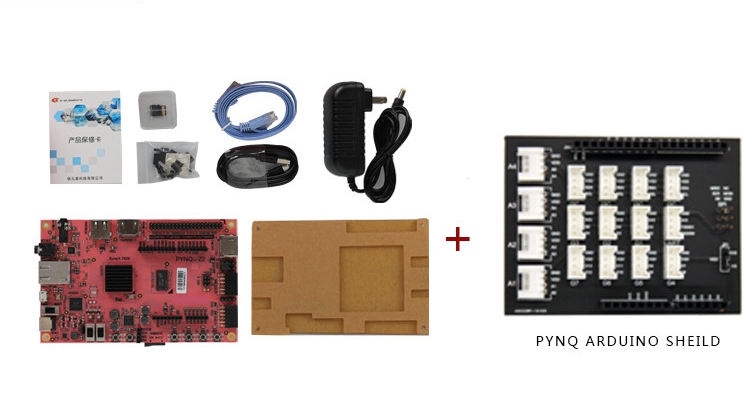

Package Included:
- 1 x PYNQ Z2 for ZYNQ 7020 Standard Kit
