Description:

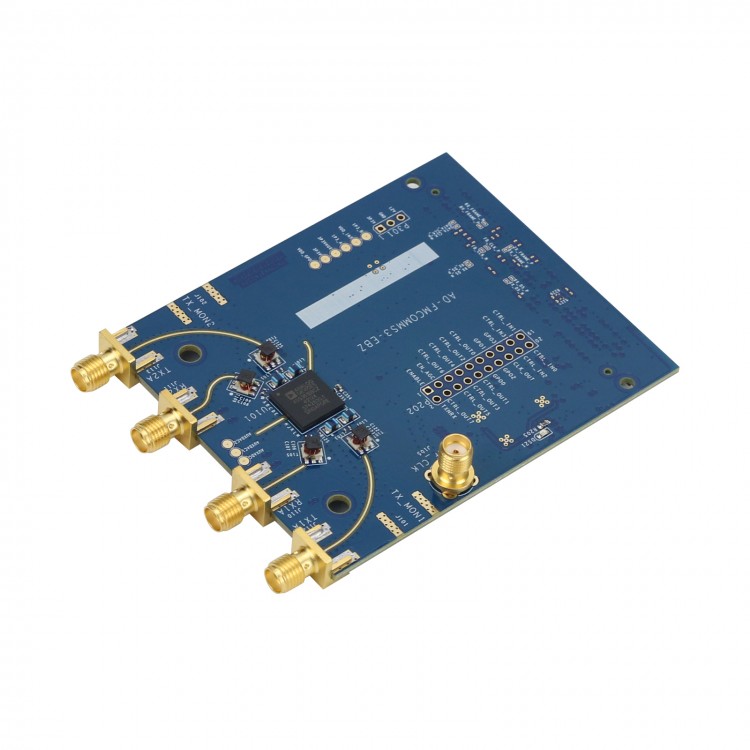

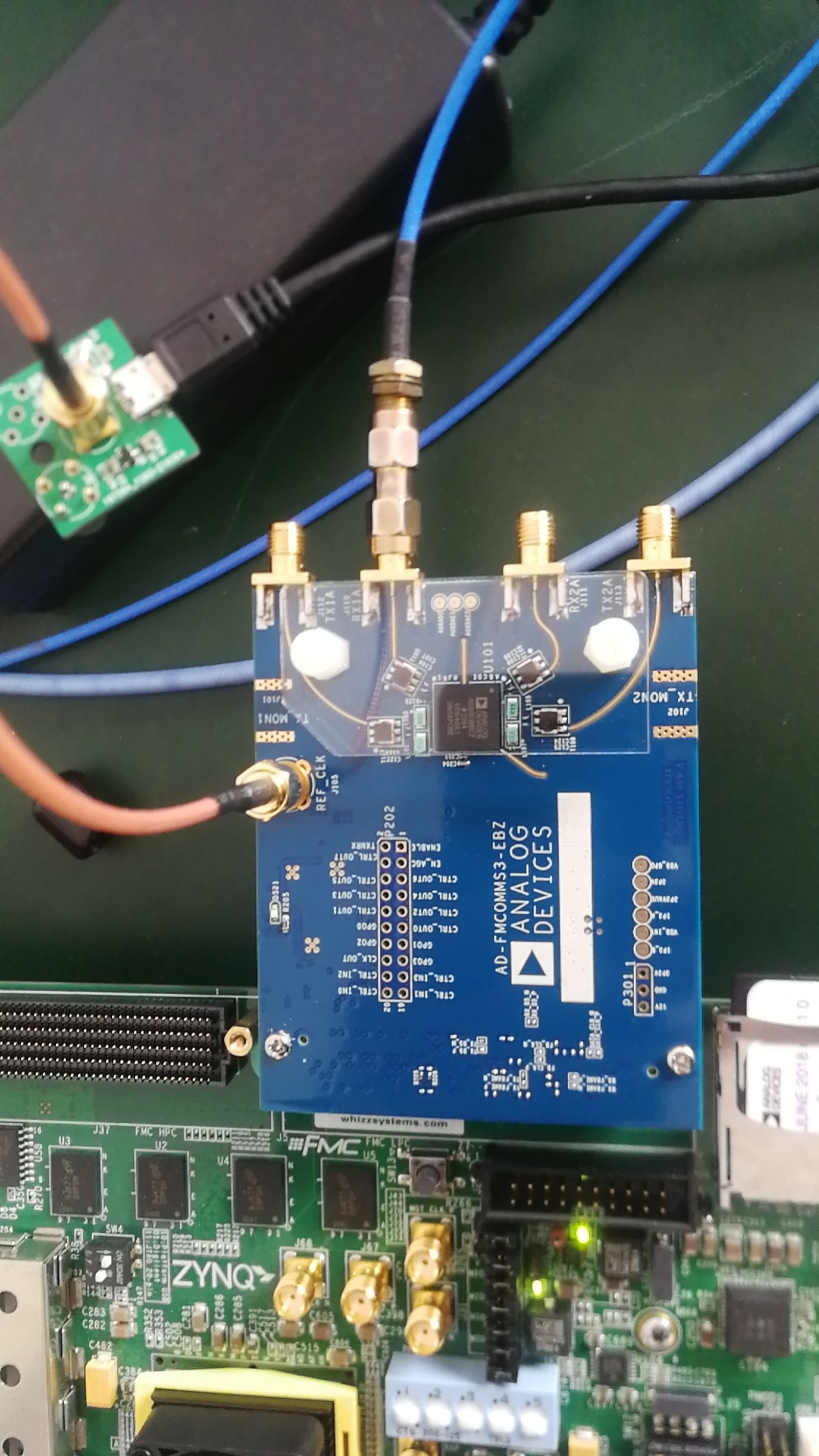

- AD-FMCOMMS-EBZ card is a high-speed analog FMC module, designed to showcase AD9361, a high-performance, highly integrated RF agile transceiver designed for RF, such as 3G and 4G base stations and SW software defined radios . Now most software radio product development and RF chip verification use this board.
Features:
- RF 2 × 2 transceiver with integrated 12-bit DAC and ADC
- TX frequency band: 47 MHz to 6.0 GHz
- RX frequency band: 70 MHz to 6.0 GHz
- Support TDD and FDD operation
- Tunable channel bandwidth: <200 kHz to 56 MHz
- Dual-channel receiver: 6 differential or 12 single-ended inputs
- Excellent receiver sensitivity with a noise figure of 2 dB (800 MHz LO)
- RX gain control
- Real-time monitoring and control signal for manual gain
- Independent automatic gain control
- Dual transmitters: 4 differential outputs
- High linearity broadband transmitter
- TX EVM: ≤−40 dB
- TX noise: ≤−157 dBm/Hz noise floor
- TX monitor: dynamic range ≥66 dB, accuracy = 1 dB
- Integrated fractional-N frequency synthesizer
- 2.4 Hz maximum local oscillator (LO) step size
- Multi-device synchronization
- CMOS/LVDS digital interface
For detailed parameter introduction and resources, please refer to ADI's official product introduction page:
https://wiki.analog.com/resources/eval/user-guides/ad-fmcomms3-ebz
