HAMGEEK R210 AD9363 SDR Development Board Zynq7020 512MB DDR3 for Openwifi Neptune ADI Pluto SDR

Availability: In stock, usually dispatched in 1 business day

  • Price:$293.28
  • Price in reward points: 2933 Reward Points: 29
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $287.41 $281.55 $272.75 $261.02 Contact US
Quantity:

HAMGEEK R210 AD9363 SDR Development Board Zynq7020 512MB DDR3 for Openwifi Neptune ADI Pluto SDR

New Upgrades:

- TCXO: 0.5ppm high accuracy
- High performance power supply for Texas Instruments
- Type-C interface

Features:
- HAMGEEK R210 is a completely upgraded SDR
- Supports for ZED-FMCOMMS2-3/Openwifi/Pluto SDR
- Supports host computer development (for official host computer/Matlab/GUN Raido, etc.)
- ZYNQ-XC7Z020-CLG400i + AD9363 + 2r2t
- With a Gigabit Ethernet port
- 512M DDR3
- Plug and play. Supports secondary development
- FPGA model: xc7z020-clg400
- RF chip model: AD9363
- Memory capacity: 512MB 16bit
- Supports Gigabit Ethernet port and ZED+FMCOMMS2-3 routine
- Supports for Plutosdr routine, and supports 2r2t
- Lower price. The radio signal transmission and reception performance is better than that of Plutosdr
- FPGA resources are three times larger than those of Plutosdr. It also incorporates more complex baseband algorithms
- Equipped with Gigabit Ethernet interface. Sampling bandwidth can reach 10mps (Plutosdr 5mps)
- Supported host computers: For SDR#, MATLAB, GNU Radio and SDRWIN and other SDR software and official test software for ADI
- At present, HamGeek has ported the software and HDL corresponding to fmcomms2, fmcomms3, 2r2t, Openwifi, Pluto SDR, adrv9364 and other hardware. This means that you can seamlessly integrate the tutorials of the above official hardware and the projects that require the above hardware. This is a cost-effective solution for the AD9361. You can use the official host computer as well as MATLAB and GNU Radio to do your own host computer development

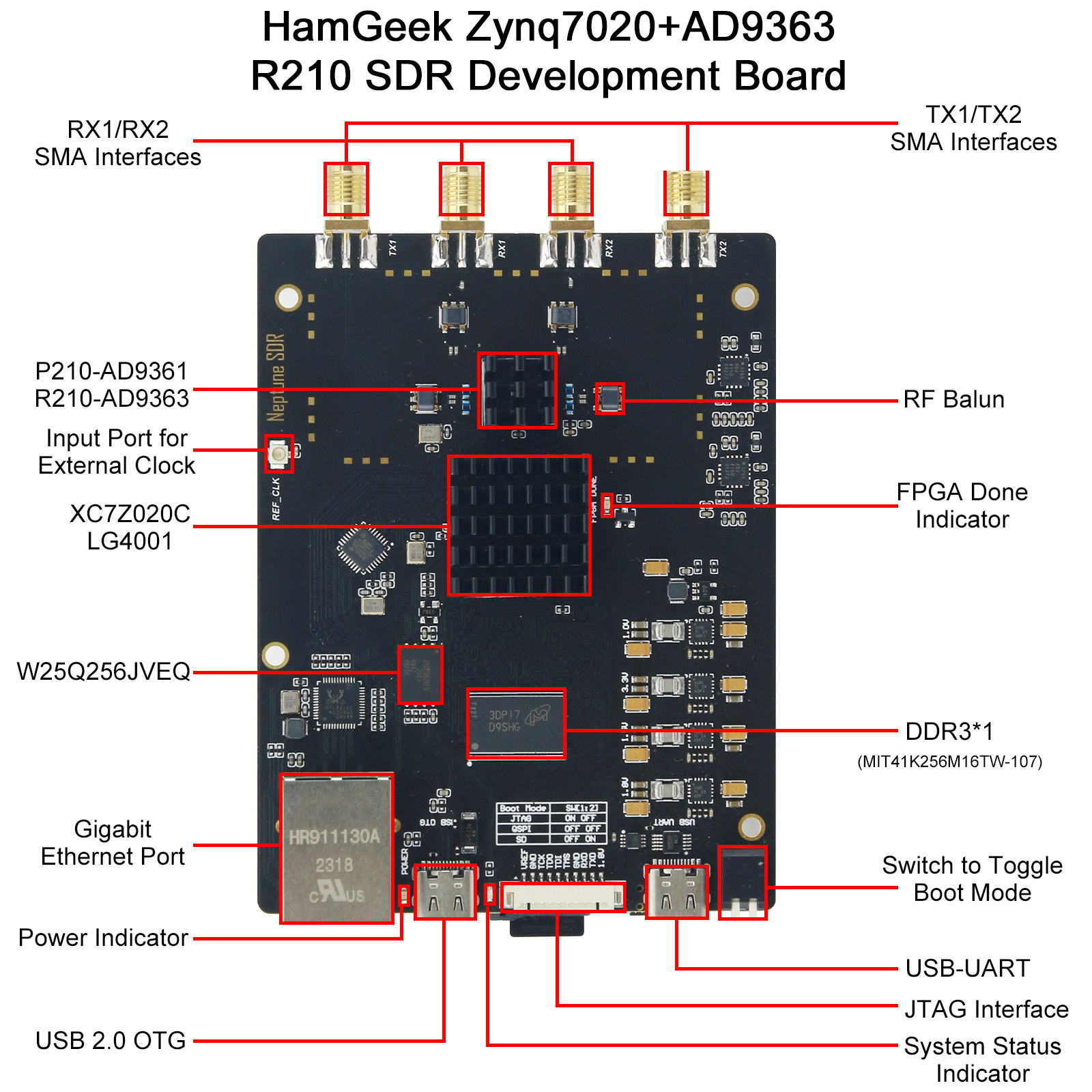

Specifications:
- RFIC: For ADI AD9363 2r2t, 2X2 MIMO. Frequency: 380M~3.8G (AD9363). 20M instantaneous bandwidth (AD9363)
- Baseband processing: ZYNQ7020, 512MBYTE DDR3; 256MBit QSPI

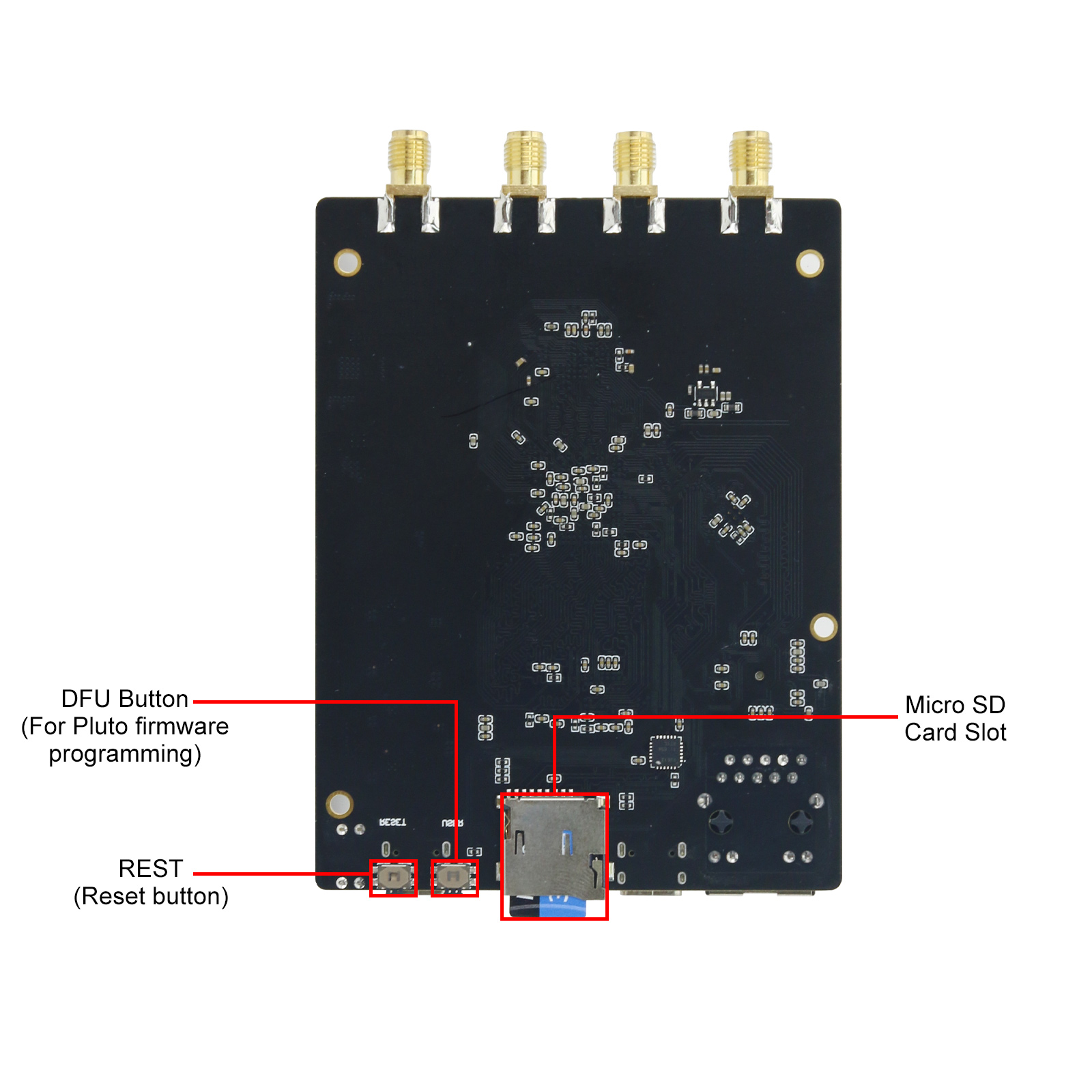

- Interface: RJ45 GIGA ETH, one-way SD card slot, USB TYPE-C CONSEL, and GPIO expansion
- Clock: Initial accuracy is 0.5ppm. VCTCXO dynamically adjusts the clock via digital PLL. The accuracy can be better than +/-5ppb
- API: ADI11O (pre-installed in the factory), C/C++ and PYTHON
- Size: 76mm x 100mm/3" x 3.9"
- Power supply: USB TYPE-C powered

Supports SDR Kits for More Applications:
HAMGEEK is committed to providing users with a more professional and versatile SDR platform. And we have made the following efforts, and there will be more projects and software support in the future.

Firmware Migration:
1. For PlutoSDR and ZED+FMCCOMS

Open Source Project Support (the following are official community support):
1. For openwifi
2. For gps_sdr_sim

Software Support:
1. For GNURadio
2. For SDR#
3. For SDRangel
4. For Matlab Simulink
5. For Gqrx SDR
6. For STASAGEN

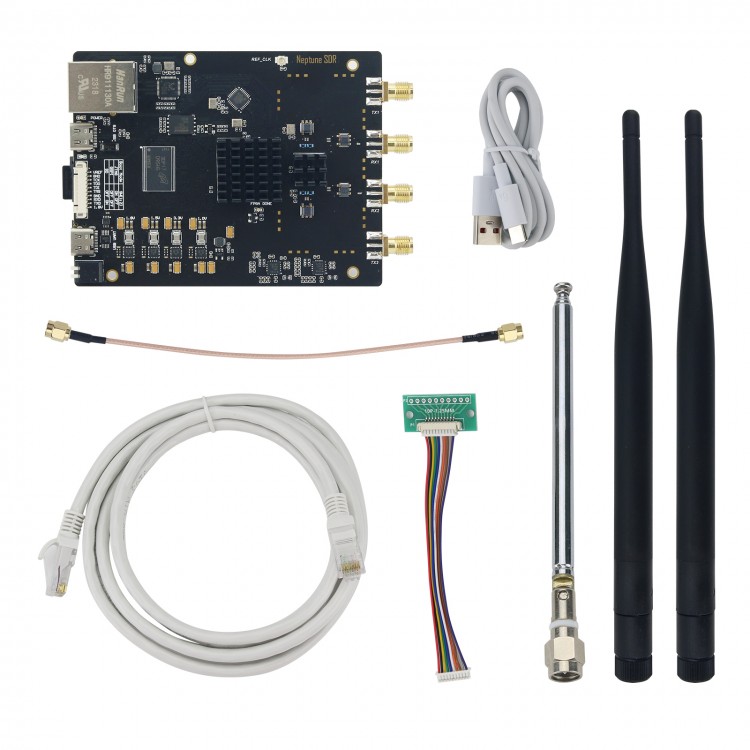

Package Included:
- 1 x HAMGEEK R210 Board
- 1 x USB Type-C Data Cable
- 1 x Network Cable
- 2 x Rubber Antennas (2.4G-5.8G)
- 1 x Telescopic Antenna (FM)
- 1 x SMA RF Coaxial Cable
- 1 x 32GB High-speed TF Card

Packaging Details:
- Weight: 0.5kg
