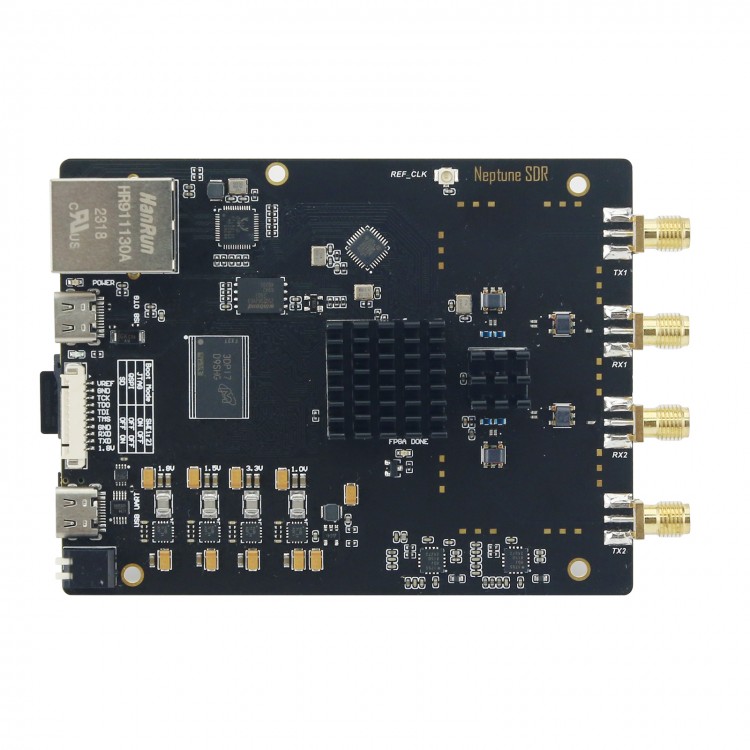

Neptune SDR R210 SDR Development Board AD9363 Supports for ZED-FMCOMMS2-3/Open WIFI/Pluto SDR

Neptune SDR R210 SDR Development Board AD9363 Supports for ZED-FMCOMMS2-3/Open WIFI/Pluto SDR

Features:
* Neptune R210 SDR development board AD9363
* Supports and better than Pluto
* XC7Z020-AD9363
* Cost-effective and low-threshold
* OpenWiFi/BTS
* HDMI-compatible output
* Supports for ZED-FMCOMMS2-3/Open WIFI/Pluto SDR
* Supports host computer development (official host computer/Matlab/for GUN Raido, etc.)
* ZYNQ-XC7Z020-CLG400 + AD9361 + 2-way TX + 2-way RX

Main Technical Indicators:
1. FPGA: XC7Z020-CLG400I
2. PS DDR: MT41K256M16TW*1 16Bit 512Mbyte
3. ETH: 1000M RJ45
4. USB: USB2.0 OTG
5. USB micro 5V power supply
6. RF FREQUENCY: 325MHZ~3.8GHZ
7. ADC/DAC acquisition: 12 bits
8. 2-way TX, 2-way RX, and duplex and half duplex working modes
9. RF matching resistance: 50 ohms
10. Instantaneous bandwidth: 20MHZ
11. Sampling rate:
 * In CMOS mode: Maximum data rate: 122.88 Msps (dual-port half-duplex, DDR mode); Maximum DATA_CLK rate: 61.44 MHz
 * In LVDS mode: Maximum data rate: 122.88 Msps (dual-port full-duplex); Maximum DATA_CLK rate: 245.76 MHz

RF Transmitter Technical Indicators:
* Local oscillator range: 325MHZ-3800MHZ
* Transmit power: < 5dbm 1GHZ CW mode
* Bandwidth: 200KHZ-20MHZ
* EVM: < 2% 5dBm at 20MHz
* Gain range: > 80db
* Gain step: 0.25db
* Side-band suppression: 40dbc
* Local oscillator suppression: 60dbc

RF Receiver Technical Indicators:
* Local oscillator range: 325MHZ-3800MHZ
* Receiver sensitivity: -90dBm at 20MHz
* Bandwidth: 200KHZ-20MHZ
* EVM: < 2% 5dBm at 20MHz
* Gain Range: > 60db
* Gain step: 1db
* Noise figure: < 8db
* IIP3: -25dbm

Package Included:
* 1 x SDR Development Board

Packaging Details:
* G.W.: 0.5kg
