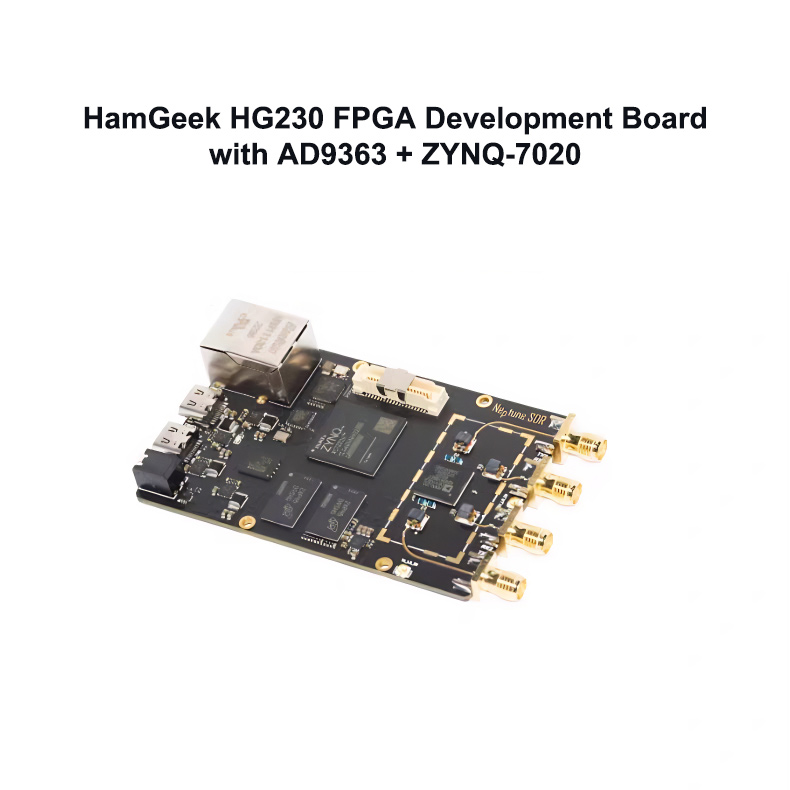

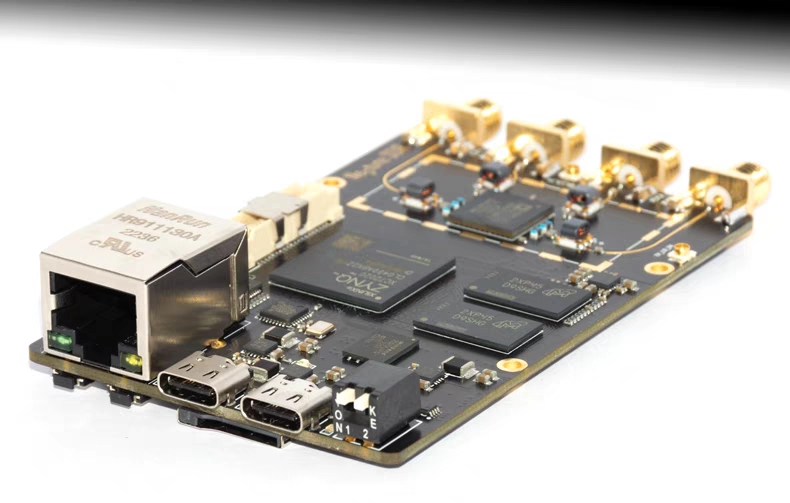

HamGeek HG230 380MHz-3.8GHz AD9363 + ZYNQ-7020 FPGA Development Board w/ 1G Ethernet Port 2T2R MIMO

HamGeek HG230 380MHz-3.8GHz AD9363 + ZYNQ-7020 FPGA Development Board w/ 1G Ethernet Port 2T2R MIMO

Features:
Derived from Pluto, Superior to Pluto
* HamGeek HG230 utilizes 2RT and supports MIMO
* It offers JTAG, making development more convenient and flexible
* Compatible with UHD/IIO for Ettus, with a sampling rate of up to 26 MSPS
* Equipped with dual DDR3 memory, totaling 1 GByte
* Supports Gigabit Ethernet port and reference design porting for ZED + FMCOMMS3
* Uses ZYNQ-XC7Z020, with enhanced logic capacity for more complex logic design
* Supports high-precision clocks and 0.5 ppm TCXO
* Supports expandable IO for complex and customized applications

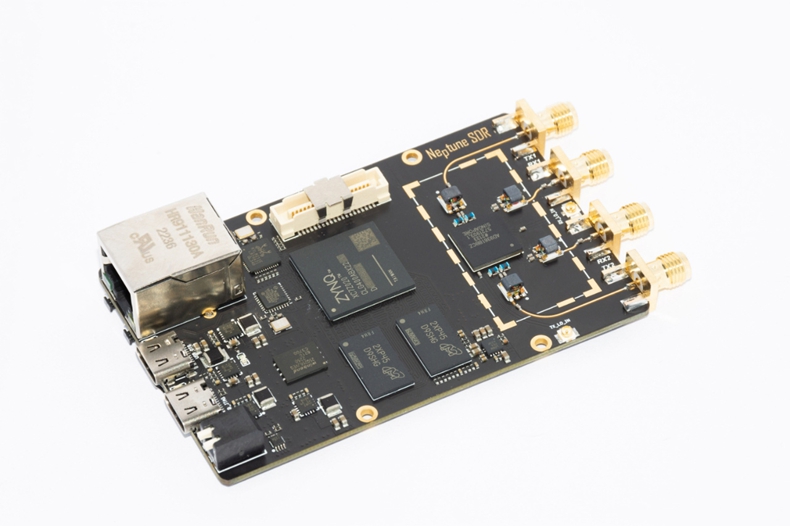

ZYNQ-XC7Z020-CLG400 with Enhanced Logic Capabilities
* It integrates a dual-core Cortex-A9 processor (766 MHz) and 85K logic cells.

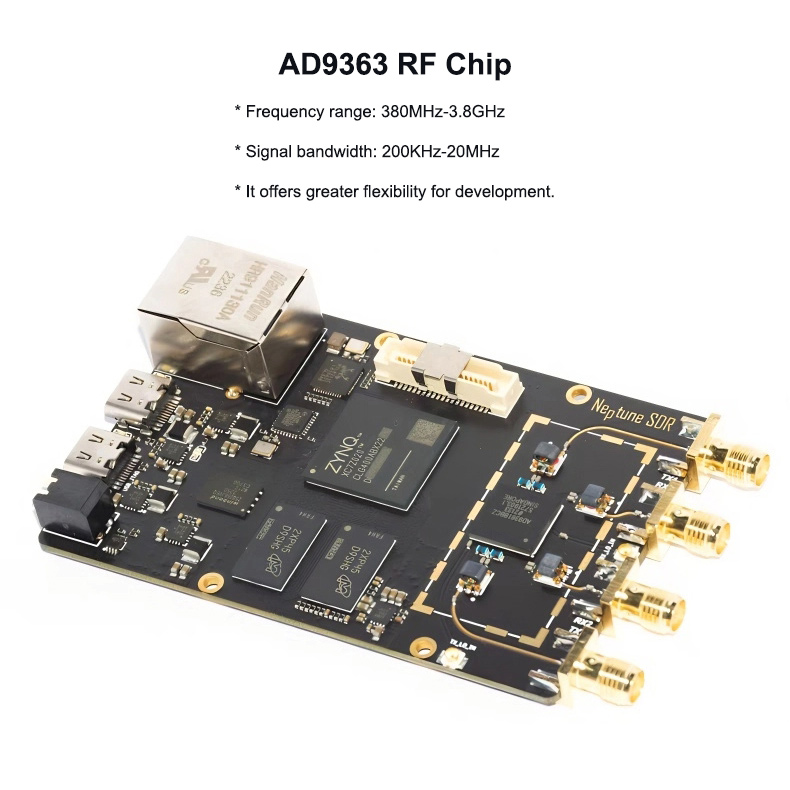

AD9363 RF Chip
* Frequency range: 380MHz-3.8GHz
* Signal bandwidth: 200KHz-20MHz
* It offers greater flexibility for development.

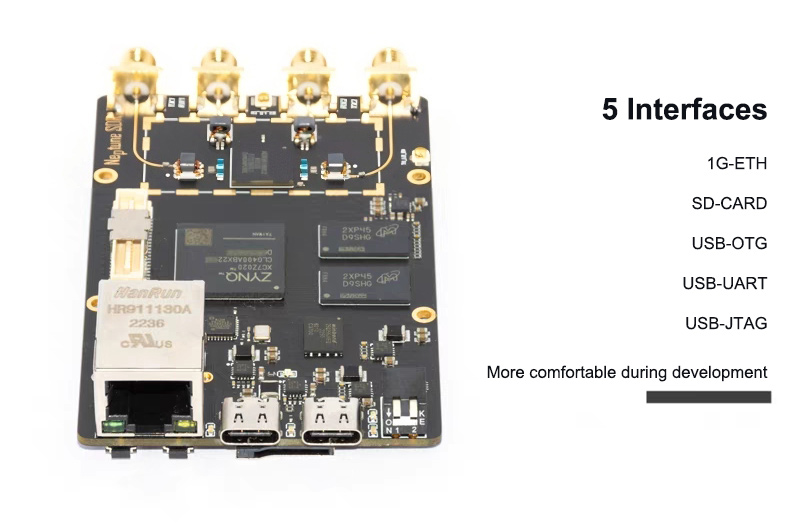

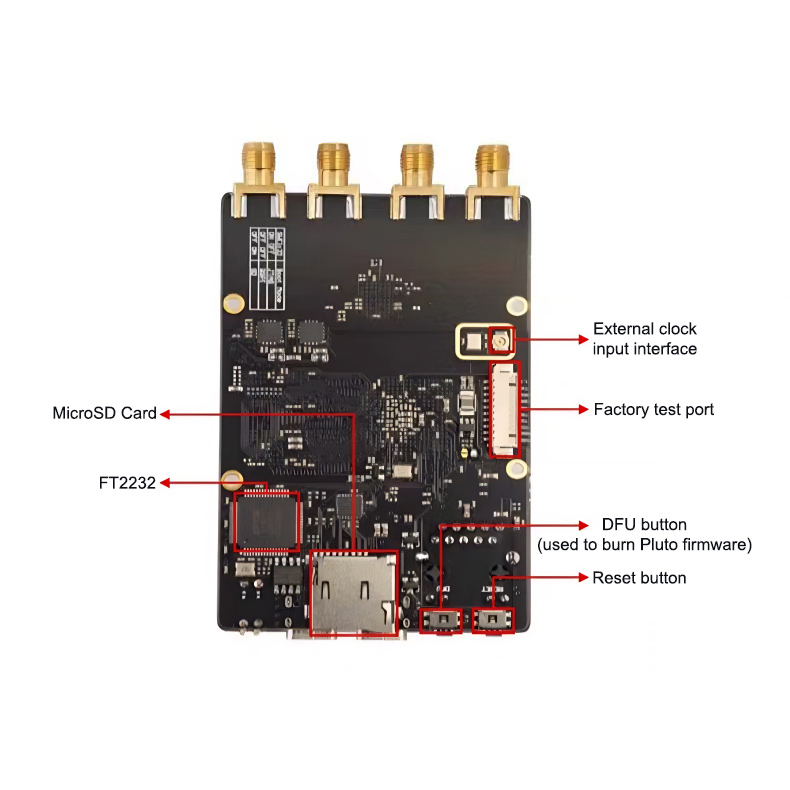

5 Interfaces
* Development is more convenient with the HamGeek HG230, thanks to its 1G Ethernet, SD card, USB-OTG, USB-UART, and USB-JTAG ports.

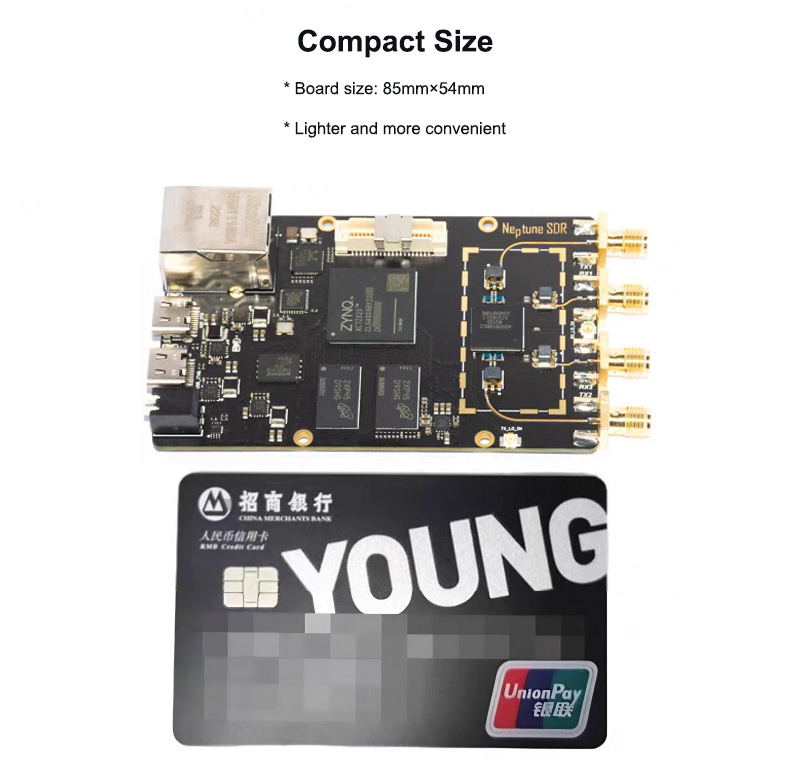

Compact Size
* Board size: 85mm×54mm
* Lighter and more convenient

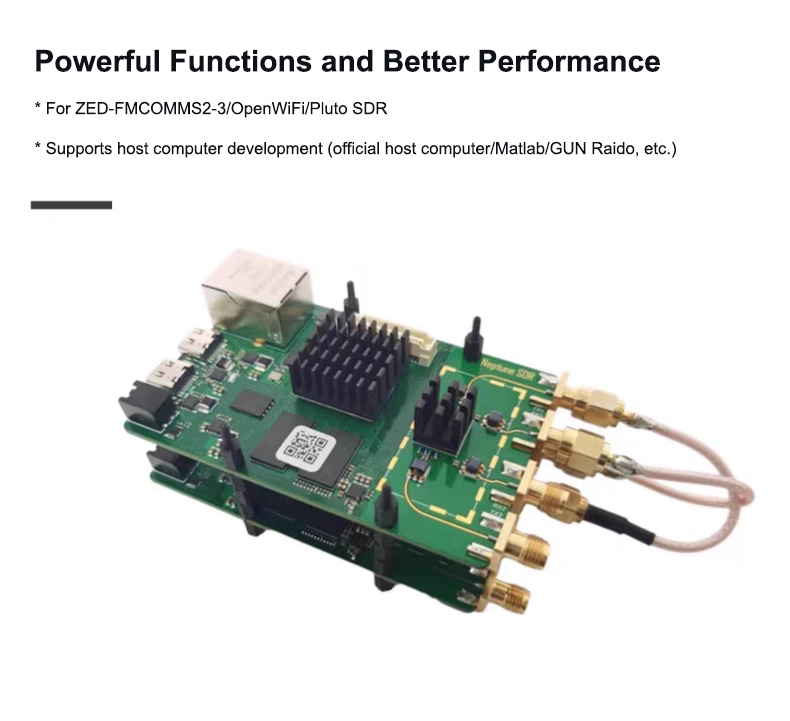

Powerful Functions and Better Performance
* For ZED-FMCOMMS2-3/OpenWiFi/Pluto SDR
* Supports host computer development (official host computer/Matlab/GUN Raido, etc.)

Advantages:
1. RF Section
* RF IC: AD9363
* Frequency Range: 380 MHz – 3.8 GHz (AD9363)
* RF Channels: 2RT, 2×2 MIMO
* Signal Bandwidth: 200 kHz – 20 MHz (AD9363)

2. Data Processing Unit
* ZYNQ SoC: XC7Z020CLG400i, Dual-core Cortex-A9, 766 MHz, 85K Logic Cells
* DDR3 RAM: 1 GB
* QSPI Flash: 32 MB

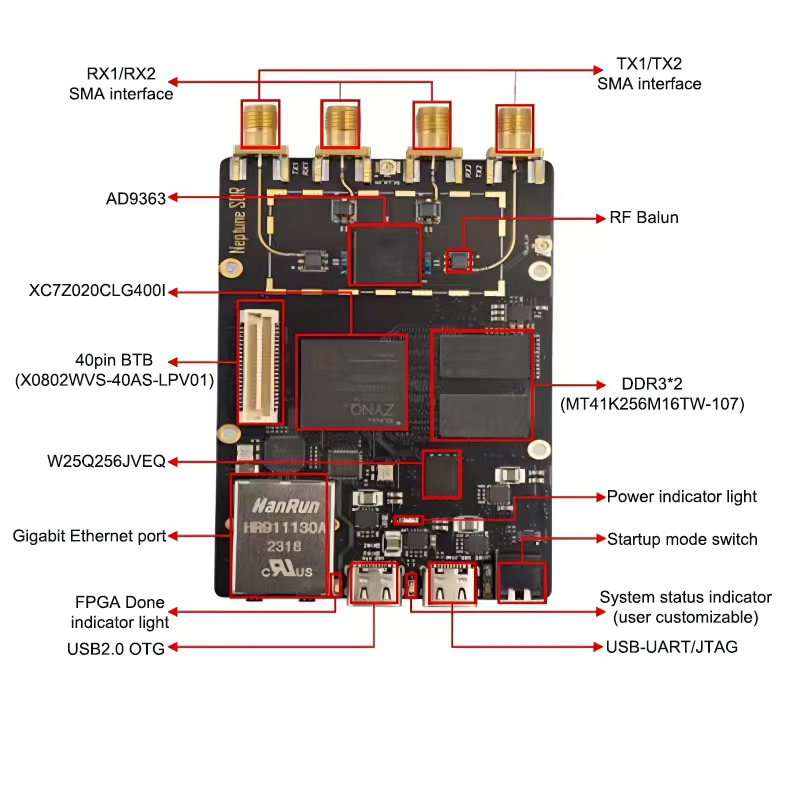

3. Interfaces
* Gigabit Ethernet
* USB2.0 OTG
* SD Card Slot
* Integrated USB-JTAG and USB-UART
* Expansion Interface Supported

4. Clock, Dimensions, Power Supply
* TCXO: 0.5 ppm
* Board Dimensions: 85 × 54 mm, thickness 1.6 mm, weight 38.7 g
* Power Supply: USB-powered

Specifications:
* Brand & Model: HamGeek HG230
* Dimensions: 85mm × 54mm; PCB thickness: 1.6mm
* Weight: 38.7g
* FPGA: ZYNQ-XC7Z020-CLG400
* RF Chip: AD9363
* Memory: 1GB 32-bit DDR3
* Interfaces: 1G Ethernet / SD Card / USB-OTG / USB-UART
* SMA Connectors: 2T2R
* Hardware Frequency Range: 380 MHz – 3800 MHz
* Signal Bandwidth: 200 kHz – 20 MHz
* Number of Channels: 2T2R MIMO
* Baseband Processor: ZYNQ XC7Z020
* Host Interface: 1G Ethernet
* Data Bandwidth with Host (UHD firmware): 26 MSPS
* Data Bandwidth with Host (Burst Sampling): 61.44 MSPS
* API Support: For ADI iiO / Ettus UHD
* Product Features: Designed for professional radio applications and open-source code

Packing List:
* 1 x HamGeek HG230 Development Board

Packaging Details:
* Weight: 0.4kg

Note:
* SD card is not included.
