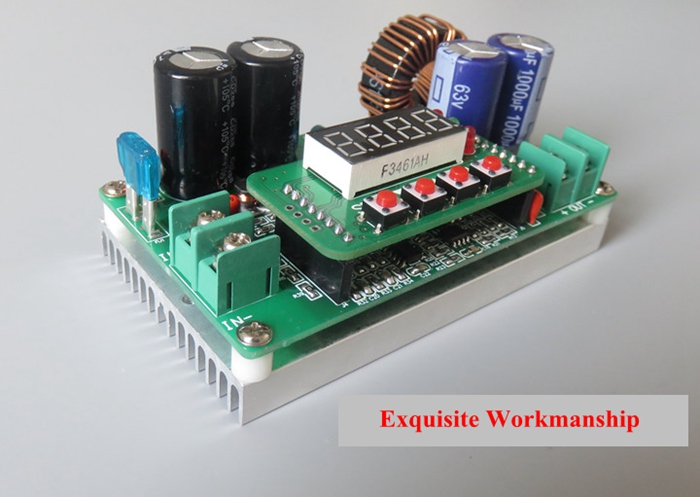

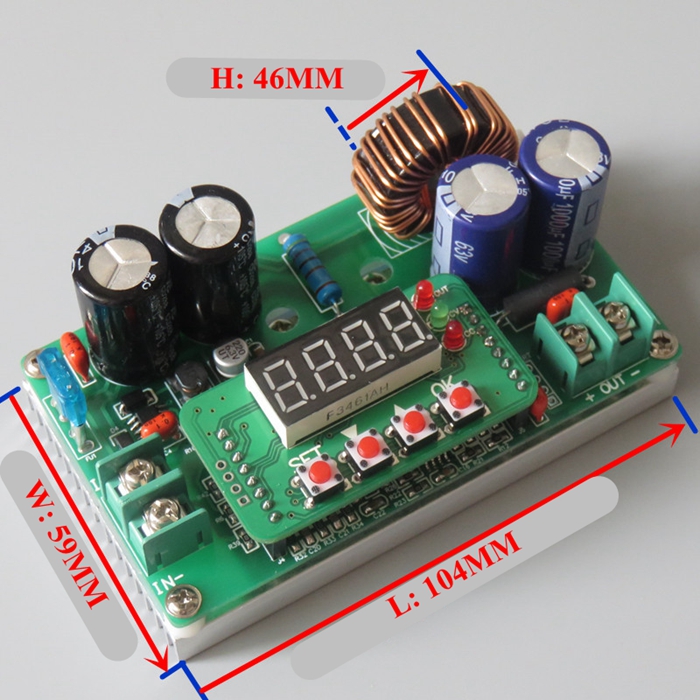

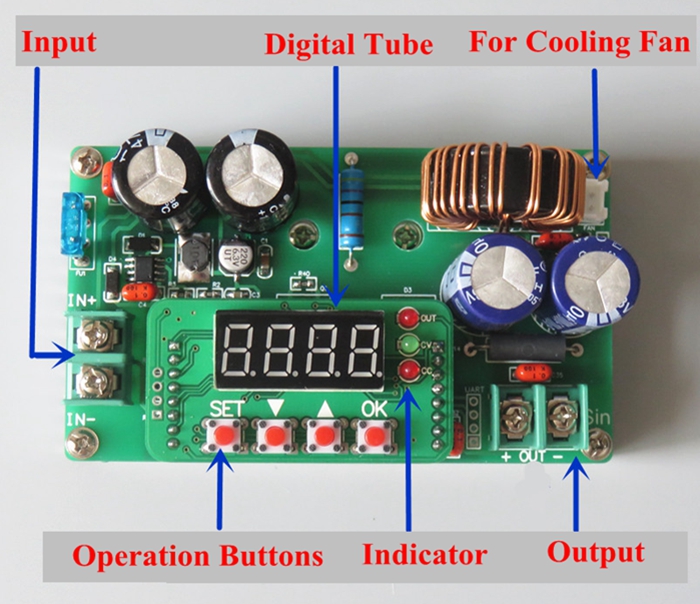

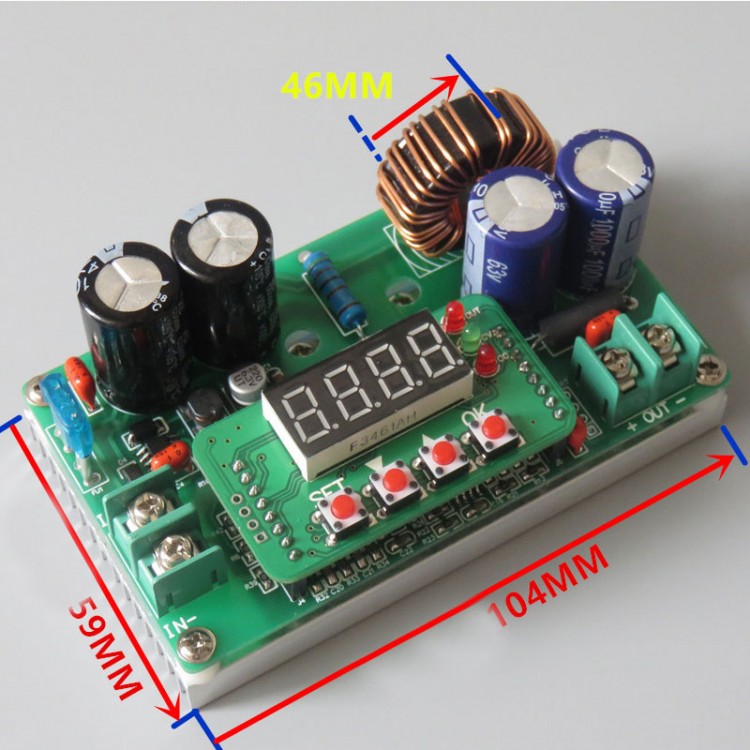

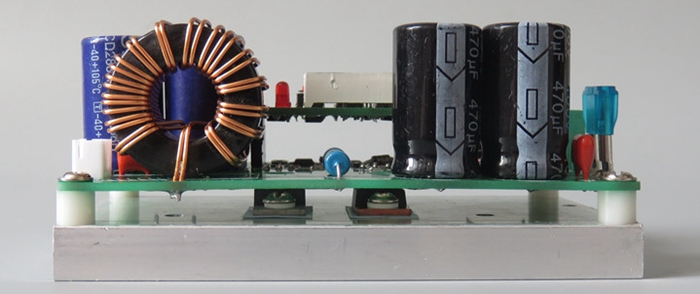

Adjustable 400W CC CV DC-DC Step Down Converter Power Supply Module LCD Driver

Adjustable 400W CC CV DC-DC Step Down Converter Power Supply Module LCD Driver

Features:
- This DKP6008 DC-DC Step Down Buck Module adopts advanced microprocessor control for this buck module. Voltage and current can be adjusted accurately by pressing button; you can adjust it to output constant voltage and current.
- Compared to similar product, this buck module is designed with a compact size and it works efficiently and stably.
 - This DC-DC buck voltage converter input voltage range is DC 6-65V, adjustable output voltage range is DC 0-60V, adjustable output current range is 0-8A, max output power is 400W.
- Constant Current & Voltage: you can adjust its constant output voltage, or constant output current by the button
- Auto Output: this programmable voltage transformer can be set automatic output after power on

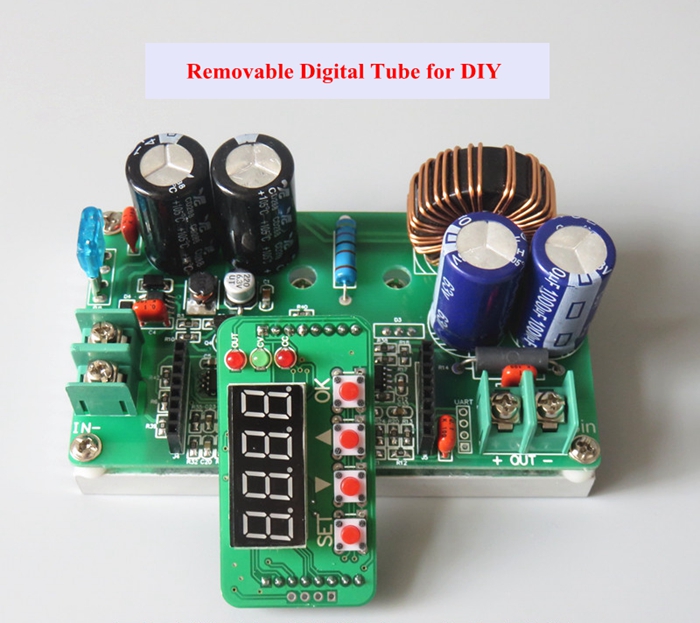

- LCD Display: with digital LCD display, this volt regulator can display real-time voltage, current, capacity and time

Technical Parameters:
- Input Voltage Range: 6V-65V
- Adjustable Output Voltage Range: 0-60V
- Adjustable Output Current Range: 0-8A
- Output Power: 0-400W
- Output Voltage Setting Resolution: 10mV
- Output Current Setting Resolution: 10mA
- Power Supply Effect: CV＜0.5%+10mV, CC<1%+10mA
- Load Effect: CV＜0.5%+10mV, CC<1%+10mA
- Output Ripple: < 40mVpp（input 54V，output 12V，current 5A）
- 100Hz Fluctuation Transmission Ratio: < 1/10000
- Typical Efficiency: 88% (input 54V, output 36V, current 3A)
- Voltage Display Error: ±1%+20mV
- Current Display Error: ±1%+20mA
- Response Time: <50ms
- Save Operation: M0~M9 10 groups of data

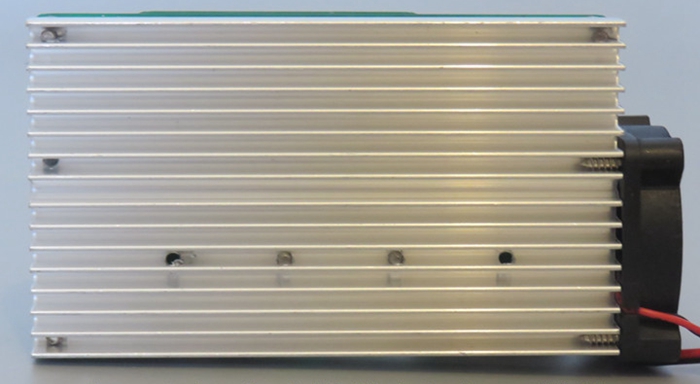

- Cooling Method: Onboard radiator
- Operating Temperature: 0～40°C
- Storage Temperature: -20 to 70°C
- Operating Environment: Indoor use, max humidity 80%

Package Included:
- 1 x DC-DC Buck Converter Module
