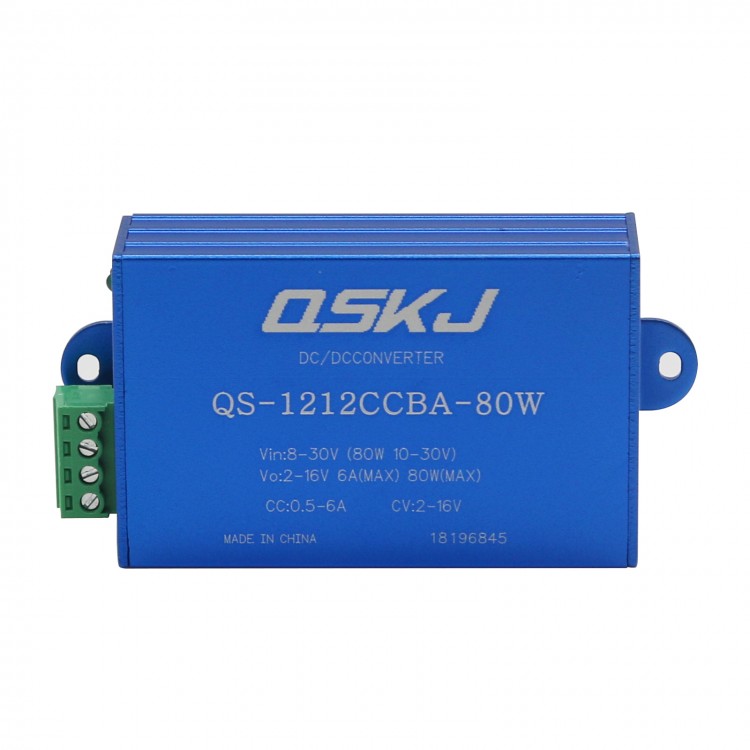

This item for 1pieces of Brand new Vin:8-30V Vout: 2-16V DC Converter Auto Boost Buck 80W Power Supply
- Auto Boost / Buck
- Wide range of input 8-30v
- Stable & High efficient up to 94%
- Powerful max 6A 80Watts
- Adjustable output 2-16v continuously
- All epoxy sealed containers with Waterproof Die-Cast Aluminum Housing;

Description:
- This is a high performance DC to DC Converter (Auto Boost / Buck )with wide range input from 8-30 volts and variable output from 2-16 volts.
- Powerful output up to 80Watts and max. 6 Amps. It can be maintained constant output regularly no matter unstable input voltage.

Specifications:
- Module Properties:              Non-isolated Auto step-up/down module (Boost / Buck with constant current / constant voltage)
- Dimension:                            72 (L) * 42 (W) * 23 (H) mm (Include wire connectors)
- Weight: 50g
- Input voltage:                       8-30V
- Output Voltage:                    2-16V (Auto boost & buck, adjustable)
- Maximum Power:                 80Watts
- Output current:                     0.5-6A (Constant current, adjustable)
- Conversion efficiency:          Up to 94% (O/P voltage higher, the higher the efficiency)
- Standby current:                  45mA
- Input reverse protection:   Yes
- Operating temperature:      Industrial grade (-40 ℃ to +85 ℃) (output power 10W or less)
- Soft Start time:                      500ms
- Full load temperature rise:         40 ℃
- Load regulation:                    ± 2%
- Voltage regulation:               ± 0.5%
- Dynamic response speed:   5% 200uS
- Short Circuit Protection:     Yes, Output current limit protection
- Input voltage protection:    7.7V
- Over Input Protection:          Yes, limit up to 36v
- Operating indicator:             Yes, Green > Normal; Red > the work is extremely or protection
- Input Reverse Protection:   Yes
- Output Ripple:                       20mV, 20M bandwidth
- Installation method:             Fixture with 3mm screw, holes distance is 82mm
- Setting:                                  Pre-set 12v 2.5A (clockwise CC to increase current)

Measurement of Performance:

Application:
- DIY DC power supply
- High-power LED constant current driver
- Primary power for system
- MP3, MP4, Mobile and other devices
- Battery DC converter
- Lithium battery charger
- Solar panels and wind turbines.

Typical Application:
Using for LED constant current driver:
- Make sure operating current and Max operating Voltage of the LED you need to drive.
- Adjust the constant voltage potentiometer to make sure the output Voltage is up to LED Max operating Voltage.
- Use the multi meter in 10A current scale to measure output short-circuit current and adjust the current potentiometer to make sure the output current to the expected LED operating current.
- Connect LED then test again with above sequent (1,2,3,4 steps to connect the power module input and output load does not take LED.)

Using for Battery:
- Make sure of the voltage and current of the battery you need to charge.
- Adjust the constant voltage potentiometer to make the output voltage same to the charge voltage
- Use the multi-meter in 10A current scale to measure output short-circuit current, and adjust the current potentiometer to make sure the output current to the expected charging current value.
- Charge transfer lamp current default value is 0.1 times of the charging current(constant current value)
For lamp current adjustment, please turn potentiometer adjustment;
- Connect battery and trying charge up.
(1,2,3,4 steps to connect the power module input and output load does not take batteries.)

Package include :
- 1 x DC/DC Converter Power Supply Auto Boost Buck 80W CC CV
