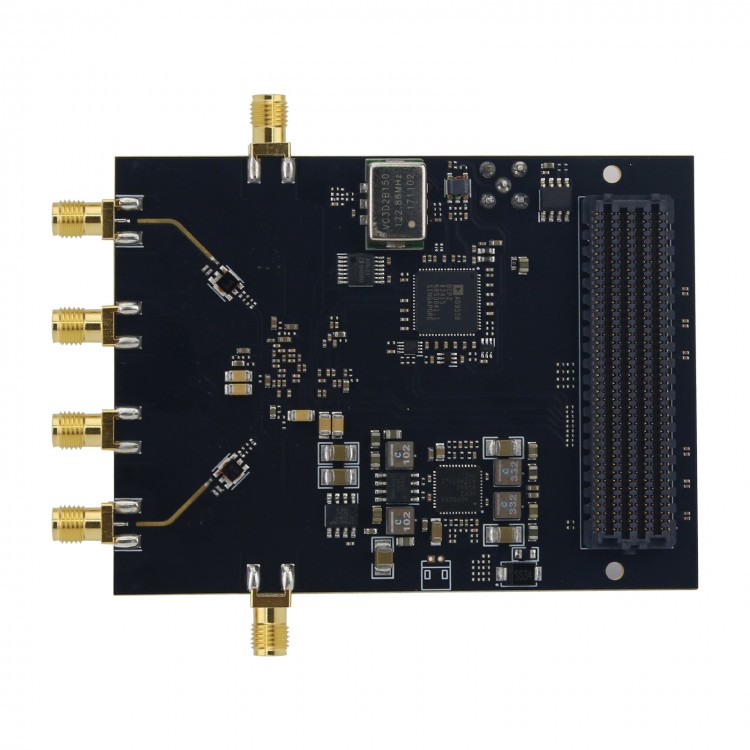

ADRV9379/9009-W/PCBZ ADI Development Board RF Transceiver Compatible with Official ADRV9009
Using Instruction:
1. Write the IMG files from the image folder into an SD card.
2. After programming, copy the files in the zc706_update folder to the BOOT drive and replace the original files.
3. Insert the SD card into the ZC706 card and set it to boot from the SD card.
4. Connect the network cable and set the ZC706 card IP to ifconfig eth0 192.168.1.10 through the serial port.
5. Open the ADRV9009 evaluation software and update the firmware file according to the prompts.
6. Load the HTML file for testing purposes
7. Set the sending waveform and view the receiving waveform (if there are many spurious signals during reception, reduce the receiving gain)
Package Included:
- 1 x Development Board
Note:
- Please contact our customer service for schematic diagram, ZC706 official upper computer testing image and other resources after receiving the product.
