ADS1292R ECG Module ECG Front End Respiration Heart Rate Impedance Acquisition Suitable for STM32

ADS1292R ECG Module ECG Front End Respiration Heart Rate Impedance Acquisition Suitable for STM32

Description:
ADS1292R is a dual-channel, 24-bit analog front end with low power consumption. It is used for bio-potential measurements. The ECG front end is particularly suitable for medical instrumentation and high-precision data acquisition. The board is added with pin function and Bluetooth wireless transmission, which is free from the shackles of measurement, making the experiment simple and enabling easy application.

Features:
- Two low-noise PGAs and two high-resolution ADCs
- Maximum power consumption: 335μW/channel
- Input-referred noise: 8μVPP
- Data rate: 125SPS to 8kSPS
- CMRR: 120dB
- Programmable gain
- Supported power supplies: uni-polar or bipolar. Analog: 2.7V to 5.25V; Digital: 1.7V to 3.6V
- Built-in right leg drive amplifier, lead-off detection and test signals
- Integrated respiration impedance measurement
- SPI-compatible serial interface
- Operating temperature range: –40°C to +85°C

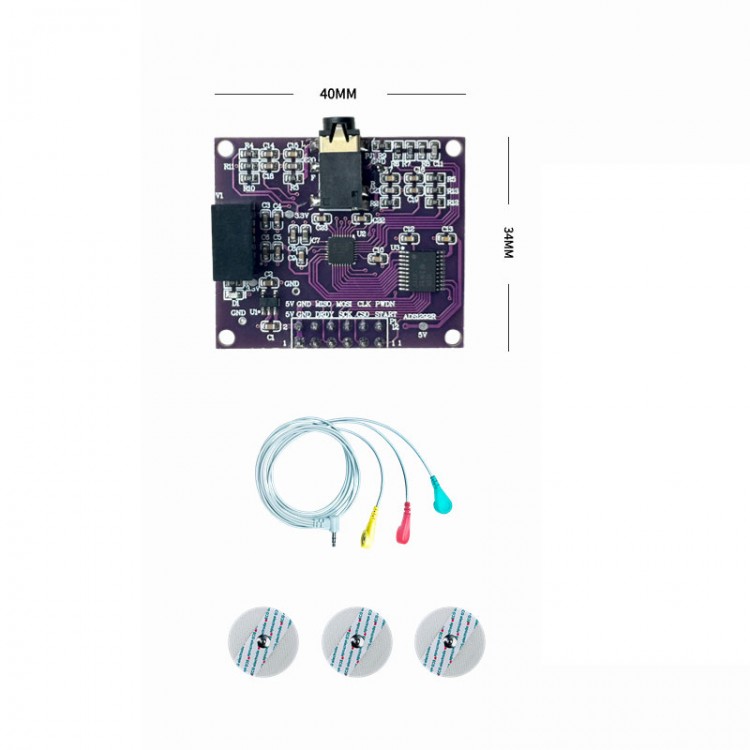

Package Included:
- 1 x Board
- 1 x Electrode cable
- 3 x Stick-on electrodes

Packaging Details:
- G.W.: 0.3kg

Notice:
- This device is NOT intended to be used in/as medical diagnostic equipment. This is intended to be used solely for evaluation and research purposes only.

Attention:
1. Place the electrodes as close to the heart as possible.
2. Ensure the accurate location of RA and LA.
3. Keep your body still during the test.
4. Try to use disposable electrodes and avoid reuse.
5. The contact surface should be cleaned to ensure good contact with the body.
6. Pay attention to waterproofing and do not short circuit.
