ADS5012H Handheld Digital Oscilloscope 100MHz 500MSa/s with 2.4" Color TFT Screen Black & Yellow
Features:
- Intelligent anti-burning, 1X Can withstand up to 600V withstand voltage
- Afterglow display technology
- 2.4 inch color display screen with IPS technology
- 100MHz analog bandwidth @ 500MSa/s sampling rate (1X = 5MHz, 10X = 100MHz)
- One-button waveform storage
- Built-in 64M storage space, the maximum storage of 2000 waveform pictures
- Powerful waveform file manager, support thumbnail browsing, viewing, details view, flip, delete and other functions
- High measurement voltage range, 1X can measure 0 ~ 80 V, 10X can measure 0 ~ 800V
- Up to 12 parameters measurement: VPP, VP, Vmax, Vmin, Vavg, Vrms, Frequent, Duty+, Duty-, Time+, Time-, Time
- At any time, the waveform display (pause function) is frozen
- Equipped with high efficiency One-button AUTO
- Complete triggering function (single, normal, automatic)
- Fully charged for 12 hours of continuous use
- Screen brightness adjustment
- Memory compression technology, waveform refresh screen does not flicker
- Anti-slip anti-drop silicone sleeve
- Ultra small volume, easy to carry
Specifications:
- Analog band width: 100MHz
- Maximum real time sampling rate: 500MS/s
- Vertical sensitivity: 50 mV/div ~ 100 V/div
- Horizontal time base range: 50S/div ~ 6nS/div
- Maximum test voltage: 80 V (1X probe), 800 V (10X probe)
- Storage depth: 128KB
- Input resistance: 1M
- ADC precision: 8bits
- Coupling mode: AC/DC
- Trigger mode: Single, Normal, Auto
- Trigger edge: Ascending/descending edge
- External trigger voltage 0 – 80 V
- Display: 2.4 inch - 320*240 - IPS process
- Size: 114mm x 74mm x 33mm
- Weight: 300g

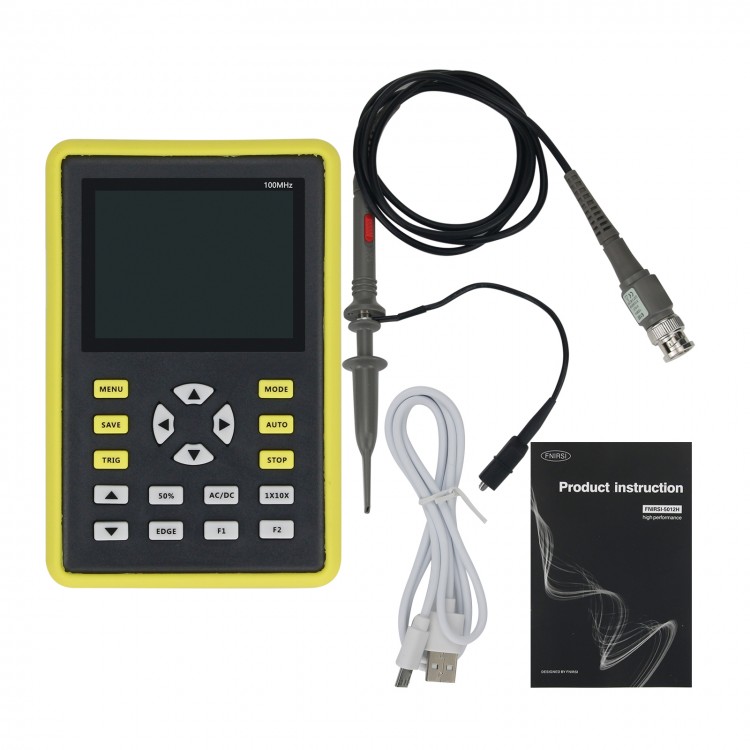

Package Included:
- 1 x ADS5012H Oscilloscope
- 1 x 100MHz Probe (1X and 10X)
- 1 x Micro USB Data Cable
- 1 x User Manual
- 1 x Storage Case
