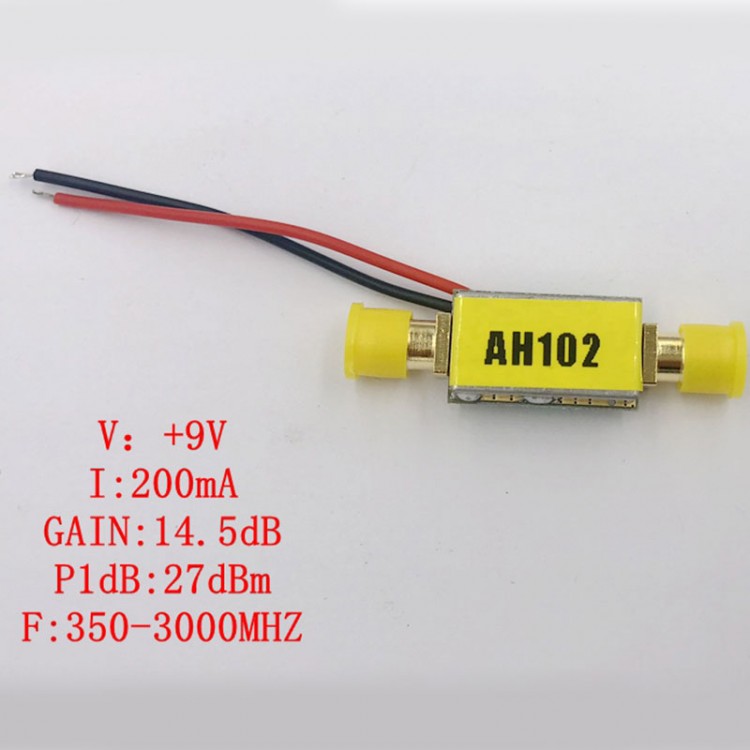

AH102 350-3000MHz Amplifier Module Medium Power RF Board Fixed Gain 13dB Single Power Supply

AH102 350-3000MHz Amplifier Module Medium Power RF Board Fixed Gain 13dB Single Power Supply

Description:
The AH102A is a medium power gain block that offers excellent dynamic range in a low-cost surface mount package. The combination of a single supply voltage and an intemally matched device makes it ideal for both narrow and broadband applications.
Superior thermal design allows the product to achieve +46dBm IP3 performance at a mounting temperature of +85℃ with an associated MTTF of greater than 1000 years. The AH102A is available in the emvironmentally-fnendly lead.free/green/RoHS-compliant SOT-89 package.
The broadband amplifier uses a high reliability GaAs MESFET technology and is targeted for applications where high linearity is required. It is well suited for various current and next generation wireless technologies such as GPRS. GSM, CDMA and W-CDMA. In addition the, the AH102A will work for other applications within the 250 to 3000 MHZ frequency range such as broadband wireless.

Parameter:
Power supply: 9V (200mA)
Gain: 14.5DB@0.8GHz
Size: length * width * height (40mm * 12mm * 10mm),  includes protruding SMA interface; length * width * height (20mm * 12mm * 6mm), not includes SMA interface
Noise figure: 3.8dB@800MHz
P1dB = 27dBm @ 800MHz
Working frequency: 350-3000MHz
Input and output impedance: 50Ω

Features:
350-3000MHz.
+46 dBm Output IP3
14.5 dB Gain
+27 dBm P1dB
MTTF>1000 Years
Internally Matched
Single +9 V Supply
Lead-free/Green/RoHS-compliant SOT-89 Package

Applications:
Mobile Infrastructure
W-LAN/ISM/WLL/RFID
Broadband Wireless
PowerAmp Predistortion Circuitry

Package Included:
1 x Amplifier Module
