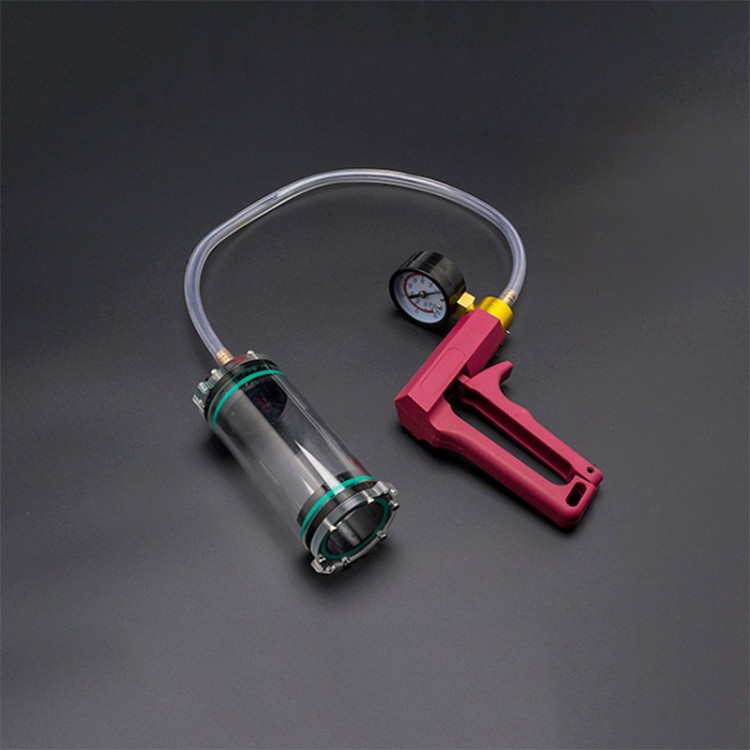

Air Tightness Tester Kit Vacuum Pump + M10 Air Nozzle Manual Test Tool for Underwater Robot Testing
Description:
This kit is used to test the tightness of the sealed cabin.
Difference Between Air Tightness Test and Pressure Test:
-After the sealed cabin is transported or placed for a long time, the sealing performance needs to be checked. The air tightness test method can be used to detect whether the assembly has poor sealing. Usually, the air tightness test is required before the robot is launched to ensure the sealing condition. Suppressing is used to test the pressure resistance capacity of materials and structures. The air tightness test is a test performed after assembly or transportation. It cannot represent the pressure resistance capacity, but only indicates whether the sealing effect is up to standard.
-It is also suitable for detecting vacuum-driven components on cars and trucks, including the advance mechanism of the distributor, heating and boards, PCV and EGR valves, headlight cover doors and exchange regulators, release brake fluid pumping units, replacement Automobile/motorcycle brake fluid, can be operated by one person. The connector is suitable for all automobile brake systems. The connector is equipped with abundant and accurate vacuum pressure measurement.
Features:
-The size is 25×21x6cm
-Rich interface configuration
-Copper vacuum pump body and cover
-Accurate vacuum test meter

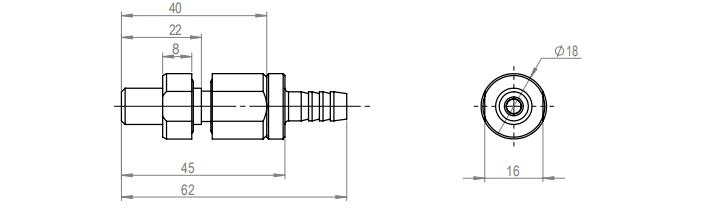

M10 Air Nozzle Size:
Instructions for use: Insert the trachea and copper head as shown in the diagram. Before inserting, check the copper head sealing ring and apply a proper amount of grease, set the manual vacuum pump to 15in.Hg, and let it stand for 10-20 minutes. If the value is still between 14-15in.Hg, it means that the air tightness is good; if less than 14in.Hg, indicating poor air tightness. After use, press the pressure relief switch of the manual vacuum pump, pull out the copper head, and screw on the plug.
Package List:
-1 x Vacuum Pump Kit
-1 x M10 Screws Kit
-1 x M10 Air Nozzle
-1 x M10 Plug
