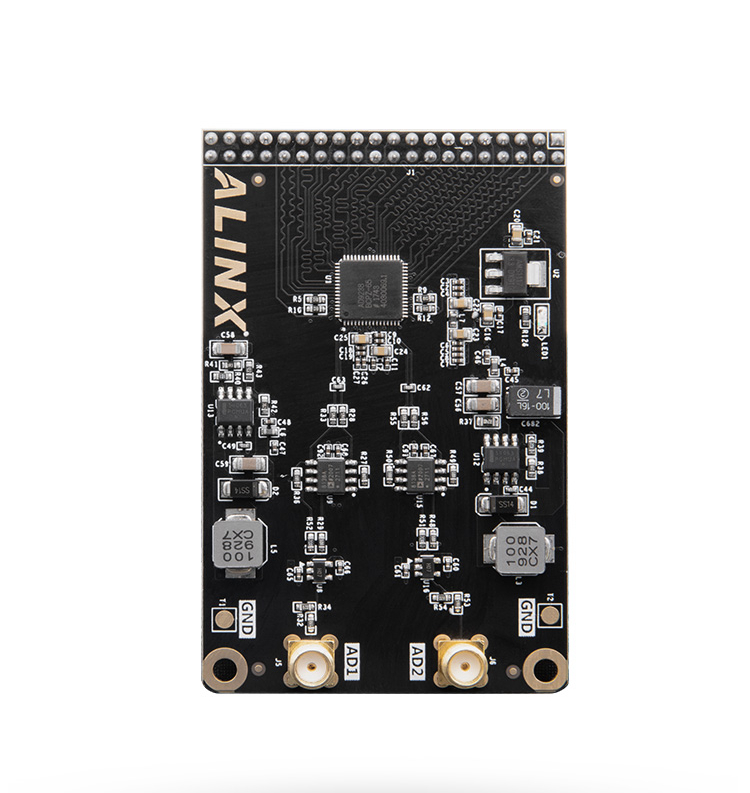

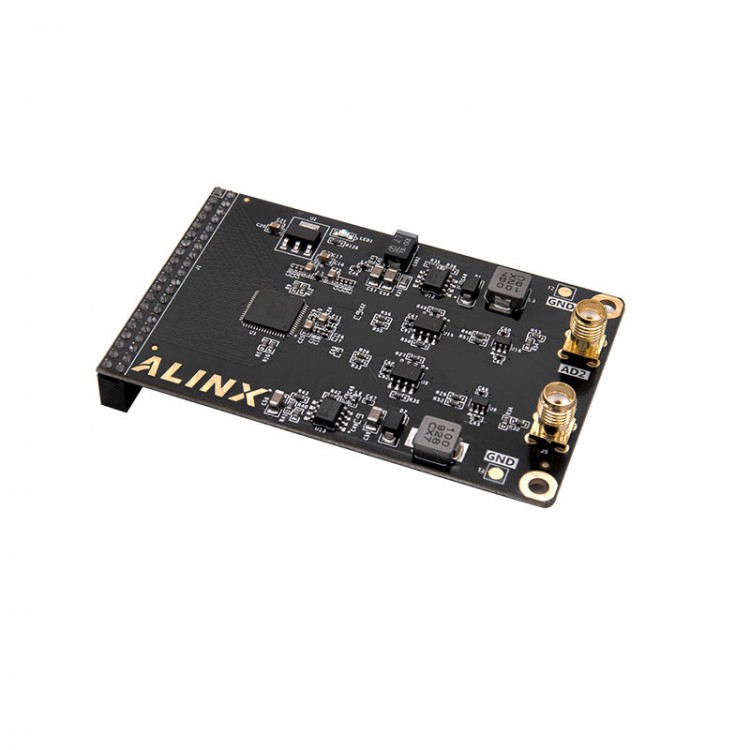

ALINX AN9238 2-Channel AD Module Analog Signal to Digital Signal Module for FPGA Development Board
Description:
12Bit analog signal to digital signal module with 2-channel 65MSPS. It support the conversion of 2-channel AD input.
Specifications:
- AD conversion chip: One AD9238
- AD conversion channel: 2 channels
- AD sample rate: 65MSPS
- AD sampled data bits: 12 bits
- Level standard of digital interface: +3.3V CMOS level
- AD analog signal input: -5V to +5V
- Analog signal input interface: SMA interface
- Measurement accuracy: about 10mV
- Operating temperature: -40°C to 85°C
Package Included:
- 1 x Module
