AM2305 Electronic Digital Temperature Humidity Sensor High Precision Probe

Availability: In stock, usually dispatched in 1 business day

  • Price:$21.81
  • Price in reward points: 218 Reward Points: 2
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $21.37 $20.94 $20.28 $19.41 Contact US
Quantity:

AM2305 Electronic Digital Temperature Humidity Sensor High Precision Probe

Description:

AM2305 is a digital temperature and humidity module. It is designed with calibrated digital signal output. Its digital module acquisition technology and temperature and humidity sensing technology ensure high reliability and excellent long-term stability.

Features:
- Enable wall-mounted and tube-style installation ways
- Breathable & Dust-proof Design: can effectively protect the circuit board well
- Super lower power consumption
- Interchangeable
- Long transmission distance
- Automatic calibration
- Adopted capacitive humidity sensor

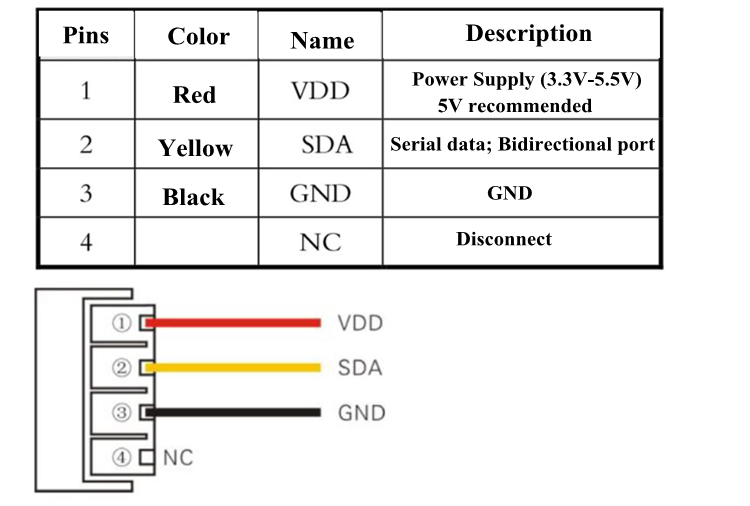

- Standard digital single bus output
- Excellent stability for a long time
- High precision temperature measuring component

Application:
- HVAC, equipment test and inspection, consumer goods, automobiles, automatic controls, data loggers, weather stations, home appliances, humidity regulators, medical and other related humidity detection controls, etc.

Technical Parameters:
- Temperature Measuring Range: -40℃ to 80℃
- Humidity Measuring Range: 0 to 99.9% RH
- Accuracy (@25℃):
  Temperature: ±0.3℃
  Humidity: ±2% RH (@10 to 90% RH)
- Resolution:
  Temperature: 0.1℃
  Humidity: 0.1%RH
- Attenuation Value: Temperature <1℃/Year; Humidity <1% RH/Year
- Sensor Type: High Precision Temperature Humidity Sensor
- Response Time: Temperature: 5s; Humidity: 5s 1/e (63%)
- Working Temperature: -40℃ to 80℃
- Power Supply: DC 3.3 to 5.5V
- Shell Material: PC Plastic
- Weight: 25g

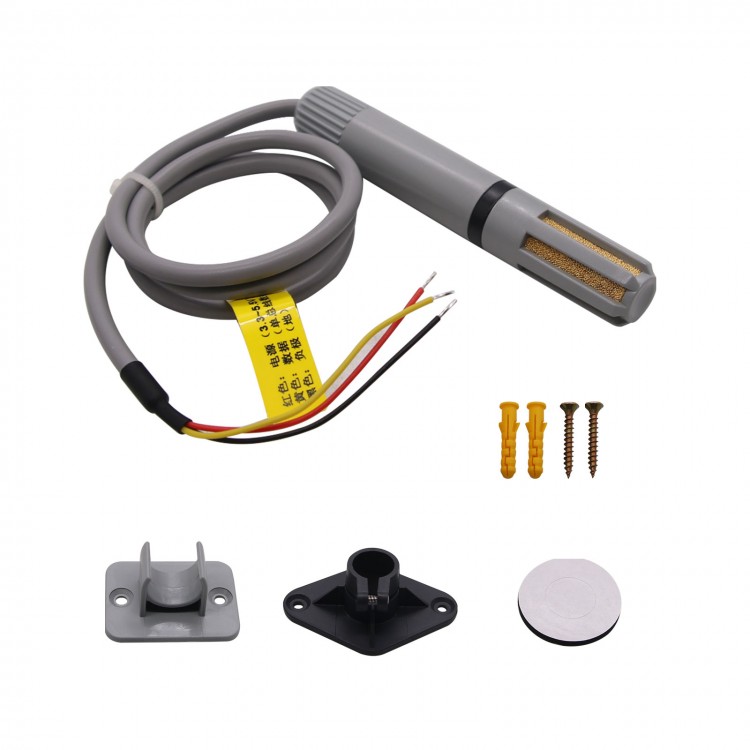

Package Included:
- 1 x AM2305 Temperature Humidity Sensor
- 1 x Wall-Mounted Part
- 1 x Tube-Mounted Part
- 2 x Fixing Screws
