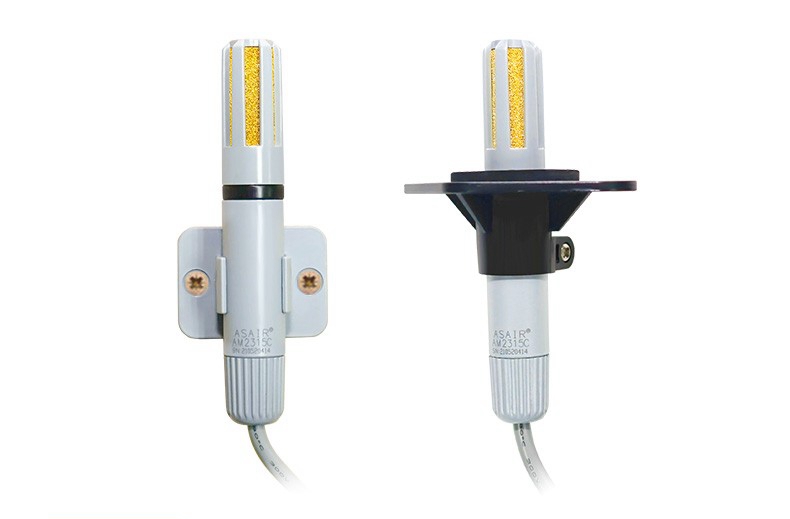

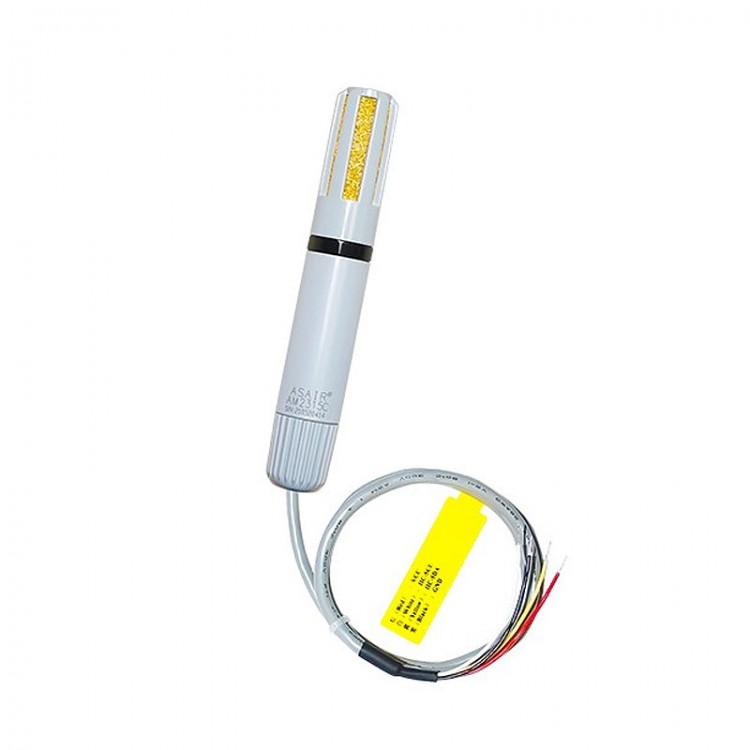

AM2315C Wall-mounted Temperature and Humidity Sensor High Precision Semiconductor Capacitive Type Sensor
Description:
- AM2315C is a semiconductor capacitive temperature and humidity sensor, which is a new upgraded product of AM2305. A newly designed ASIC special chip, improved MEMS semiconductor capacitive humidity sensing element and a standard temperature sensing element are configured inside the sensor. After improvement, the product has more excellent long-term stability and higher reliability. In the extremely harsh environment of high temperature and high humidity, It can also maintain excellent performance. AM2315C uses standard IIC interface, outputs calibrated digital signals, and responds quickly. Each sensor is tested and calibrated in an extremely accurate humidity calibration room when leaving the factory, to ensure that the product has super high quality and excellent performance when delivered.
Application:
- AM2315C is widely used in consumer, electronic, medical, automotive, industrial, meteorological and other fields, such as HVAC, dehumidifier, refrigerator and other household appliances, testing and detection equipment and other related temperature and humidity detection and control products.

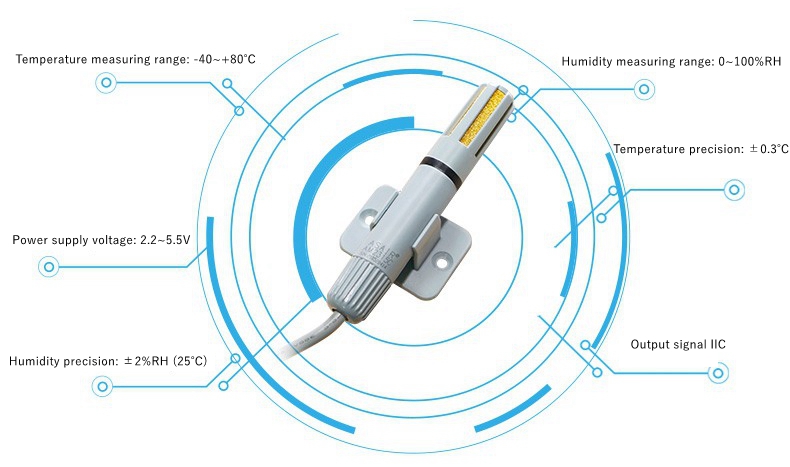

Parameter:
- Model: AM2315C
- Measurement range: temperature: -40~+80℃; humidity: 0~100%RH

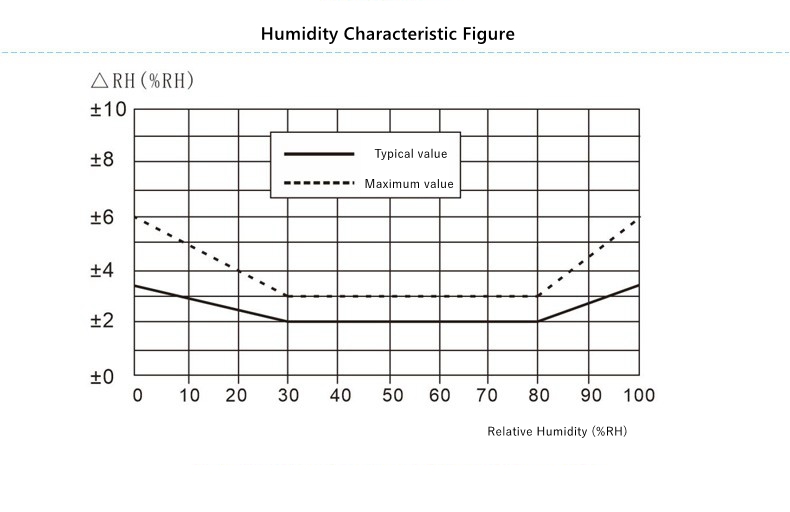

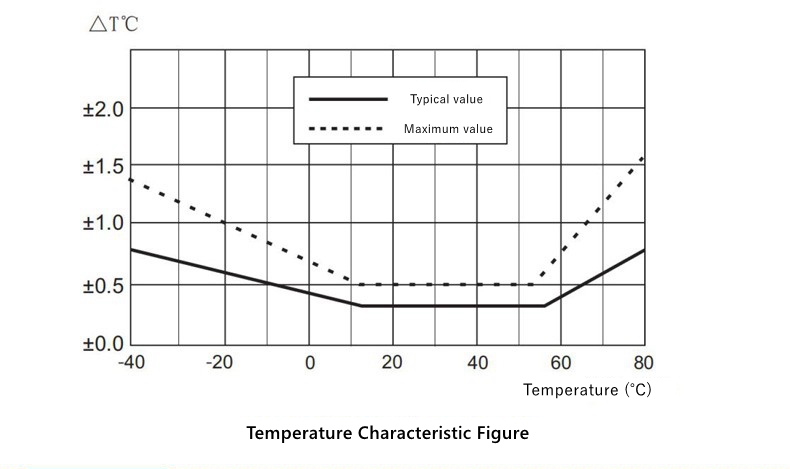

- Precision: temperature: ±0.3℃; humidity: ±2%RH (25℃)
- Resolution: temperature: 0.01℃; humidity: 0.024%RH
- Repeatability: temperature: ±0.1℃; humidity: ±0.1%RH
- Sensor: Capacitive humidity sensor
- Working voltage: DC 2.2V~5.5V
- Power consumption: 0.8uW for dormancy; 3.2mW for measurement

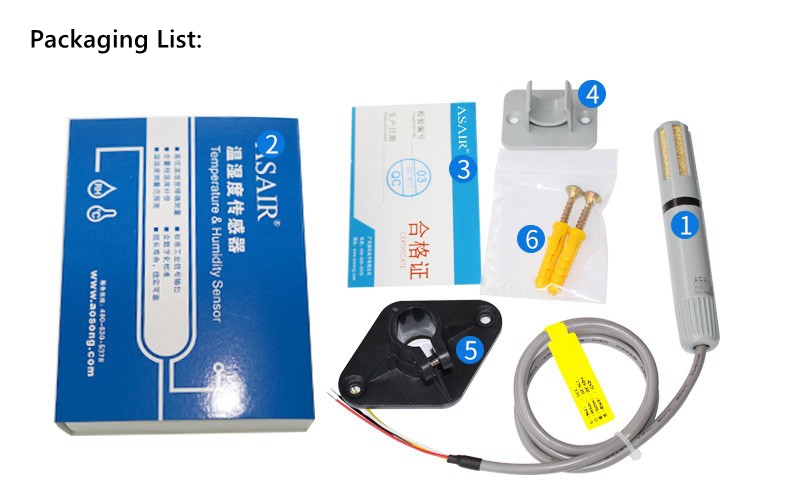

Package Included:

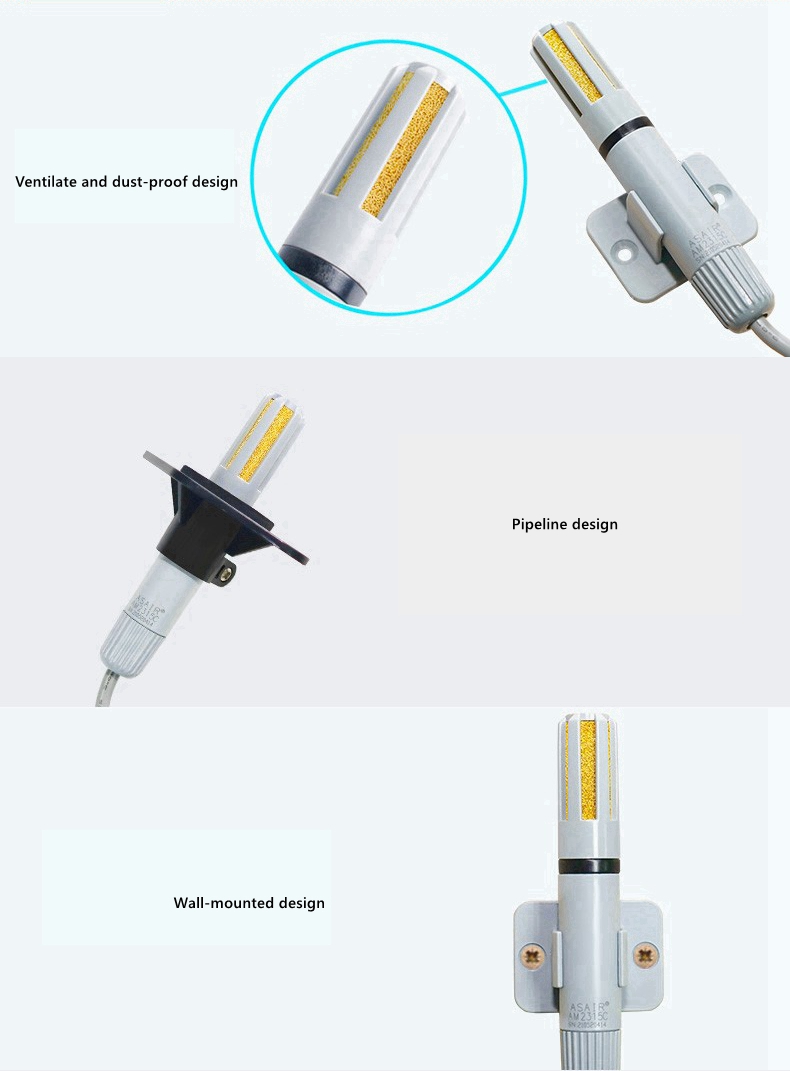

- 1 x AM2315C Temperature and Humidity Sensor Kit
- 2 x Fix screws
- 1 x Holder
- 1 x Flange Pipe Sleeve
- 1 x Packaging Box
- 1 x Certification
Note:
- The power supply voltage of the host MCU must be consistent with the sensor during the circuit use of the product;
- To further improve the reliability of the system, the sensor power supply can be controlled.
- When the system is powered on, the VDD of the sensor shall be powered on first, and the high level of SCL and SDA can be set after 5ms.
