AM2306 Outdoor Digital Temperature Humidity Sensor Hygrometer Sensor Wall Mounted Type
Description:
AM2306 humidity-sensitive capacitor digital temperature and humidity module is a temperature and humidity composite sensor with calibrated digital signal output. It uses special digital module acquisition technology and temperature and humidity sensing technology to ensure high reliability and excellent long-term stability. The product features excellent quality, ultra-fast response, strong anti-interference ability, and extremely cost-effective performance.
Technical Parameters:
Relative Humidity:
- Resolution: 0.1% RH, 16Bit
- Repeatability: ±1% RH
- Accuracy: 25℃, ±2% RH; -40 to 80℃, ±5% RH
- Interchangeability: fully interchangeable
- Response time: 1/e (63%) 25 ℃, 6s; 1m/s air, 6s
- Hysteresis: < ±0.3% RH
- Long-term stability: < ±0.5% RH/yr
Temperature:
- Resolution: 0.1% RH, 16Bit
- Repeatability: ±0.2℃
- Range: 25℃, ±0.3℃; -40 to 80℃, ±1℃
- Response time: 1/e (63%), 10s
Electrical Characteristics:
- Power supply voltage: DC 3.5-5.5V
- Power supply current: measure 0.3mA; standby 60μA
- Sampling period: more than 2 seconds each time
Features:
- Low power consumption
- High precision
- Fully interchangeable
- Long transmission distance
- Long-term stability
- Automated calibration
- Capacitive humidity sensor
- Digital single bus output
- Waterproof design
- Stable use
Applications:
For HVAC, dehumidifiers, testing and testing equipment, consumer products, automobiles, automatic control, data recorders, home appliances, humidity regulators, medical, weather stations, and other related humidity testing and control.
Package Included:
- 1 x Set of Temperature Humidity Sensor

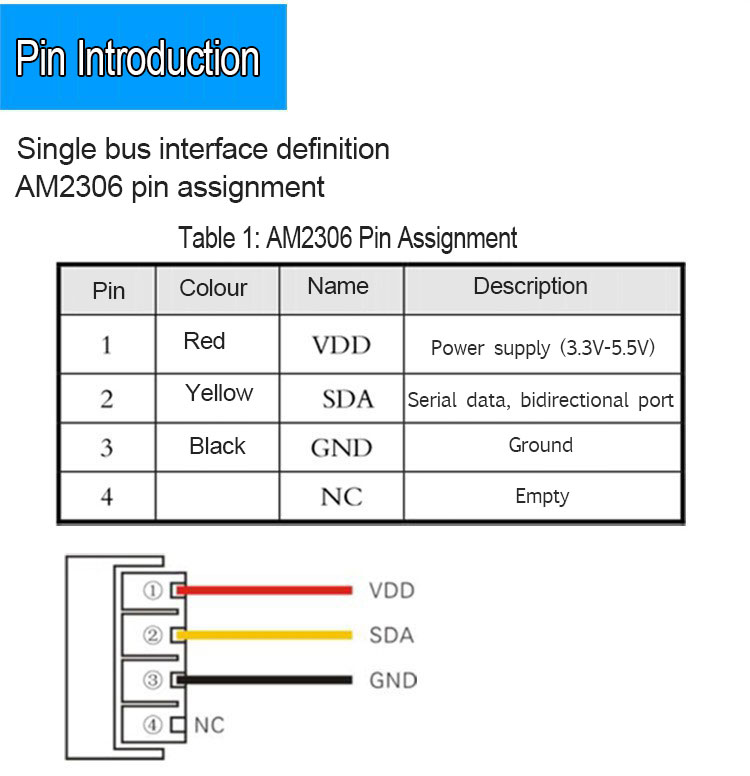

Power supply pin (VDD GND). The power supply voltage range of AM2306 is 3.3V-5.5V, and the recommended supply voltage is 5V. Serial data (SDA). The SDA pin has a three-state structure and is used to read and write sensor data. For the specific communication sequence, see the detailed description of the communication protocol.
