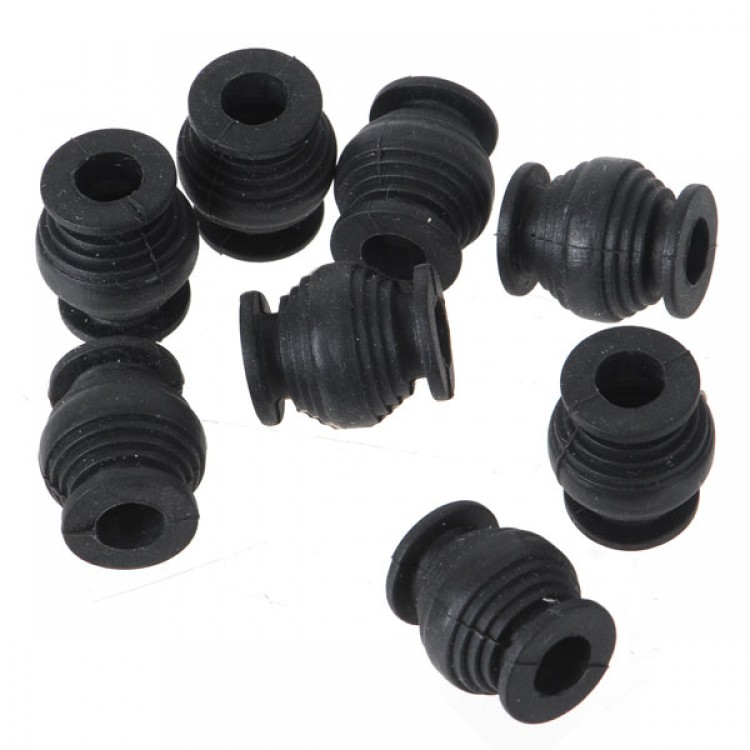

Anti-Vibration Sphere AV Ball Silicone ball mount for PTZ Installation
Descriptions:
Cooperate Anti-Vibration Frame Use ensure a significant reduction of vibrations.
- Silicone balls mounts are an effective implement for camera mounts.
- Designed using supple material, they ensure a significant reduction of vibrations.
-1 AV ball single load weight 100g
single resonance elimination of proportion:
170Khz absorb 90%
120Khz absorb 82%
85Khz absorb 60%
- 2 AV ball load weight 150g
two resonant eliminate proportion:
170khz absorb 88%
120Khz absorb 88%
85Khz absorb 78%;
Eliminate vibration data: (reference value)
- 8 AV ball 400g: 160kHz eliminate 85% 120Khz eliminate 90% 80KHZ canceller 80%
- 8 AV ball 800g: 160kHz to eliminate 92% 120Khz canceller 92%, 80KHZ canceller 90%
- 8 AV ball 1200g: 160khz eliminate 97%, the 120Khz eliminate 95% 80Khz eliminate 93%
Note: 160Khz helicopter vibration frequency segment;
120Khz small Quadcopter vibration frequency segment;
80Khz large multi-rotor vibration frequency segment;
Scope of delivery:
- 1 Silicone ball mount
