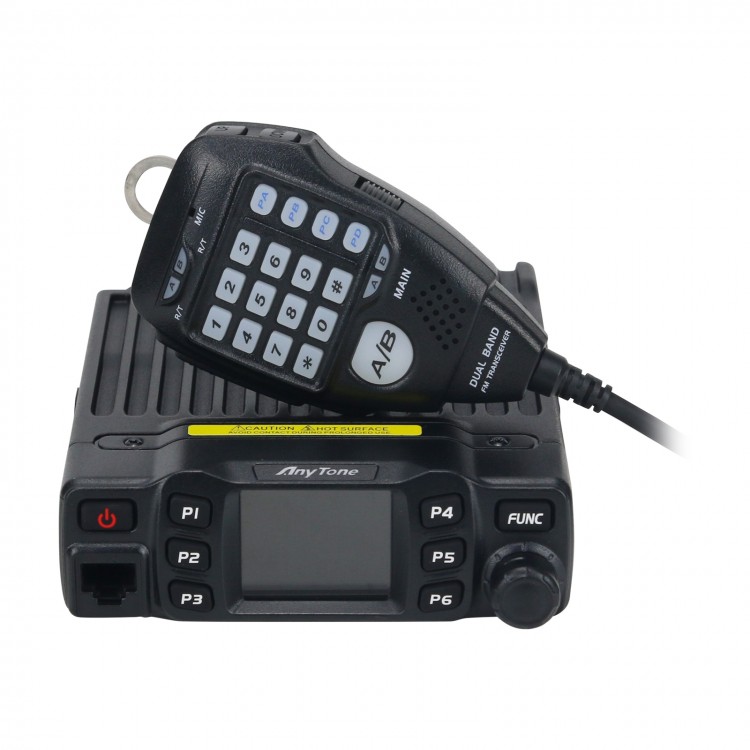

AnyTone AT-778UV Walkie Talkie Dual Band Transceiver Mini Mobile Radio VHF 136-174MHz UHF 400-490MHz

AnyTone AT-778UV Walkie Talkie Dual Band Transceiver Mini Mobile Radio VHF 136-174MHz UHF 400-490MHz

Specification:
Frequency Range: TX: 144-146MHz (EXP: 136-174MHz); 430-440MHz (EXP: 400-490MHz)
RX: 103-120MHz (AM/FM); 220-260MHz (FM); 400-523MHz (FM); 350-399.995MHz (FM)
Channel: 758 channels
Channel Spacing: 25KHz (wide band); 20K (medium band); 12.5K (narrow band)
Phase-locked Step: 2.5KHz, 5KHz, 6.25KHz, 10KHz, 12.5KHz, 15KHz, 20KHz, 25KHz, 30KHz, 50KHz
Working Voltage: 13.8V DC ±15%
Squelch Mode: carrier/CTCSS/DCS/5Tone/2Tone/DTMF
Frequency Stability: ±2.5ppm
Working Temperature: -20℃~60℃

Receiver:
Sensitivity (12dB SINAD): wide band: ≦0.25µV; narrow band: ≦0.35µV
Adjacent Channel Selectivity: wide band: ≧70dB; narrowband: ≧60dB
Signal to Noise Ratio: wide band: ≧45dB; narrow band: ≧40dB
Audio Response: +1～-3dB(0.3～3KHz), narrow band:+1～-3dB(0.3～2.55KHz)
Audio Distortion: ≦5%
Audio Output Power: >2W @ 10%

Transmitter:
Output Power: wide band: 50W/25W/10W/5W (VHF); narrow band: 40W/25W/10W/5W (UHF)
Modulation Method: wide band: 16KΦF3E; narrow band: 11KΦF3E
Adjacent Channel Power: wide band: ≧70dB; narrow band: ≧60dB
SNR: wide band: ≧40dB; narrow band: ≧36dB
Audio Response: wide band: +1～-3dB(0.3～3KHz); narrow band:+1～-3dB(0.3～2.55KHz)
Harmonious Wave: ≧70dB
Audio Distortion: ≦5%

Features:
-Adopt high-quality materials and processes and good heat dissipation to ensure long-term stable operation of the machine.
- Amateur and professional two different working modes are available .
-Different bandwidth can be set on each channel, wide band 25K, medium band 20K, narrowband 12.5K.
-With 200 programmable memory channels, the name of the channel can be edited for identification.
-Frequency step 2.5K, 5K, 6.25K, 10K, 12.5K, 20K, 25K, 30K and 50K.
-Different CTCSS/DCS signaling can be set for each channel, reject unnecessary calls from other stations.
-Single-channel dual-waiting operation mode, independent noise control.
-TFT LCD display, reasonable key layout, easy to operate.
-Custom editing of key functions of host and walkie talkie.
-Various scanning functions, and with CTCSS/DCS scanning function.
-CTCSS/DCS decoding function.
-Flexible function menu and PC programming software.
-Power supply voltage protection.
-Timeout timer function.
-Host and walkie talkie backlight brightness adjustment.
-Auto start and manual start.
-Host and hand microphone keyboard lock function.

Package List:
-1 x AT-778UV Host
-1 x Microphone
-1 x Mobile Mounting Bracket
-1 x DC Power Cable with Fuse Holder
-1 x Hardware Kit for Bracket
-1 Pair of Spare Fuse
-1 x Manual
