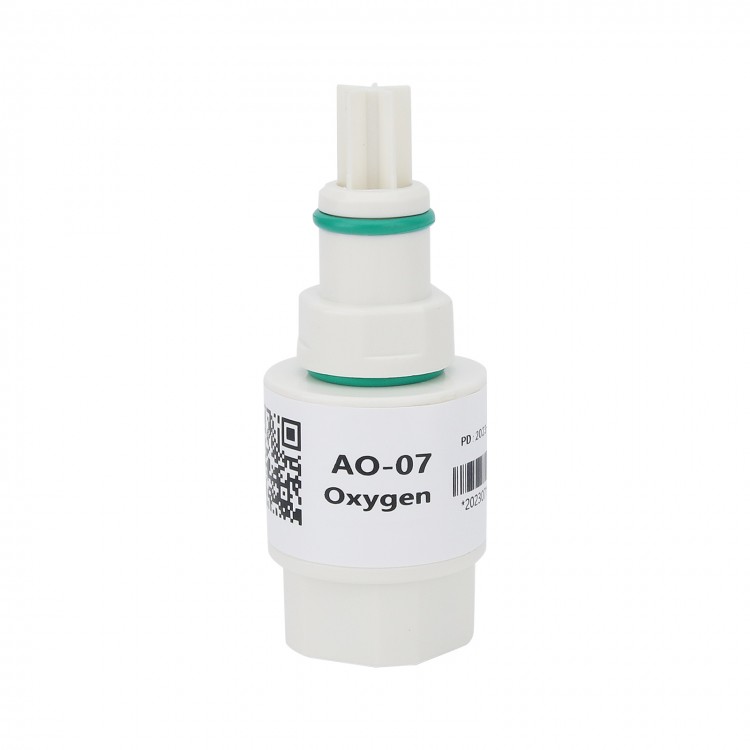

AO-07 Oxygen Sensor Module High Precision Oxygen Sensor Module for Medical Ventilator Anesthesia Machine Detector for ASAIR
Description:
- The oxygen sensor AO-07 is designed with a molded body and has the characteristics of accurate monitoring, fast response and long service life after temperature compensation. It conforms to CE, ROHS and REACH standards and is widely used in the medical, aquaculture, industry and life fields such as breathing machines, anesthesia machines, oxygen generators, incubators, air quality detectors, etc.
Application:
- Oxygen sensor AO-07 is a device for measuring oxygen concentration, which can be used in the following equipment: ventilator, anesthesia machine, oxygen generator, incubator, air quality detector.

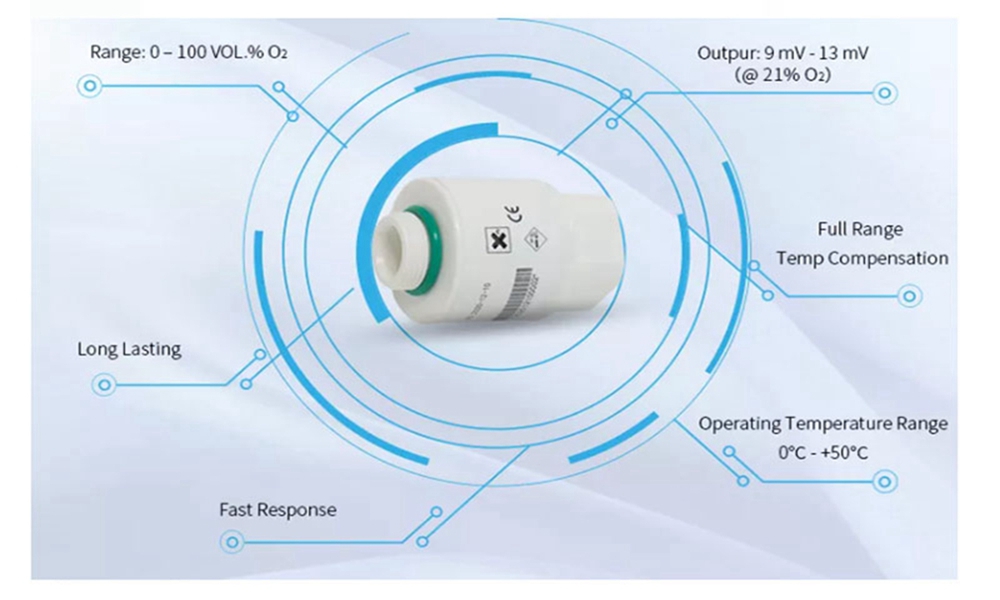

Parameter:
- Model: AO-07
- Output voltage: 9mV - 13mV (for 21% O2)
- Measurement range: 0-100Vol.% O2
- Temperature compensation: <2% O2 equivalent (0℃-40℃)
- Response time: <15s to 90% of maximum value
- Working temperature range: 0℃- +50℃
- Working pressure range: 0.5Bar - 2.0Bar
- Working humidity range: 0% - 99% RH (non-condensing)
Package Included:
- 1 x AO-07 Oxygen Sensor Module
