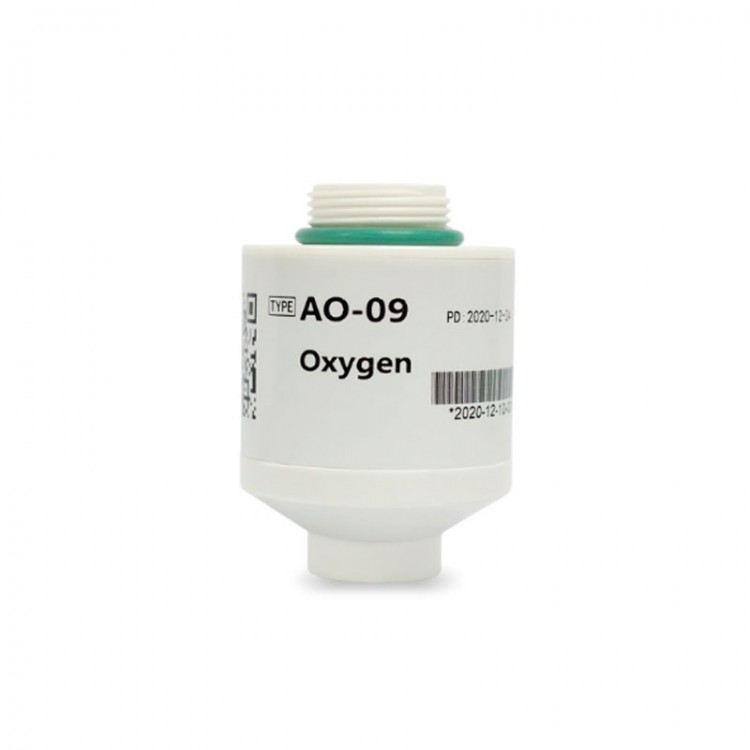

AO-09 Oxygen Sensor Module 0-100%VOL High Precision Electrochemical Oxygen Sensor with Fast Response

AO-09 Oxygen Sensor Module 0-100%VOL High Precision Electrochemical Oxygen Sensor with Fast Response

Description:
- The oxygen sensor AO-09 is designed with a molded body and has the characteristics of accurate monitoring, fast response and long service life after temperature compensation. It conforms to CE, ROHS and REACH standards and is widely used in the medical, aquaculture, industry and life fields such as breathing machines, anesthesia machines, oxygen generators, incubators, air quality detectors, etc.

Application:
- AO-09 medical oxygen sensor is designed to be used as the oxygen sensing component of the oxygen analyzer. The oxygen analyzer can be used in the following equipment to measure the oxygen concentration in the respiratory gas mixture: the sensing device in the oxygen, the oxygen generator control device, the medical ventilator, the anesthesia equipment, the incubator, and so on.
- This purpose is only limited to system monitoring. The sensor does not set the equipment parameters through the analysis of respiratory gas. Please follow the instructions for operating the oxygen analyzer and replacing the oxygen sensor.

Parameter:
- Model: AO-09

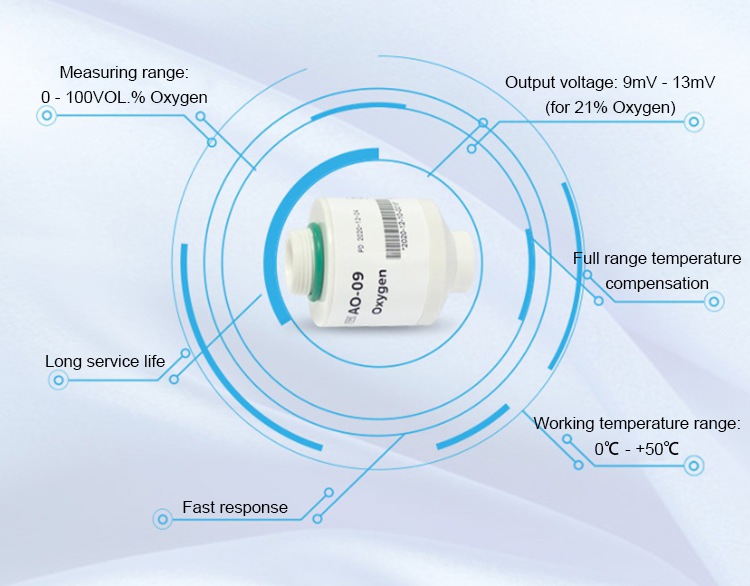

- Output voltage: 9mV - 13mV (for 21% Oxygen)
- Measuring range: 0-100Vol.% Oxygen
- Temperature compensation: <2% Oxygen equivalent (0℃ - 40℃)
- Response time: <15s to 90% of the maximum value
- Working temperature range: 0℃ - +50℃
- Working voltage range: 0.5Bar - 2.0Bar
- Working humidity range: 0% - 99%RH (Non-condensing)

Package Included:
- 1 x AO-09 Oxygen Sensor Module
