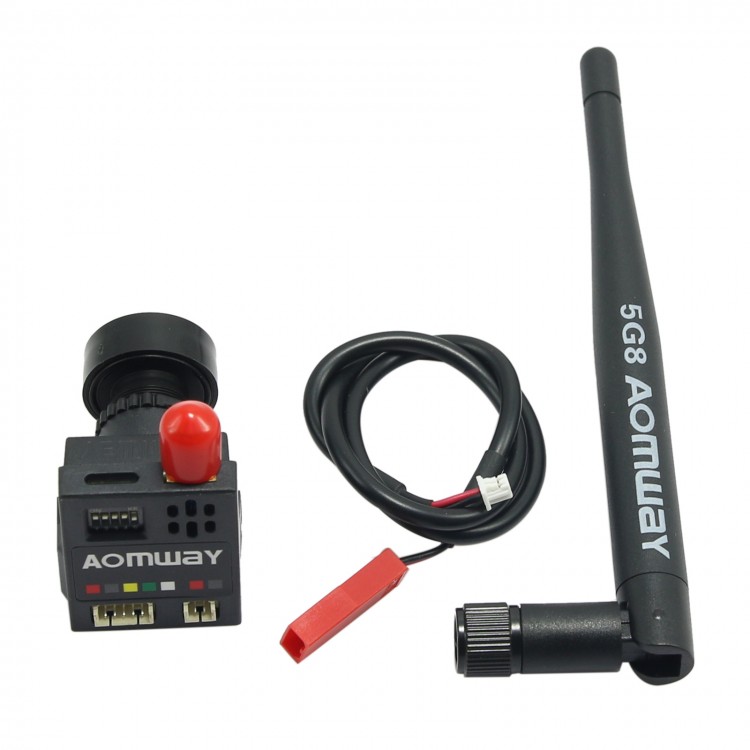

AOMWAY 700TVL CMOS HD Camera + 5.8G 200mw AIO Transmitter TX Telemetry for Multicopter FPV Photography
Description:
- 700TVL HD CMOS camera + 5.8G 200mW
Camera parameters：
|
Type |
Colour |
||
|
Signal System |
PAL / NTSC |
||
|
|
||
|
Pick Up Device |
1/3” COMS |
||
|
Picture elements |
|
||
|
Resolution |
700TV Lines |
||
|
|
||
|
Scanning System |
2:1 Interlace |
||
|
Sync System |
Internal |
||
|
S/N Ration |
More than 45dB |
||
|
Gain Control |
Auto |
||
|
White Balance |
Auto |
||
|
Lens |
2.1mm installed |
||
|
Video Output |
1.0V p-p (75? BNC) |
||
|
Power Supply |
3.6 – 5.5V DC |
||
|
Power Consumption |
120mA |
||
|
Dimensions |
22 X 20mm |
||
|
Weight |
12g |
||
|
Operating Temperature |
-15 to 60° C |
5.8G large power transmitter features:
- Synchronous transmission of 5.8G broadband FM audio and video transmission.
- Large TX power 200MW 23db
- Built in four frequency selectable
5740-5860MHz / 5705-5925MHz.
5725-5865MHZ/5733-5866MHZ
- 32 TX channels.
- Small size: 26*20*8mm
- Light weight. 6G (no antenna).
- Stereo, left and right channel independent transmission.
- DTTB: PAL / NTSC.
- Input voltage range DC6-24v.
- Equipped with 5dB omnidirectional antenna.
