Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $23.02 | $22.55 | $21.85 | $20.91 | Contact US |
Product description:

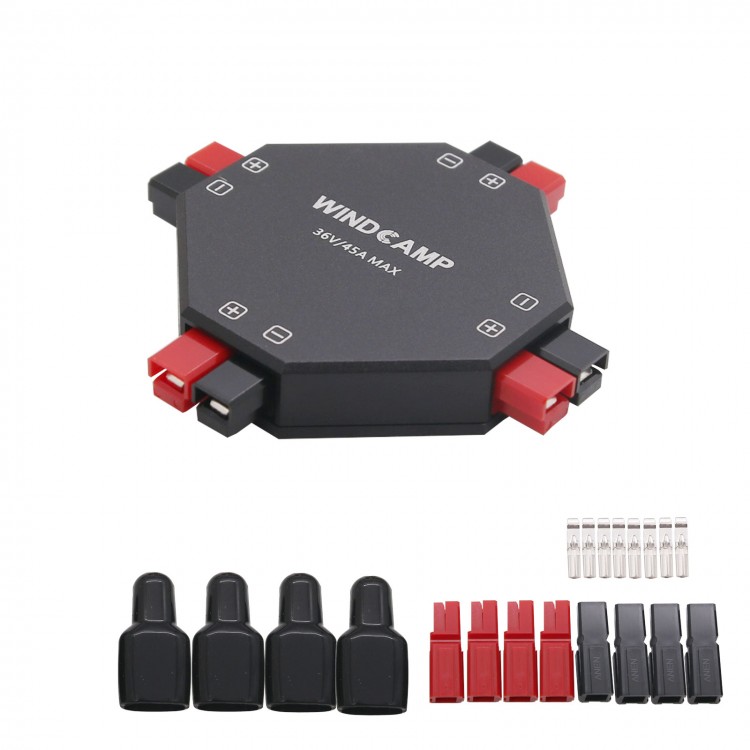

AP-4 four-way power distributor, is based on Anderson plug (Anderson Powerpoles, referred to as the AP plug) four DC power distributor, allowing communication power at the same time three-way radio connection, tuning and other equipment. This product is hollow aluminum shell design, has a good process and texture.
AP plugs in Europe and the United States HAM sector penetration is higher, it has to withstand the current, regardless of the male and female head, can be assembled and many other advantages. AP-4 four-way power splitter has been standard with four pairs of AP plug for users.
Technical Parameters:
- Working voltage: ≤ DC 36V
- Working current (long-term): 30A
- Working current (short time): 45A
- Overall dimensions: 74 * 74 * 13 (WDH, mm)
- Net weight: 65g
- Packing size: 110 * 15 * 135 (WDH, mm)
- Gross weight: 85g
Annotation configuration:
- AP-4 four-way power splitter * 1 only
- AP plug * 4 pairs
