APM V2.8.0 ArduPilot UAV Flight Controller No Compass with Power Module & OSD(CNC Case) for FPV Multicopter Airplane

APM V2.8.0 ArduPilot UAV Flight Controller No Compass with Power Module & OSD(CNC Case) for FPV Multicopter Airplane

APM V2.8.0 description:
- This version eliminates the 1.0mm 6P SM06B GPS interface of V2.52 old version, and change it into DF13-4P I2C external compass interface.
- Put DF13-5P GPS interface with external compass interface, convenient for the connection of GPS and externalcompass.
- V2.52 I2C interface changes to multifunctional MUX interface
- Modified version added isolation resistor, when the OSD interface used with telemetry, the interfaces is effectively avoided
- V2.52 version 3.5V power supply adopts IPS79133, 6V withstand voltage, output current 100mA, need to supply power for six IC, slightly inadequate power supply ability, easy to be burnt dwon. The new version adopts US LP2985-3.3, 16V withstand voltage, more reliable, redcucing the possibility of Bad Gyro health

APM V2.8.0 Flight Controller
- Without compass
- Needle: staight
- Power supply: LP2985-3.3
- Max voltage: 16V
- Add a 47uF tantalum capacitor
- Port: MUX (UART0, UART2, mnnI2 and OSD are optional, OSD is the defaulted output)

APM Power Supply Module Description:
- PM function: used for detecting battery voltage and current, flight control board receives these two signals, calculating battery remaining power, and remaining flying time
- This module has BEC function, can output 5.3V DC, max 3A continuous current, supply stable power for flight control board
- The signal cable connector adopts Japan original connector, making the connection reliable
- The APM 2.5 Power Module is a simple way of providing your APM 2.5 with clean power from a LiPo battery as well as current consumption and battery voltage measurements, all through a 6-pos cable. The on-board switching regulator outputs 5.3V and a maximum of 2.25A from up to a 4S LiPo battery. The Power Module comes completely assembled with Deans connectors, and wrapped in shrink tubing for protection.

On-Screen Mini OSD V1.1 Description:
- APM Minim OSD V1.1 + CNC Processed Shell Case Protector Case set
- CNC Aluminum processing
- Color: Black
- Size: 5.9*2.1*1.2cm(L*W*H)
- Suit for APM Minim OSD, offer good protection and improve heat dissipation.

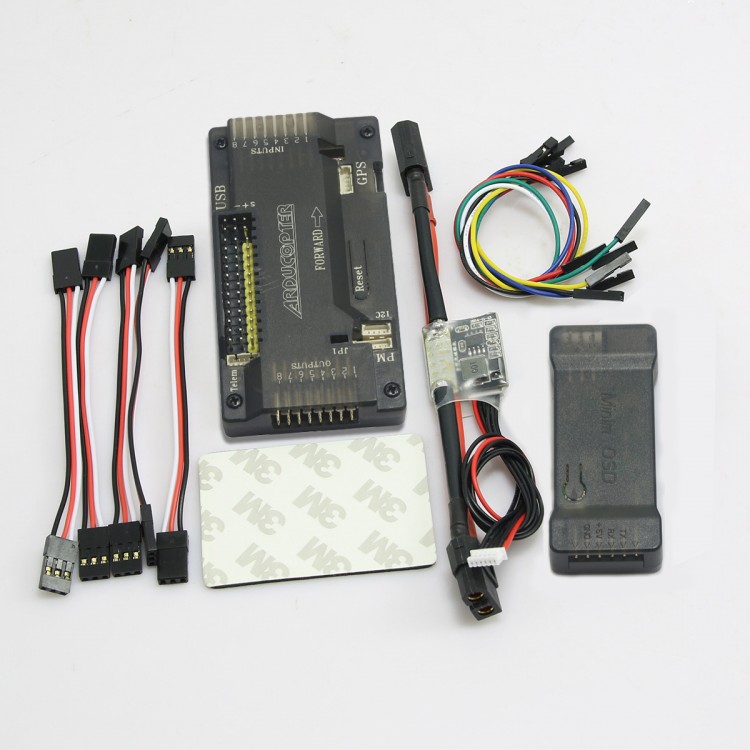

Package List:
- 1 x  APM V2.8.0 ArduPilot UAV Flight Controller with Case
- 1 x  On-Screen Display Ardupilot Mega Mini OSD V1.1 for APM 2.6 2.8
- 1 x  APM Power Supply Module
- 1 x  sticker
- Some connect cable
