APM2.6 ArduPilot APM Flight Controller + Ublox 7M GPS + 3DR Telemetry + XT60 Power Module for FPV Multicopter

Availability: In stock, usually dispatched in 1 business day

  • Price:$83.80
  • Price in reward points: 838 Reward Points: 8
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $82.12 $80.45 $77.93 $74.58 Contact US
Quantity:

APM2.6 ArduPilot APM Flight Controller + Ublox 7M GPS + 3DR Telemetry + XT60 Power Module for FPV Multicopter

Introduction:
- This is the new APM 2.6 autopilot module. The sensors are exactly the same as with APM2.5+, however this version does not have an onboard compass, which makes this version ideal for use with multicopters and rovers.
- The APM 2.6 is a complete open source autopilot system and the bestselling technology that won the prestigious 2012 Outback Challenge UAV competition. It allows the user to turn any fixed, rotary wing or multirotor vehicle (even cars and boats) into a fully autonomous vehicle; capable of performing programmed GPS missions with waypoints. Available with top or side connectors.
- This revision of the board has no onboard compass, which is designed for vehicles (especially multicopters and rovers) where the compass should be placed as far from power and motor sources as possible to avoid magnetic interference. (On fixed wing aircraft it's often easier to mount APM far enough away from the motors and ESCs to avoid magnetic interference, so this is not as critical, but APM 2.6 gives more flexibility in that positioning and is a good choice for them, too). This is designed to be used with the 3DR uBlox GPS with Compass (see option below), so that the GPS/Compass unit can be mounted further from noise sources than APM itself.

Features:
- Arduino Compatible!
- Can be ordered with top entry pins for attaching connectors vertically, or as side entry pins to slide your connectors in to either end horizontally
- Includes 3-axis gyro, accelerometer and magnetometer, along with a high-performance barometer
- Onboard 4 MegaByte Dataflash chip for automatic datalogging
- Optional off-board GPS, uBlox LEA-6M module with Compass.
- One of the first open source autopilot systems to use Invensense's 6 DoF Accelerometer/Gyro MPU-6000.
- Barometric pressure sensor upgraded to MS5611-01BA03, from Measurement Specialties.
- Atmel's ATMEGA2560 and ATMEGA32U-2 chips for processing and usb functions respectively.

Ublox Neo-7M GPS Specifications:
- uBlox Neo-7M module
- 56-channel
- GPS L1 C/A, GLONASS L1 FDMA
- QZSS L1 C/A
- Galileo E1B/C
- SBAS: WAAS, EGNOS, MSAS
- 10Hz update rate
- 25x25x2 Ceramic patch antenna
- Rechargeable 3V Backup battery
- Low noise 3.3V regulator
- I2C EEPROM storage
- Power and fix LED’s
- Pedestal Mount/Case
- Pixhawk/PX4 compatible
- LNA MAX2659ELT+
- Pre-configured 38,400 Baud and prams

3DR Radio Telemetry version:
- Band: 915MHz or 433MHz
- Power: 100mW
- Low noise filter: no
- Data transmission: Time division duplex hal
- Data encrypt support: no
- Ground communication distance: 300-800m

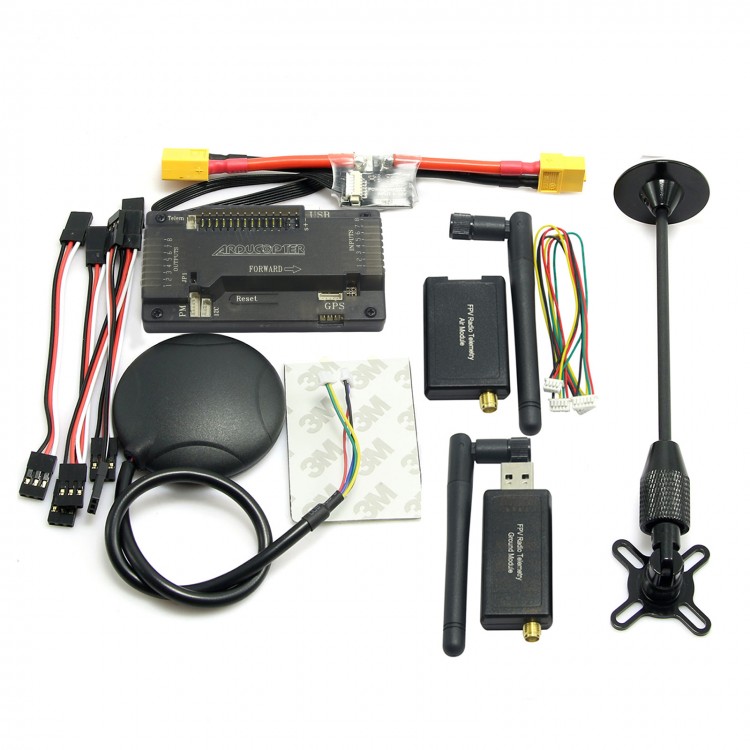

Package Listing:
- 1  x  APM V2.6 Flight Controller
- 1  x  3DR Radio Telemetry(915MHz or 433MHz)
- 1  x  TX60 APM Power Supply Module
- 1  x  Ublox Neo-7M GPS
- 1  x  GPS Holder
