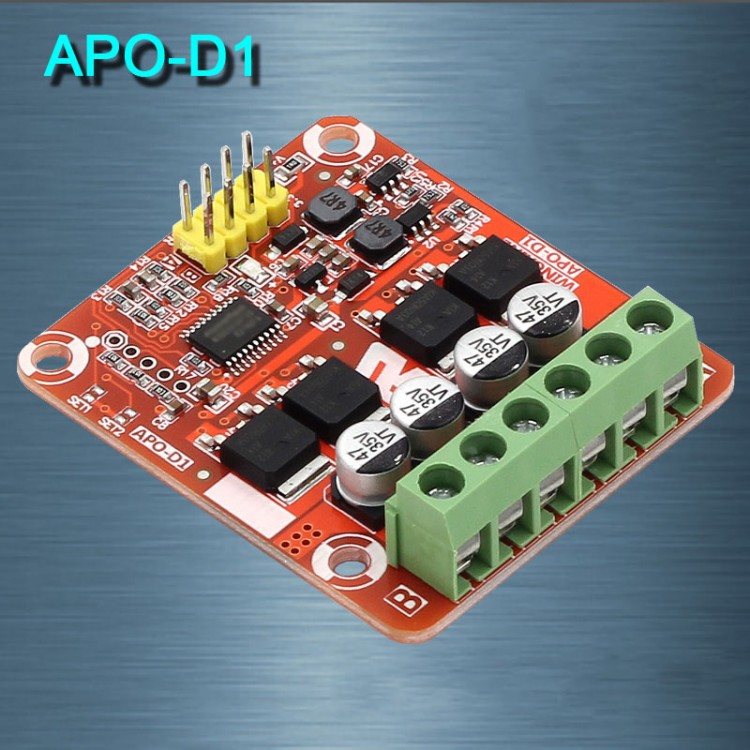

APO-D1 10Ax2 Motor Speed Controller Dual Channel 5V To 24V For RC DC Brushed Motor Speed Control ESC

Availability: In stock, usually dispatched in 1 business day

  • Price:$17.63
  • Price in reward points: 176 Reward Points: 2
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $17.28 $16.92 $16.40 $15.69 Contact US
Quantity:

APO-D1 10Ax2 Motor Speed Controller Dual Channel 5V To 24V For RC DC Brushed Motor Speed Control ESC

Features:

- Motor speed control, motor CW/CCW control
- Adjustable current limit
- ESC, potentiometer, and single-chip microcomputer control in any way
- Wide voltage input range

Application:
- Speed control and commutation control of DC brushed motor
- Potentiometer controls motor CW/CCW and commutation
- MCU control motor CW/CCW and commutation
- Semiconductor refrigerator temperature adjustment and commutation control
- Speed regulation and commutation control of coreless motor

Rated Parameters:

- Rated input voltage: 5V~24V/DC
- Standby current: <20mA
- Average use current: 10Ax2 (10A per channel)
- Control mode: 1. ESC mode: model airplane remote control: 1ms~2ms (pulse width)/50Hz. 2. MCU mode: 0%~100% duty cycle/frequency: 500Hz~16kHz. 3. Potentiometer mode: 0V-5V input voltage (2.45V~2.55V motor stops)
- Weight: 16.5g

Limit Parameters:
- Limit input voltage range: 5V~24V/DC (MAX.)
- Pulse peak current: 50A x 2 (MAX.)

Package Included:
- 1 x Motor Speed Controller
