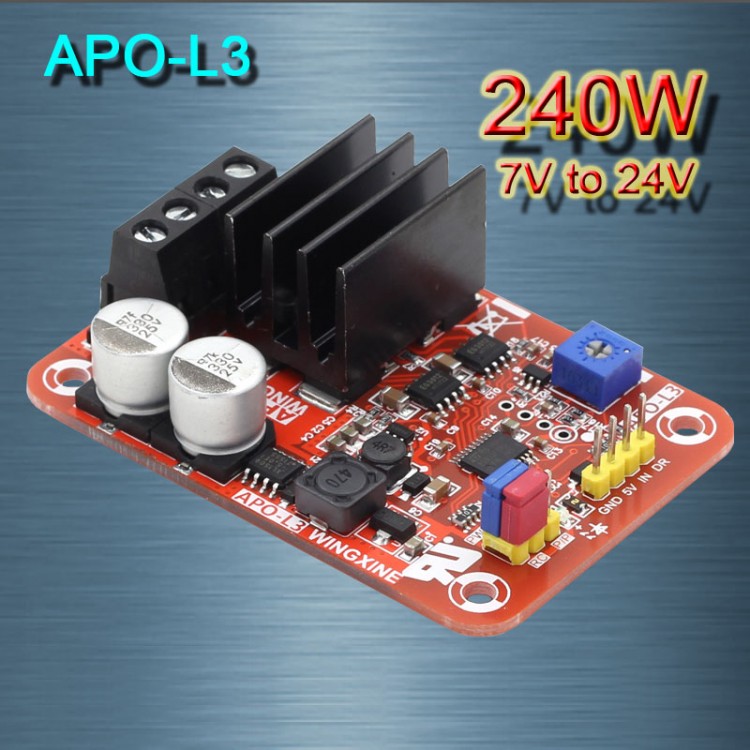

APO-L3 DC Brush Motor Controller PWM Controller + Electric Regulator + Speed Controller 240W/7V-24V
Features:
- APO-L3 DC Motor Driver Controller
- RC/MCU (PWM) Control/Potentiometer Control
- Application: aero-modeling, smart car, motor speed & communication control, semiconductor refrigeration
- Motor speed control, motor positive conversion control, adjustable current limiting
- Three operating modes
- Wide voltage input range
Application:
- Moto commutated & speed control
- Potentiometer control, motor commutation and speed
- MCU (PWM) control motor commutation and speed
- Semiconductor refrigeration
Parameters:
- Input Voltage: DC 7-24V
- Standby Current: ＜ 20mA
- Limit Current: 0.1A to 10A adjustable
- Control Modes:
RC Mode: 1ms to 2ms (pulse width)/50Hz
MCU (PWM) Mode: 0% to 100% duty cycle/Frequency: 500Hz to 16KHz
Potentiometer Mode: 0V-5V input voltage (2.45V to 2.55V motor stops)
Absolute Maximum Parameters:
- Limited Input Voltage: Max. 5V to 30V
- Limited Output Current: Max. 10A ± 0.5A
Package Included:
- 1 x APO-L3 Controller
