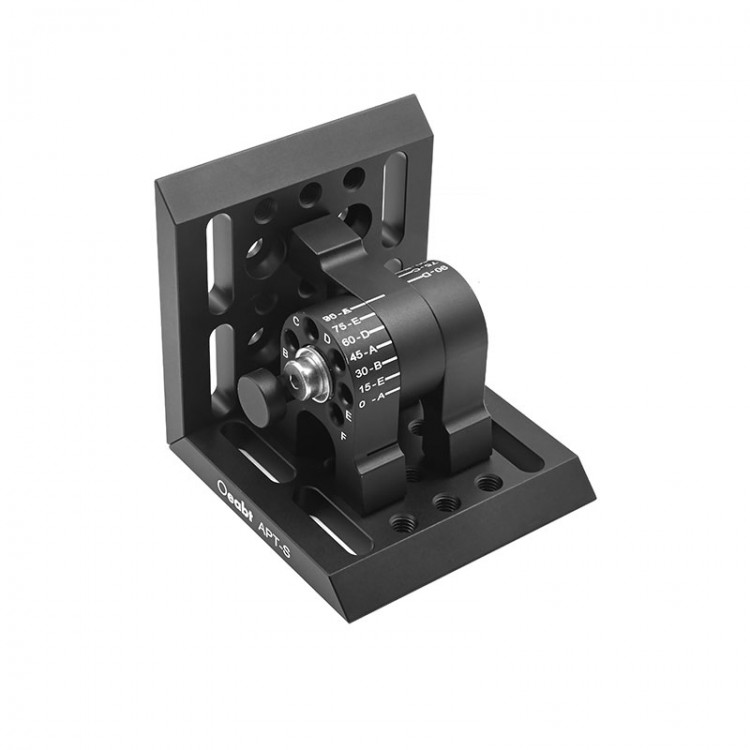

APT-S Angle Switching Bracket 180-degree Adjustable Tilt Platform Angle Stand for Optics Experiment Components
Features:

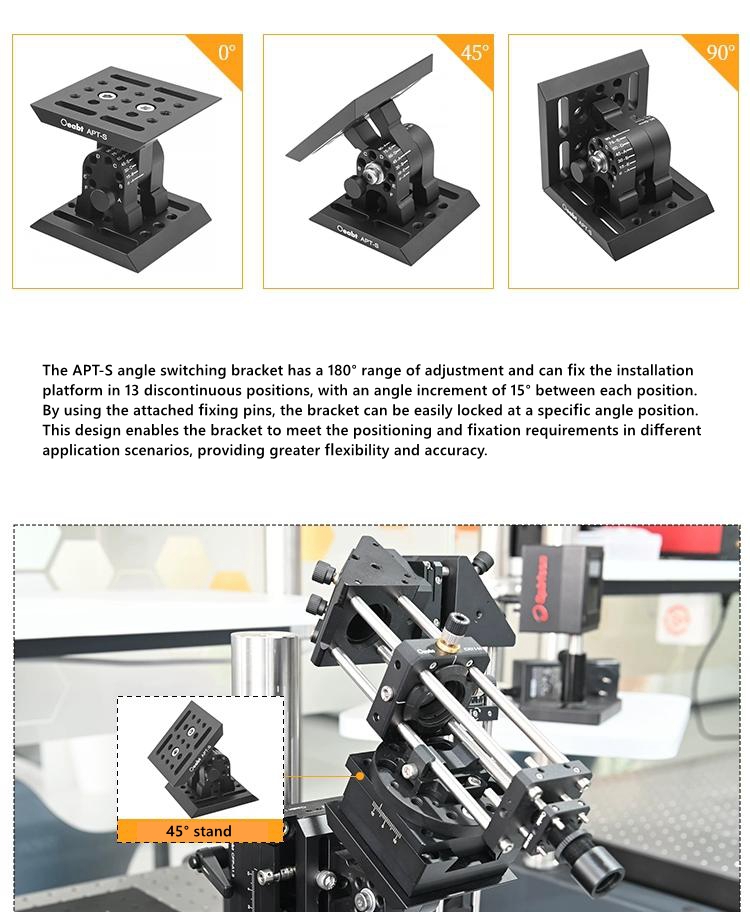

- Adjust 180° discrete or continuous motion.
- Angle increment of 15°, switching between 13 discontinuous positions.
- Detachable fixing pin for fixing angle positioning at 13 points.

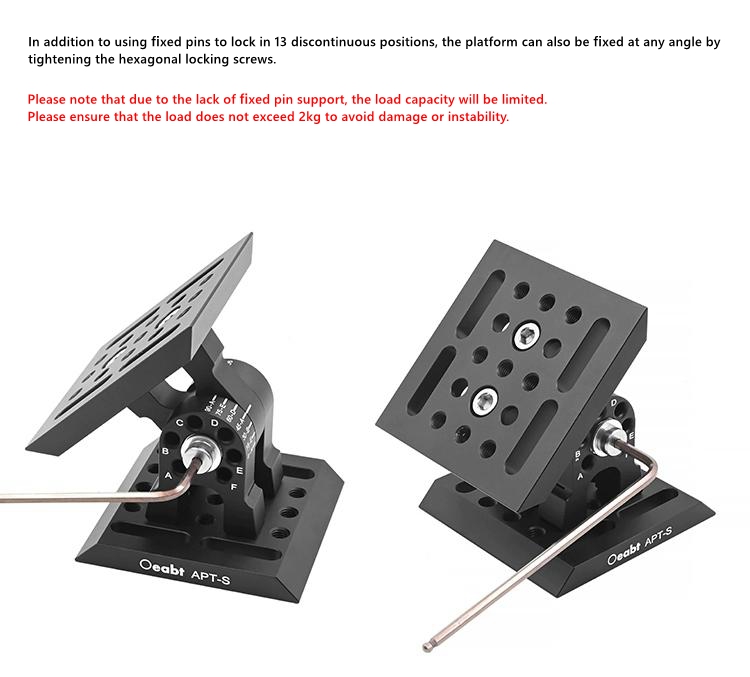

- The total adjustment range is 180°, locked by tightening the hexagonal screws.

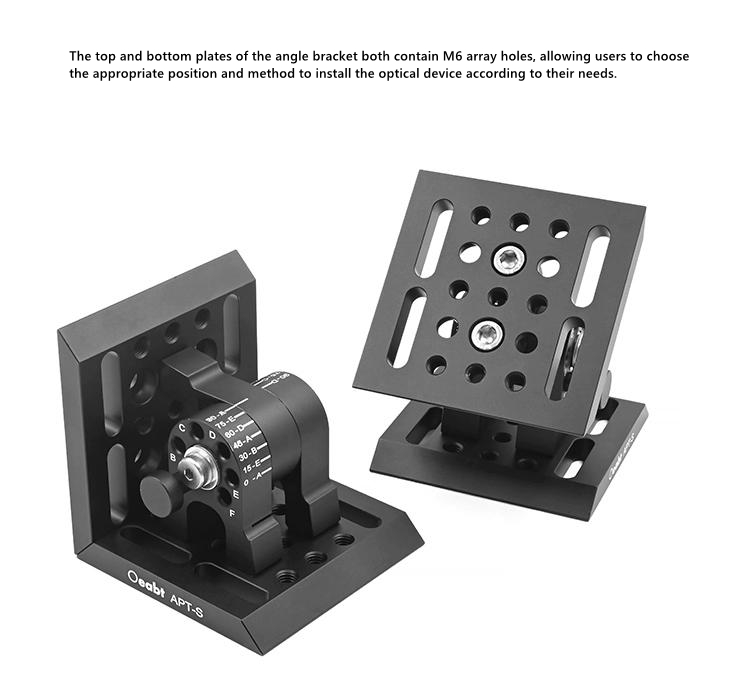

- Platform M6 mounting hole array.

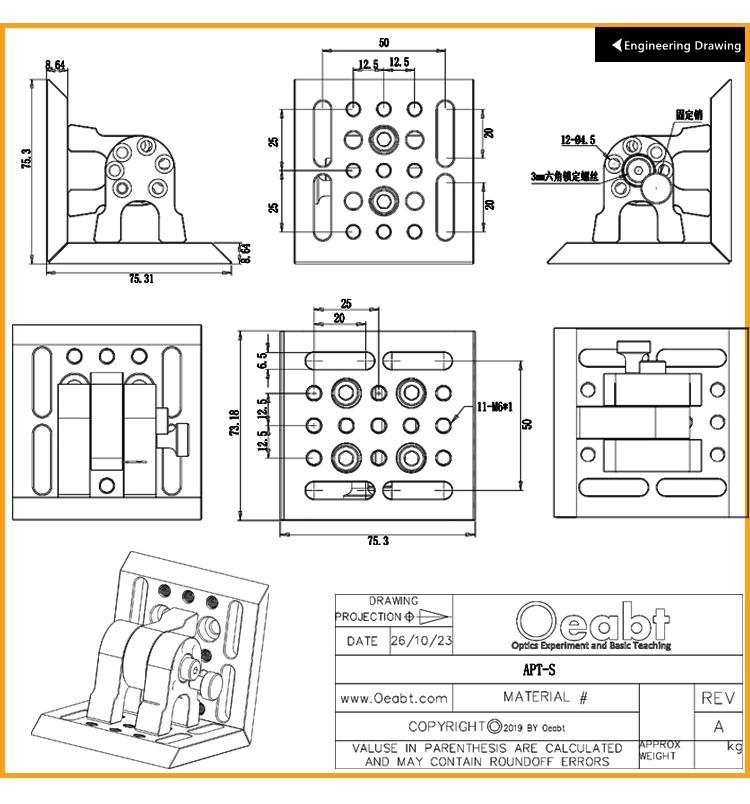

Specification:
- Model: APT-S
- Size: 75.3 x 75.3 x 73.2mm
- Adjustment angle: 0 - 180°, switching with angle increment of 15°
- Screw holes:
Top board: M6 x 9, M6 x 4 (counter bore), 6.1*20mm x 4 (through slot)
Bottom board: M6 x 11, 6.1*20mm x 4 (through slot)
- Product net weight: 298.3g
- Material: 7075 aluminum alloy
Precaution:

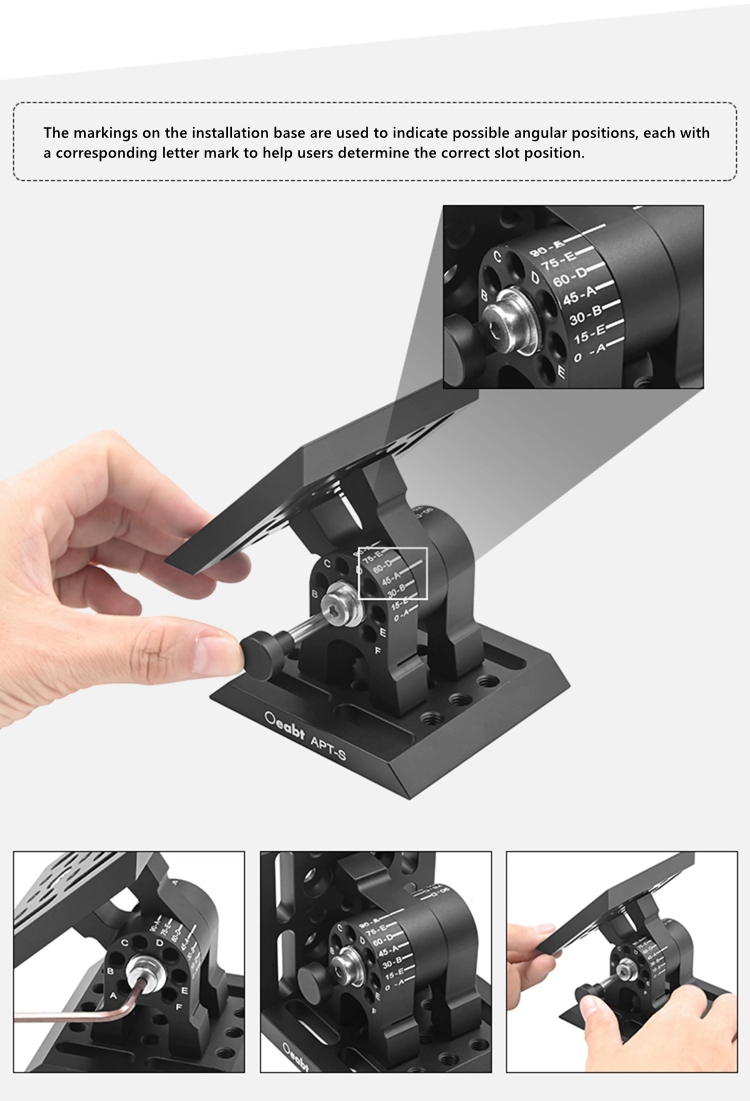

- If you need to change the angle between the two boards, first use a 3mm wrench to slightly loosen the hexagonal locking screw on the mounting base and pull out the fixing pin. Then rotate the top plate so that the white engraved line on the top plate moving axis aligns with the required angle mark on the bottom plate fixing axis. Insert the fixing pin into the slot corresponding to the letter marked in parentheses next to the angle position. Finally, tighten the hexagonal locking screws to fully secure the position of the platform.
Package Included:
- 1 x Angle Stand
