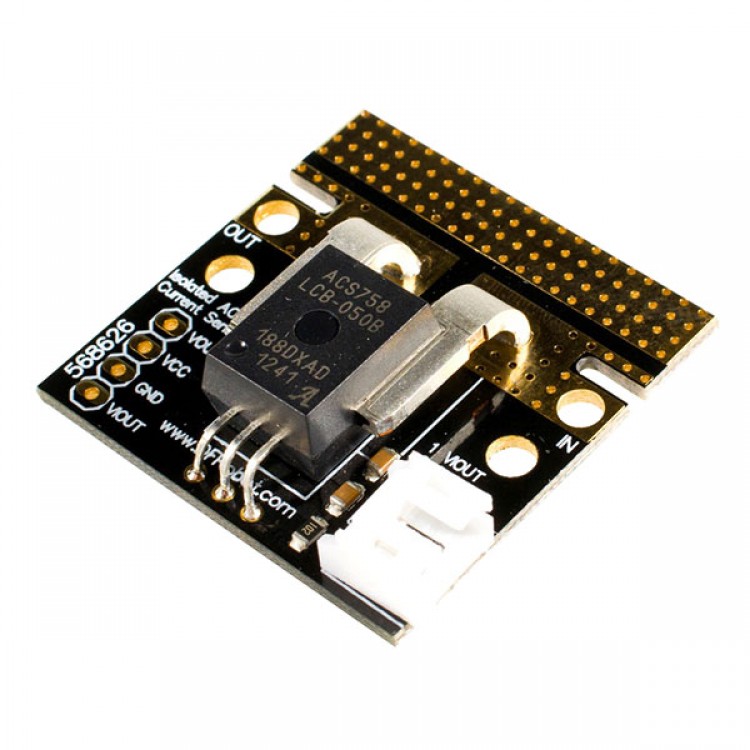

Arduino 50A HM AC / DC Current Detection Module Current Sensor
Description:
- ACS758 chip using current detection module , is a thermally enhanced , high-current , Hall Effect- Based Linear Current Sensor that detects AC or DC current, maximum detection current 50A. This is definitely one of the current detection module is powerful, small size. In the Arduino application extension is definitely a highlight of the Arduino platform to solve the problem of detecting a large current .
- Module uses Immersion Gold process ( gold Oh really ! ! ) , Allows a larger current , input and output openings designed to weld thick power cord. Slotted design can be welded T-connector . Also marked on the board should be connected to the positive and negative currents . Users can weld or both ends of the power cord clamped with iron clamps .
- Typical applications include motor control, load detection and management , model aircraft and robots overcurrent detection. We provide comprehensive tutorials and sample code , so you can get started right away this powerful module .
Specification:
- Sensor operating voltage :3.0-5 .5 V
- Sensor Current : 13.5mA (MAX)
- Sensitivity : 60mV / A
- Ultra Low Power : 100μΩ internal resistance
- Mounting holes : 25.4mm diameter 3.2mm pitch
-Module size : 33.5 X 32.5mm
