Arkbird Ground Control Station 433MHz Transmitter & Receiver 100mW RC Aircraft Data Transmission Module

Arkbird Ground Control Station 433MHz Transmitter & Receiver 100mW RC Aircraft Data Transmission Module

Waypoint location indicate

The time of waypoint, the height of the current coordinate to the point, the distance and the point of departure will be shown on the upper left corner.

Such as double machine docking method, will be in the radar coordinate system with flashing arrows to indicate the other side of the aircraft position.

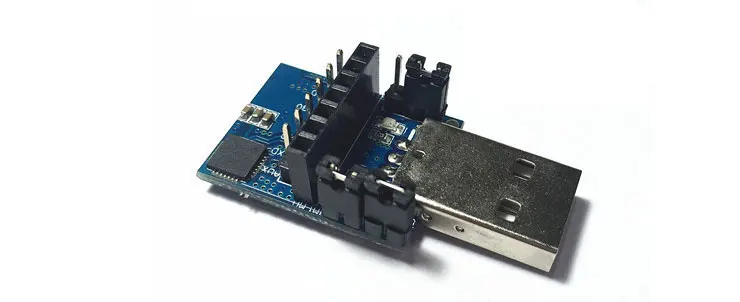

USB Commutator
USB to TTL switch board, can change the transmit and receive power, baud rate and other parameters of digital module, support the supply voltage of 3.3V or 5V.

Frequency hopping technology, no interference frequency

Features:

• Arkbird ground station of the made to orders' 915  Data Transmission Module, with forward error correction function.
• 100mv Power, low power, the design of high sensitivity , anti-interference, convenient plug and play, compatible with program optimization of ground station.
• If there are two sets of Arkbird flight controller,they can access Arkbird digital transmission interface together, you can achieve the location of mutual transmission, fleet formation, show the other location and height on OSD.
• Compatible with win10 tablet for easy field usage.
• Use frequency hopping technology, transmission distance and penetration than the traditional fsk 1 more times.

Specification:

• Item Name: Arkbird Ground Control Station 433MHz 433 Serial Module 100mW RC Aircraft Data Transmission Module
• Transmitting power: 100mv
• Carrier frequency :433mhz(410-441)
• Ground communication distance: 3km
• Air communication distance :5-10km
• Net weight: 117.5g

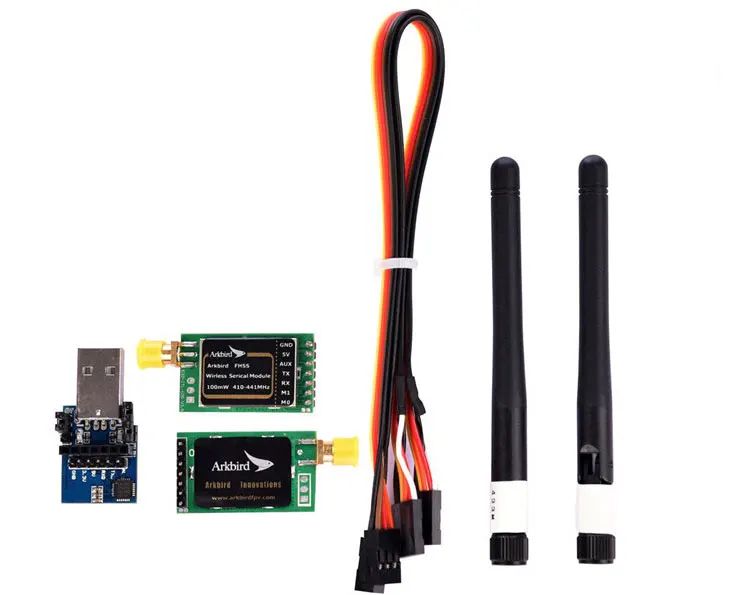

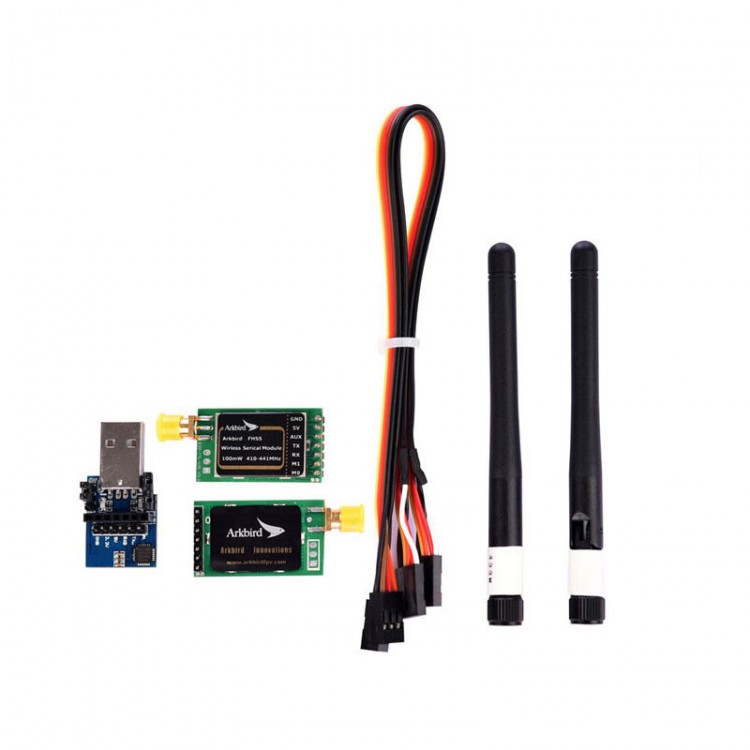

Includes:

• 2 * Arkbird Ground Control Station 100mW RC Aircraft Data Transmission Module
• 2 * Antenna
• 1 * USB commutator
• 1 * Connector
