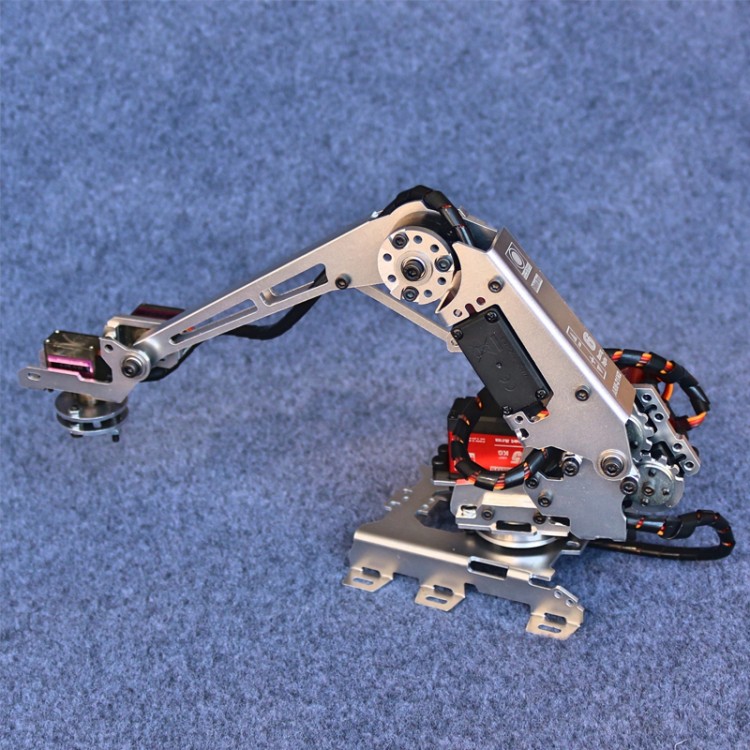

ARM-21N2 6DOF Robot Arm Kit Metal Robotic Arm Mechanical Arm Unassembled (with 20KG Digital Servos)

ARM-21N2 6DOF Robot Arm Kit Metal Robotic Arm Mechanical Arm Unassembled (with 20KG Digital Servos)

Features:
- 6DOF robotic arm
- All movable joints connected by bearings
- 9-year manufacturing experience ensures product quality
- Gripper holder fits your suction cups, electromagnets, forks, craws, grippers, etc.
- Size limit: Head length 66mm/2.6"; forearm 156mm/6.1"; upper arm 131mm/5.2"

20KG Digital Servo:
- Servo motherboard: Digital controller
- Servo size: 40 x 20.5 x 40.5mm/1.6 x 0.8 x 1.6"
- Weight: 56g±5% (0.1lb±5%)
- Working voltage: 4.8-7.2V
- Output transmission: metal gears + double bearings
- No-load speed: 0.14-0.18sec/60°
- Stall torque: 20.5kg.cm
- Pulse width: 500-2500usec
- Rotation angle: 180°
- Dead zone width: 5usec
- Midpoint position: 1500usec
- Output shaft: 25T
- Output shaft hole: M3
- Idling current: 210-260mA
- Blocking current: 2100-2700mA
- Waterproof level: preliminary
- Shell: aluminum alloy + plastic

Package Included:
- 1 x Set of Robot Arm (with 20KG Digital Servos)

Note:
- Assembly is needed, providing assembly instructions.
- Control circuits, suction cups, grippers and other accessories mentioned are not included.
