Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $13.91 | $13.62 | $13.20 | $12.63 | Contact US |

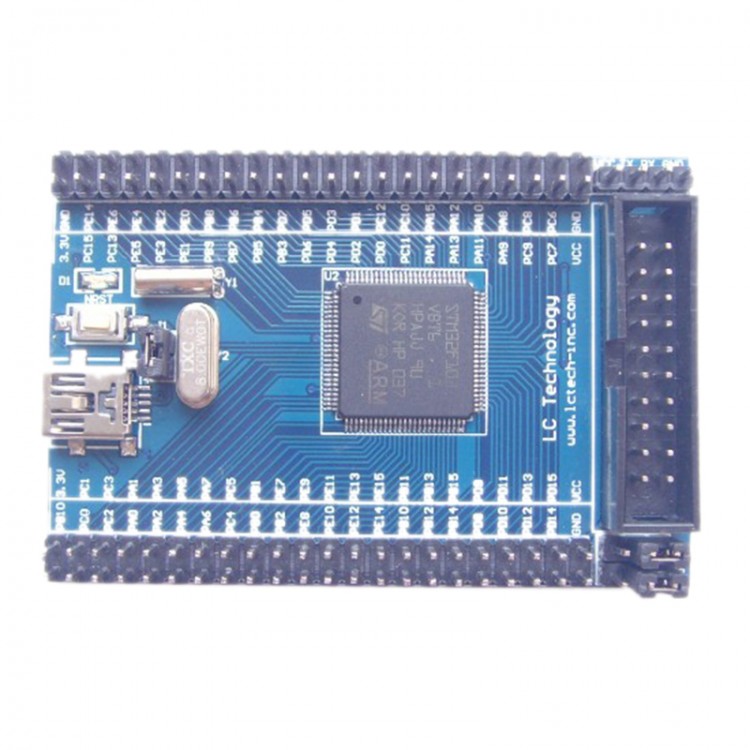

ARM Cortex-M3 STM32F103VBT6 STM32 Development Board
Description:
1. On-board STM32F103VBT6 chip.
2. On-board JTAG interface and reset button.
3. On-board 32.768KHZ and 8MHZ crystal.
4. With 5V to3.3V chip AMS1117-3.3.
5. With a grout RS232 serial, UART1 and UART2 can set by jumper.
6. All I/O are led out and marked.
7. Support USB power supply and power supply JLink Power On.
8. PCB size: 71(mm) x 99(mm).
Package included:
ARM Cortex-M3 STM32F103VBT6 STM32 Development Board
