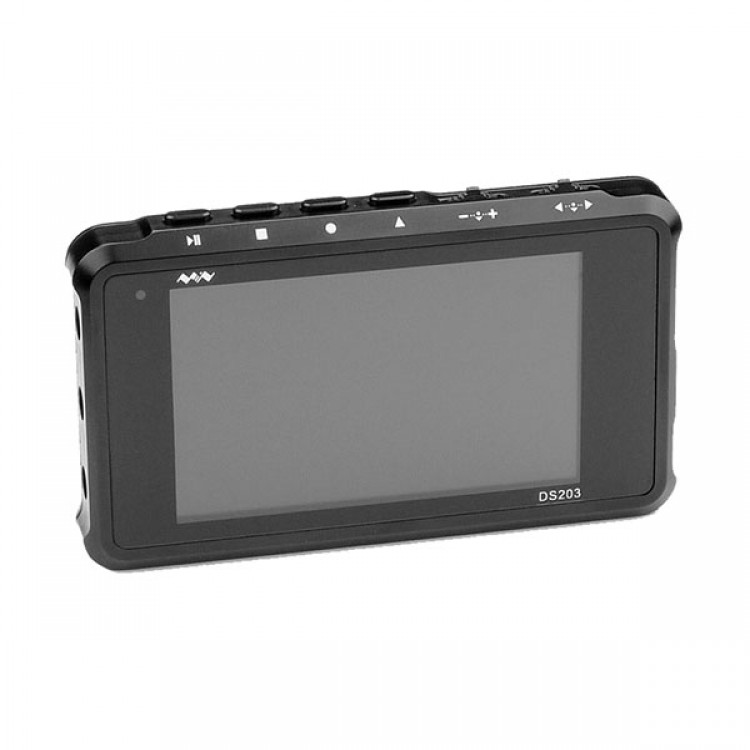

ARM DS203 Quad Pocket 4 channel Digital Oscilloscope with Aluminum Case Protective Bag

Availability: In stock, usually dispatched in 1 business day

  • Price:$166.58
  • Price in reward points: 1666 Reward Points: 17
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $163.25 $159.92 $154.92 $148.26 Contact US
Quantity:

ARM DS203 Quad Pocket 4 channel Digital Oscilloscope with Aluminum Case Protective Bag


Description:
- DSO203 is a pocket size 4 channel digital oscilloscope for common electronic engineering tasks. It's based on ARM cortex M3 (STM32VCT6), providing 72MS/s sampling rate with integrated FPGA and high speed ADC. Internal 2MB USB disk could be used to store waveform, user application and upgrade firmware.
- 2 probe connectors
-  4 inputs & 4 tracks (2 analog 2 digital)
- A custom waveform output (including the built-in sine, square, triangle)
- Built-in 2M USB disk
- Very low power consumption
- 3" 240 × 400 widescreen color TFT LCD screen, STM32 is the master MCU, with the FPGA to implement the control and management of external ADC and data cache.
- Analog channel circuit using unity gain> 150MHz op amp, so the actual 30MHz analog bandwidth is expected to do more.
- 36M+36M sampling frequency, the use of the ADC AD9288-40 chip, single-channel maximum sampling frequency of the 72M.
- FIFO RAM has a maximum operating frequency of use of> 200MHz low-power FPGA to achieve.
- The AD9288-40 Overclocking to achieve 72M+72M sampling frequency, so that the maximum single-channel sampling rate up to 144M.
- As low power, low-cost, QFP package and other conditions of the FPGA, storage capacity is not large, so DSO203 sampling depth of the current situation for the multi-channel 4096 points per channel, single-channel work cases, 8192 points.
- At the same time to reduce the size and easy to DIY manual welding, MCU and the FPGA are selected QFP100 package, ADC selected QFP48 package



Specification:

Analog channel * 2

[CH_A] [CH_B]

Digital channel * 2

[CH_C] [CH_D]

Vertical Scale

20mV-10V/div (1-2-5 step) on x1 probe / 200mV -100V/div (1-2-5 step) on probe

Vertical resolution

8 bit

Input coupling

AC/DC

Max input voltage

80Vpp (x1 probe) / 400Vpp (x10 probe)

Storage

4K per channel / 8K on single channel

Software trigger type

edge, pulse, level (to be added)

Hardware trigger type

edge

Trigger source

CH1/CH2/EXT

Trigger mode

Auto, Normal, Single, SCAN, None

Test Signal generater

10Hz to 8Mhz 2.8Vpp Square Wave, duty circle 10~90% adjustable / 10Hz to 20Khz 2.8Vpp Sin, Square, Saw, Triangle wave

Storage

internal 2MB USB disk, BMP, DAT file

Auto measure

Vmax, Vmin, Vpp, Vavr, Vrms, Freq, Period, Pulse, Duty

Cursor measurement

Level, Voltage

Display mode

CH1, CH2, EXT, CH1+CH2, CH1-CH2, CH1*CH2

Sampling mode

real time

Sampling rate

30S/s - 72MS/s

Power

Lipo battery

Dimension

98 * 60 * 14.5 (mm)

Weight

80g (without battery)

Accessories within Pack

2 mcx osilloscope probe

Package Included:

- ARM Digital Oscilloscope (DSO203) (Including Battery)  × 1
- Probe  × 2
- Screw drive x 1
- USB cable x 1
- Protective bag x 1
