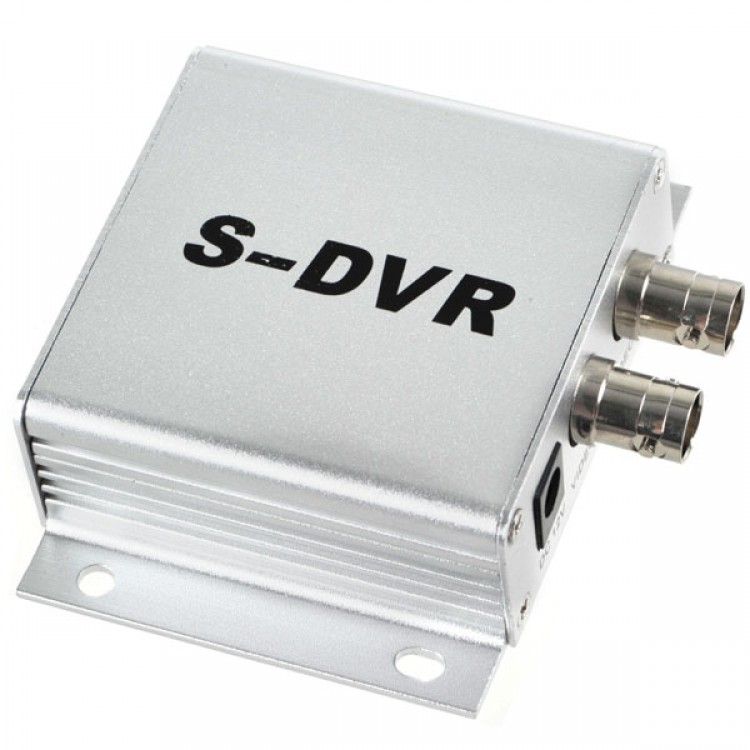

ARM+DSP Technology 1 Channel Video Backup Mini DVR ZJ-DVR01
Features:
- TF Card Storage, up to 32G capacity&
- 1ch analog video Input & 1ch analog video output;
- Support OSD Date/Time, memory remain after restart
- Support time sync adjustment
- Efficient video compression arithmetic based on ARM+DSP technology
- Playback function with control wheel
- Motion detection, records in 2GB card last for 7 days
- Built-in playback firmware, auto store into TF card and users can playback the TF card from PC
Specifications:
| Video Input | CCD or CMOS CCTV Camera | |
| Video Output | 1.0Vp_pcomposite video 75Ω | |
| Video Resolution | CIF, JPG | |
| Max Frames Per Second | Max. 30fps | |
| OSD | Support | |
| ARM | Hi-performance ARM Processor | |
| DSP | Image Processor Based on DSP Chips | |
| File System | FAT16, FAT32, Auto Format | |
| Storage | TF Card, 32G Max. | |
| Recording | Autocycle Recording, The Latest Files Kept | |
| Storage Interface | Outlay TF Card Slot | |
| Time/Date | Transfer via TF Card or by Manual | |
| Update | Via TF Card or DSP EEPROM | |
| Power Supply | DC 12V 1A | |
| Temperature | -10°C~55°C | |
| Humidity | 0%~80%RHG | |
| Dimension | 84mm(L) X79mm(W) X26mm(H) | |
