Operation video
Description: AS1216 is an entry-level 8-bit microcontroller spectrum,with multi-function,multi-mode,a variety of games are played.
Main feature:
- Gravity automatically commutation,like a smart phone to convert the display direction
- 7 kinds of classic mode adjustable,digital display, with power-down memory
- 20 brightness adjustable, digital display,with power-down memory

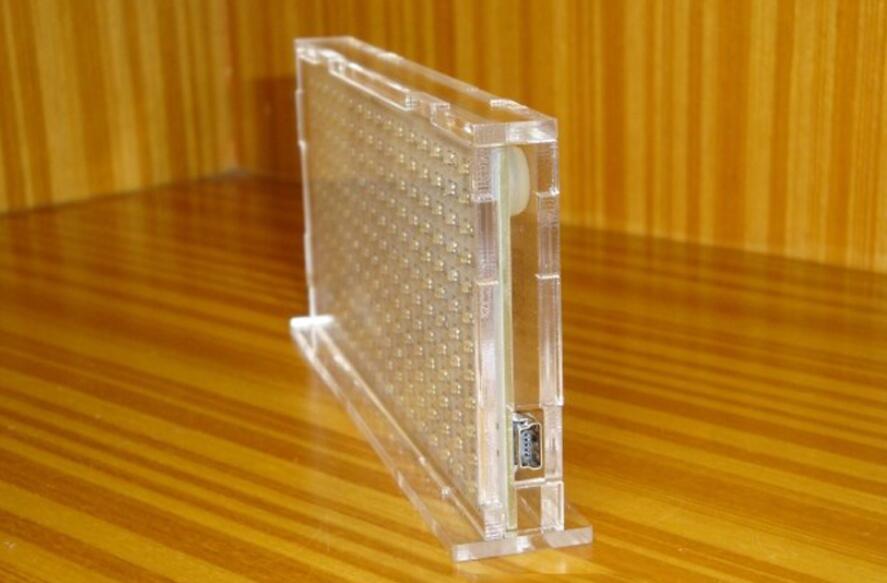

- Fully enclosed plexiglass shell
- Two-channel stereo acquisition,software integration,stereo spectrum
- High/medium/low/three adjustable gain

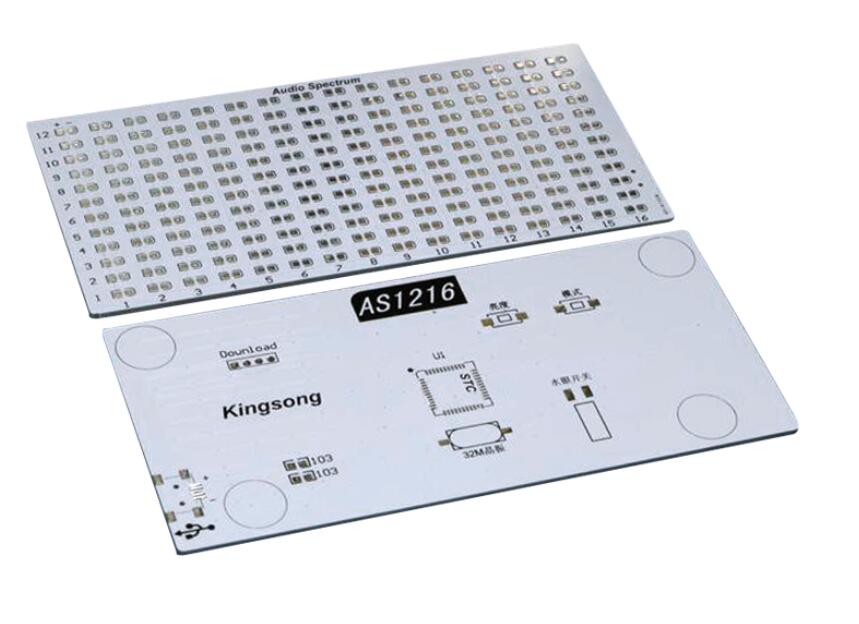

1.Shell size:136x66x12mm,PCB size:130x60mm
2.12x16 = 192 points display
3.The use of 192 red,yellow,green,blue four-color Taiwan billion light (NADE IN TAIWAN) 0805 SMD LED,brightness,color and long life long (kit LED each color will be more than a few)
4.Power and audio integrated input line, the interface using miniUSB;
Key Function Description: (with digital display)
Mode: short press- mode adjustment 1-7,long press- L (low) M (middle) H (high) three-level gain adjustment (with power-down memory)
Brightness: Short press- Brightness adjustment 1-20 (with power-down memory)
1.With multi-mode key switch:
- Tradition
- Single floating point fast pace
- The traditional with floating objects
- Single floating point slow pace
- Reverse display
- Anti-floating point
- Automatic conversion,set with power-down memory,the next boot is your favorite interface;
2.Brightness 20 adjustable,brightness value with power-down memory,soft to highlight the choice.

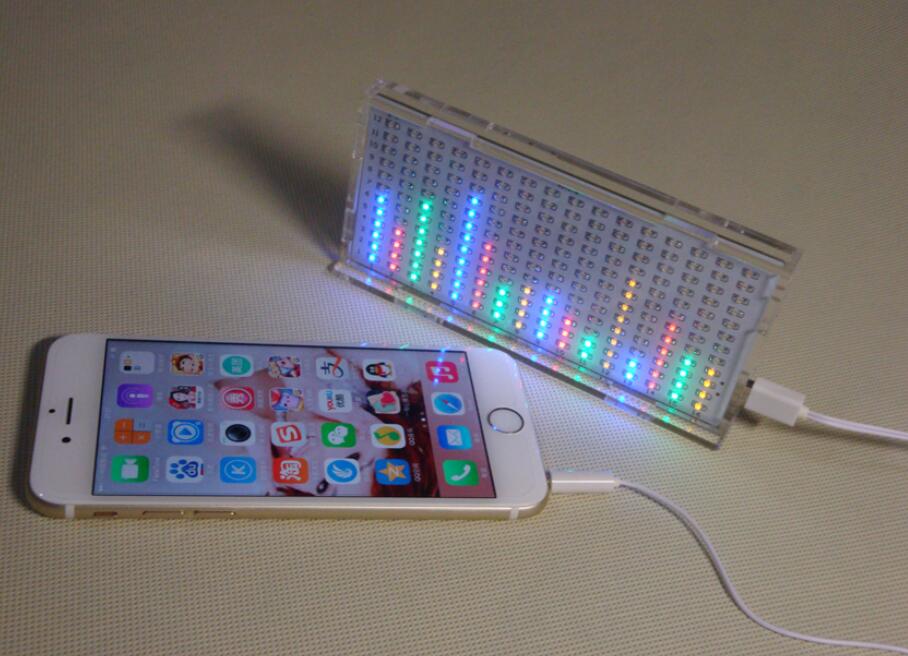

3.High school low three adjustable,with the phone, tablet and headset try to adjust the gain to M or H,with the computer and external audio can be adjusted to L,the spectrum for a variety of sources.
4.The spectrum also adds a function of "gravity automatic commutation",when you use the computer to learn tired, ready to listen to music solution, then you can play on the desktop AS1216, when you turn it over,you Will find the spectrum will automatically follow the reverse

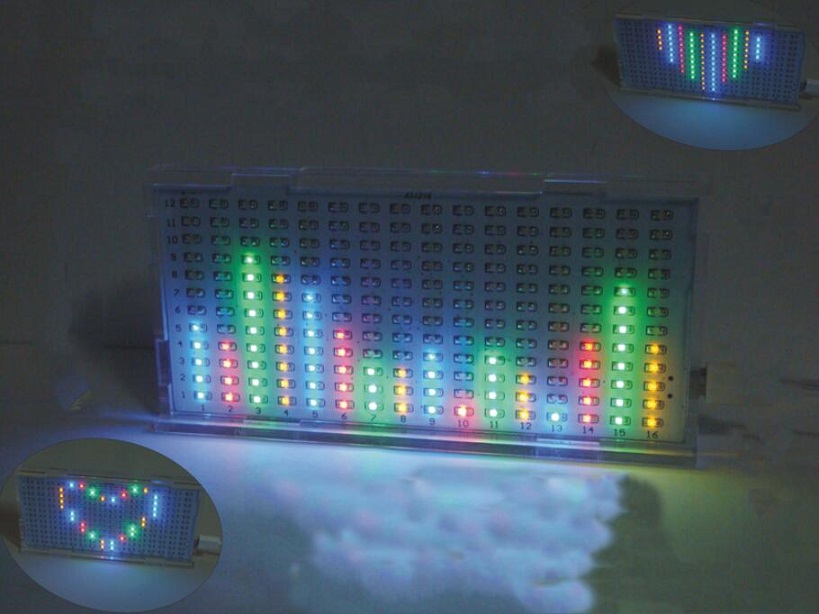

5.A single floating point display,AS1216 single floating point display is like a fireworks scattered effect,and with the sound of the sound rise and fall.

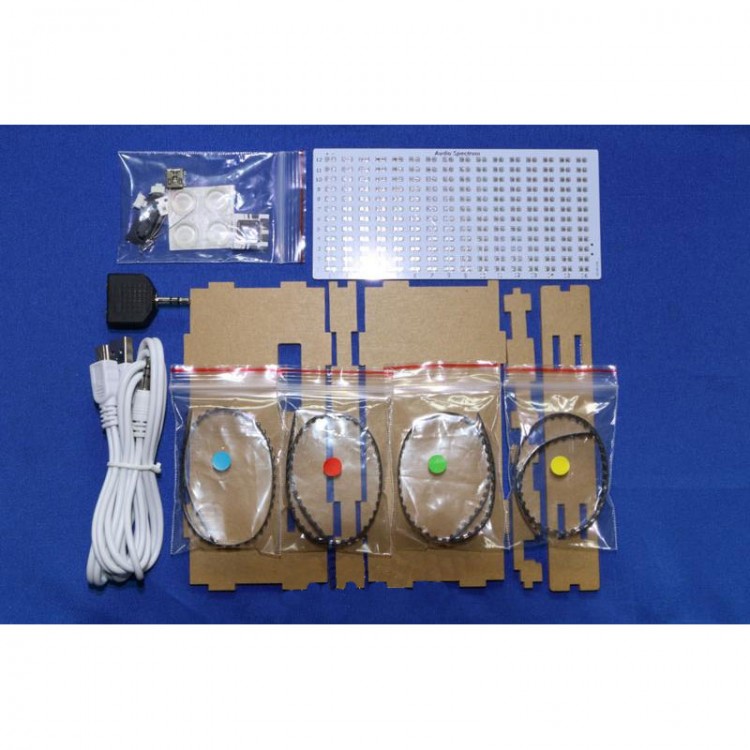

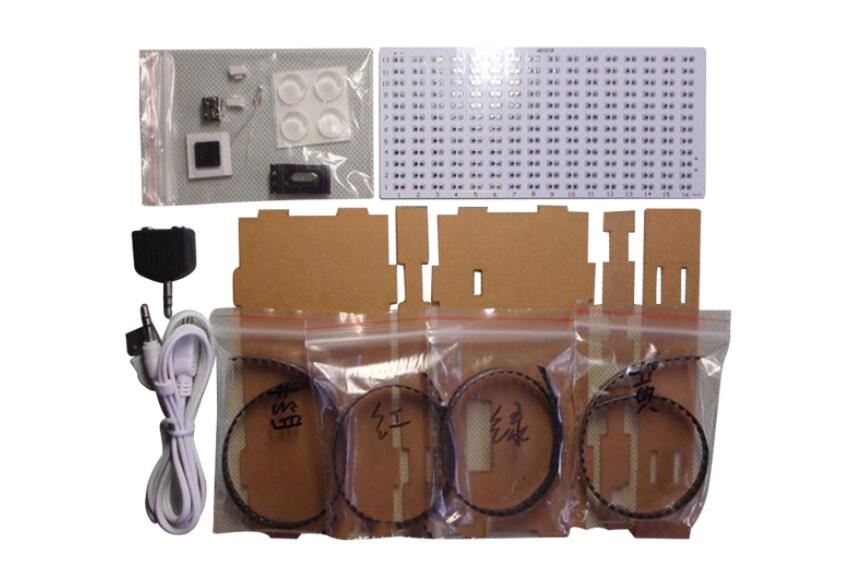

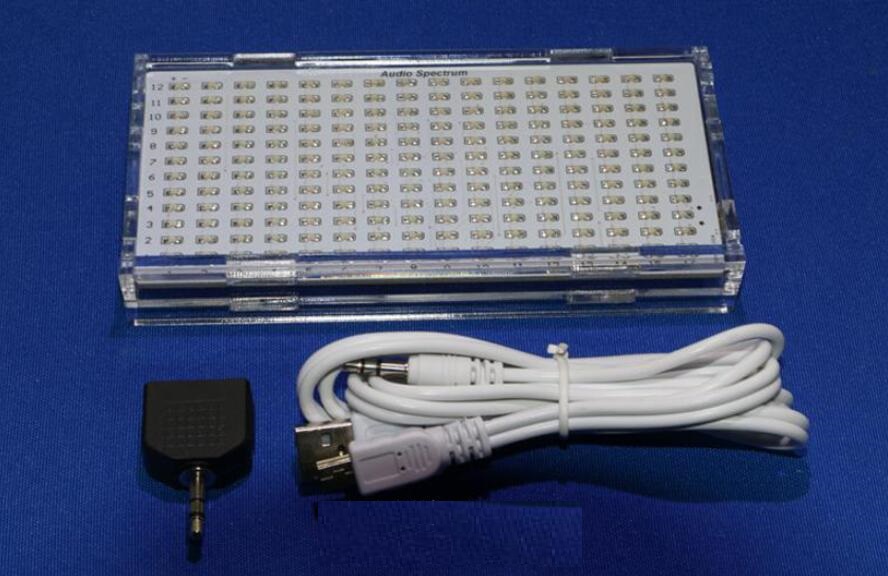

Suite will free with a 3.5 mm headphone jack audio one points two branches,one end of the audio, one end of the spectrum.
AS1216 USB 5V power supply, working current is only about 30 ma,is not only can plug in the computer USB interface,as long as it is 5 v mobile phone charger,mobile power supply can power supply.
Note: when using computer volume best suggested to 50% 60%,should not be turned on at full volume on the computer,through active speaker volume knob to adjust sound volume.
Package List:
- 1 x AS1216 Music Spectrum Display Analyzer
