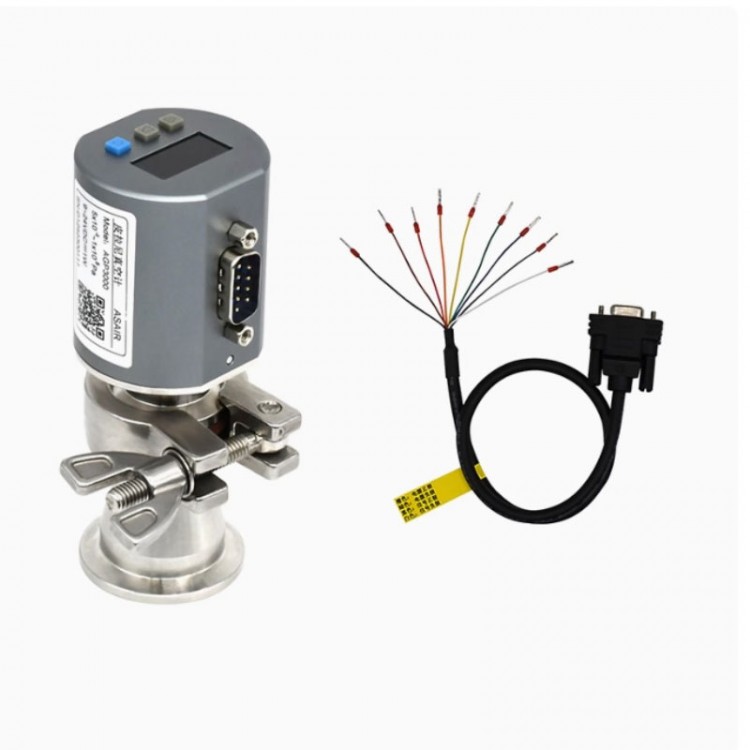

ASAIR Digital Display Pirani Vacuum Gauge KF16 to KF25 Kit with DG9 Cable Replacement for INFICON PSG500 Pirani Gauge
Description:
- The AGP3000 Pirani vacuum gauge is developed based on the principle of thermal conductivity and is used for vacuum pressure measurement. It provides analog voltage output and digital interface for external use. The product comes with a color screen display, button control, MEMS chip and signal processing circuit, and has the characteristics of high precision, excellent stability, and good repeatability.
- Application: The AGP3000 Pirani vacuum gauge is suitable for low to medium vacuum measurement scenarios, such as vacuum baking, vacuum packaging, vacuum coating, vacuum heat treatment, vacuum brazing, vacuum coating, metal smelting, semiconductor equipment and other industry fields.
Key Features:
- High precision vacuum measurement
- Long term stable and reliable performance
- Easy and convenient installation
- Fast response, meeting the requirements of control applications
- TFT-LCD color screen display
- 0 ~ 10V analog signal output
Specification:
- Model: AGP3000
- Power supply voltage: 9 - 24V
- Measuring range (N2 and air): 5 x 10^-4 to 1 x 10^3 mbar
- Precision (N2): ±5% (1 x 10^-3 to 1 x 10^2 mbar), ±10% (5 x 10^-4 to 1 x 10^-3 mbar), ±25% (1 x 10^2 to 1 x 10^3 mbar)
- Repeatability precision (N2): ±2% (1 x 10^-3 to 1 x 10^2 mbar)
- Power consumption: 1.0W
Package Included:
- 1 x Pirani Gauge
- 1 x DG9 Cable
