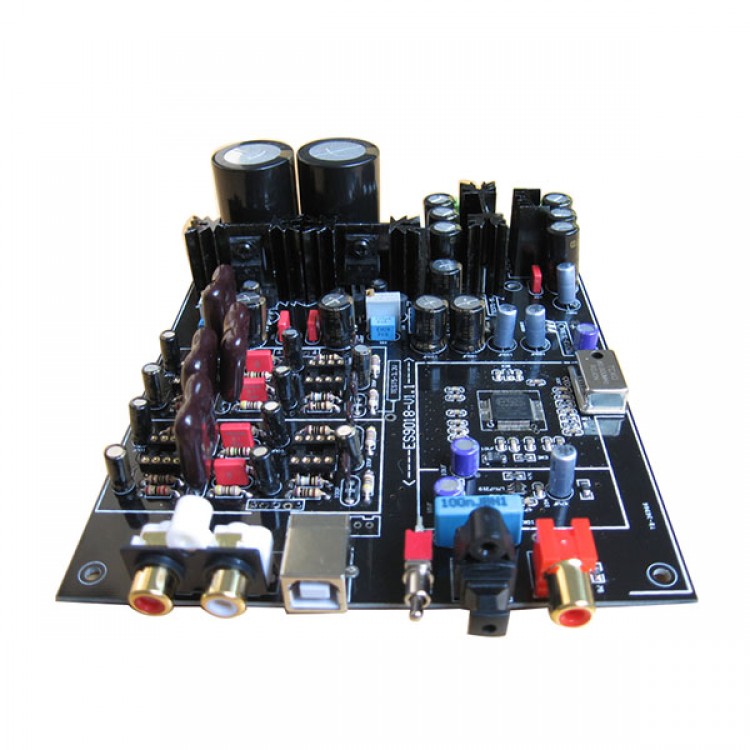

Assembled Board ES9018 32bit 192kHz Hi End DAC Optical Coax and Balanced Output 0101038
Description:
- ES9018 IC is very very good, have no word to describe. The best DAC chip so far, very good feedbecks from customers!
Sample rate:
- Coaxial Supports up to 32bit 192khz
- Optical supports up to 96khz
- Input: Optical and Coaxial+ USB
(but you need to buy the USB module, the CM6631 Usb and XMOS usb also support up to 192khz)
- Output: RCA
Balanced output:
- There are connectors points on the board between the op amps, one for left channel, the other is for right channel, if you need balanced output, you can lead wires to XLR insert by yourself.
- Input voltage : AC 15V x 2 + 8-12V x 2
- This DAC use 2 pcs dual opamp and 2 pcs mono opamp,but this price is NOT include the opamp, you can use op amps you have, and ESS recommend use AD797
- if you need opamps, just email me or check my store.Thanks.
- mono opamps such as NE5534, OPA627, AD797, LME49710. (our opamps are with DIP-8 socket,easy to replace)
- dual opamps such as NE5532, OPA2604, OPA627(x2,mono to dual), AD797(x2, mono to dual), LME49720. (our opamps are with DIP-8 socket,easy to replace)
- USB in: We have compatible USB for this DAC, but the price is NOT include the USB card,
Package includes:
- Advanced configuration version assembled board:
- Including ES9018S chip, already welded. Installing the operational amplifier, it can be used once powered on, the operational amp is not inlcuded
