Astronomical Telescope 3-inch Equatorial Mount + 20mm Counterweight Rod Dual-arm Heavy-duty Design for Binocular Telescope

Astronomical Telescope 3-inch Equatorial Mount + 20mm Counterweight Rod Dual-arm Heavy-duty Design for Binocular Telescope

Description:

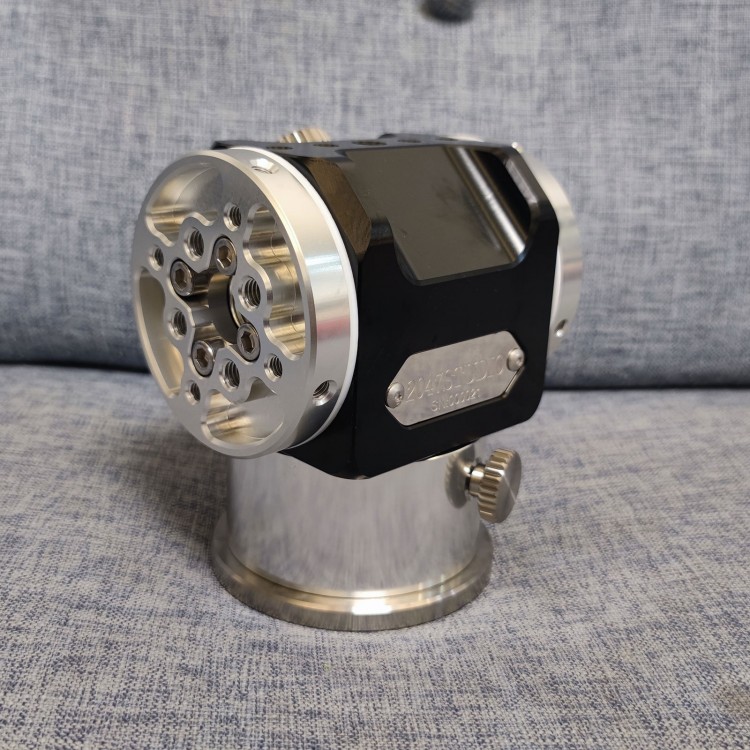

- Astronomical telescope equatorial mount is a pan tilt system suitable for visual inspection of astronomical telescopes.
- The design concept adopts a dual arm symmetrical design, which meets the requirements of conventional theodolites while adding accessories to form a dual arm theodolite that can be installed (which can accommodate binoculars); Structurally abandoning the traditional friction table that relies solely on friction plates to maintain load-bearing capacity, the rigidity problem is solved by multiple sets of bearings colliding hard. Damping is provided by a dedicated damping structure to ensure strength and stability. The body provides damping torque and locking torque.
- In terms of size, the horizontal axis disc surface is 80mm (aluminum alloy), and the vertical axis disc surface is 90mm (stainless steel), which can be installed with various types of dovetail grooves and can also be conveniently installed on various three legged surfaces; Both sides are equipped with counterweight rod screw holes to expand the stable kit, providing M20 x 1.5 screw holes; In terms of weight, the body weighs about 2KG.
- Load capacity: over 20kg

Package Included:
- 1 x Equatorial Mount
- 1 x Counterweight Rod

Note:
- The dual-arm kit is not included.
