AT-DP Adapter Board in Pieces Long Line End Feed GP Positive V Inverted V Dipole Shortwave Antenna for Antenna Erecting
Features:

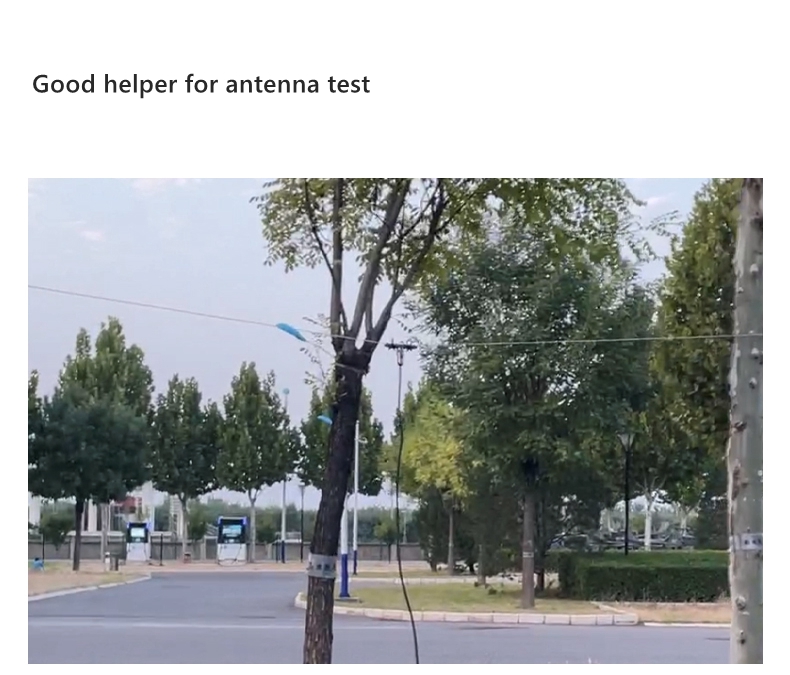

- This product can be applied to the test of various antennas to solve the problem of feeder and array connection when you are testing antennas. It allows you to connect the feeder with the array more easily and firmly, so that your ideas and designs can be verified more quickly.

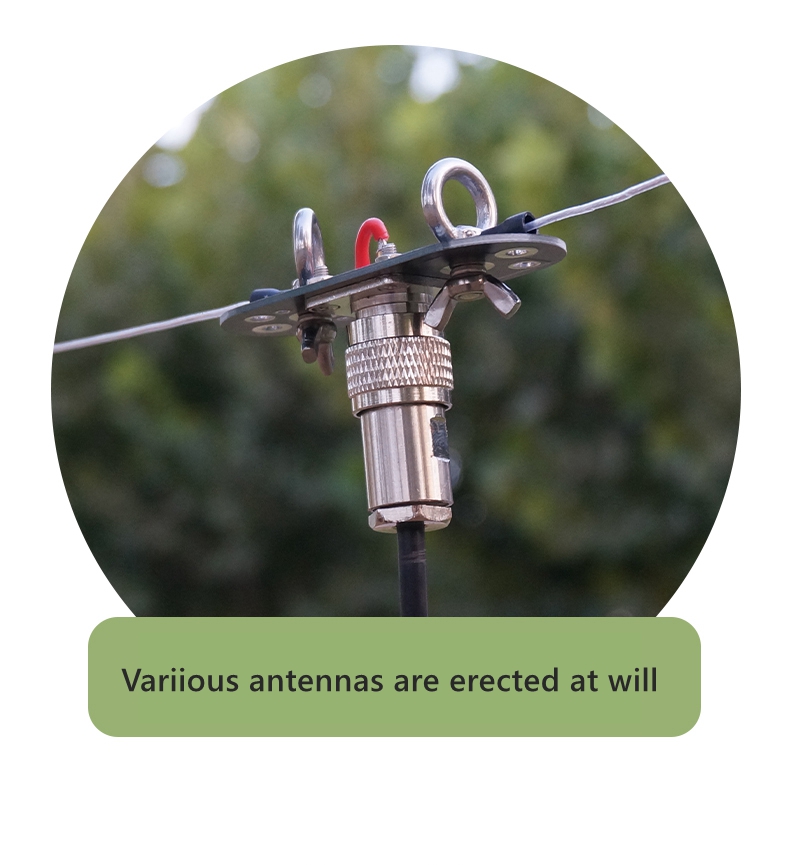

- This product can be used to set up all kinds of shortwave antennas, such as long line, end feed, horizontal even level, vertical antenna, inverted V, positive V, NVIS and other antennas, so that you can set up antennas more freely outdoors.

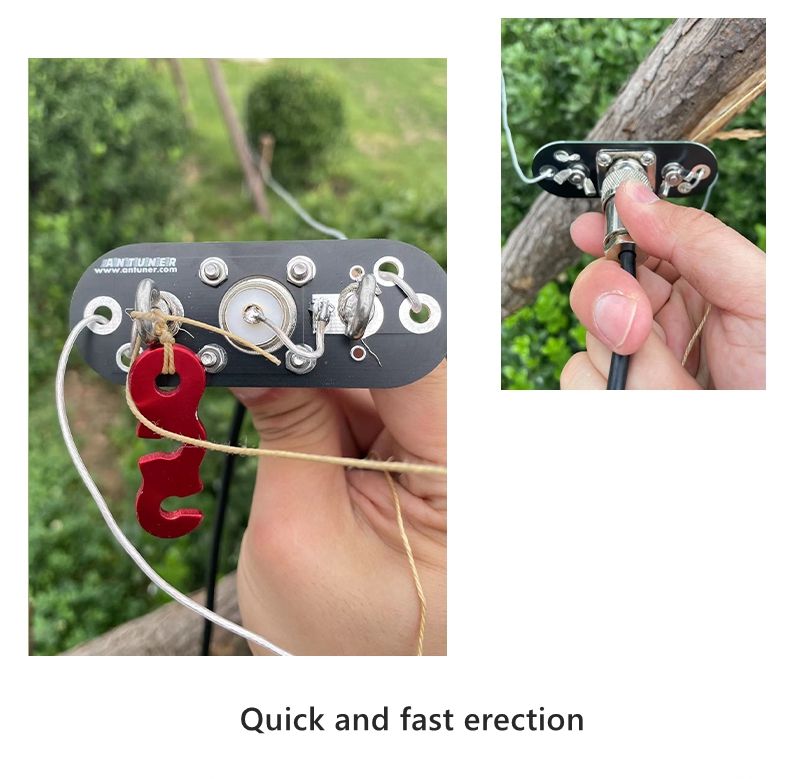

- You can apply it to the rapid field erection of the antenna feeder system. In the face of emergency communication support and outdoor rescue, you can quickly complete the erection and connect in a short time, so that you can connect more conveniently and reliably.

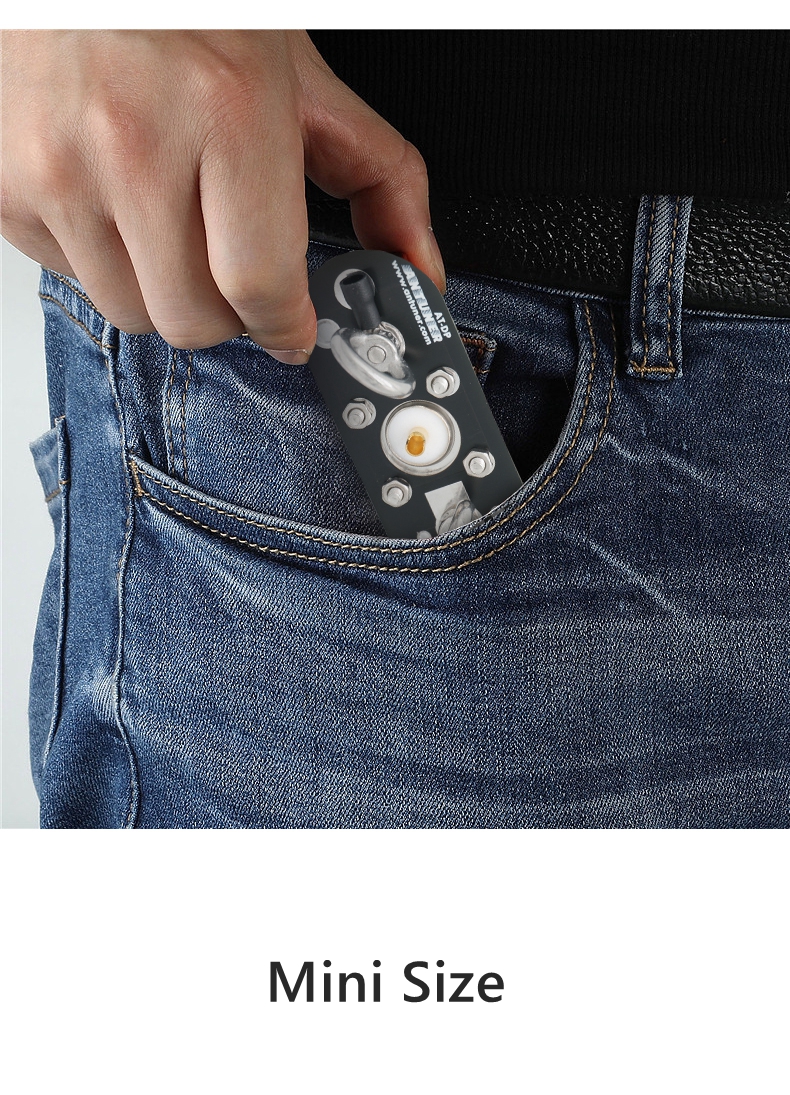

- This product is very compact, you can easily put it in your pocket, avoiding carrying heavy antenna equipment, so you can move forward with light weight.

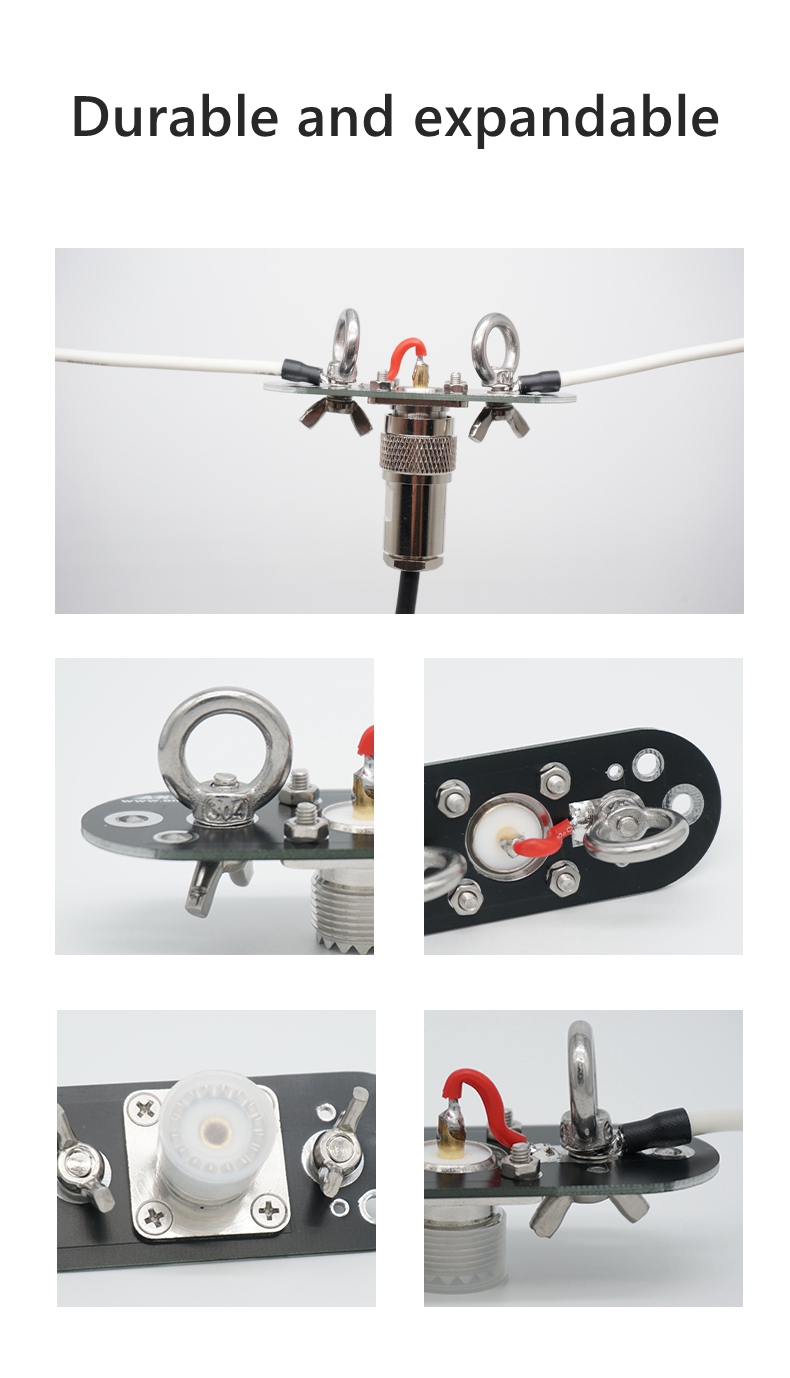

- The main board of this product is made of high-strength fiberboard, which is solid and durable. You can easily fix it at the fulcrum and lift the antenna body to adjust. It can adapt to various complex environmental conditions and help you complete all kinds of communication.
Parameter:
- Model: AT-DP Adapter board
- Withstand power: 30W
- Weight: 44g
- Main board material: high-strength fiberboard
- Lifting ring structure: national standard 304 stainless steel
- Size: 80 x 30 x 50mm

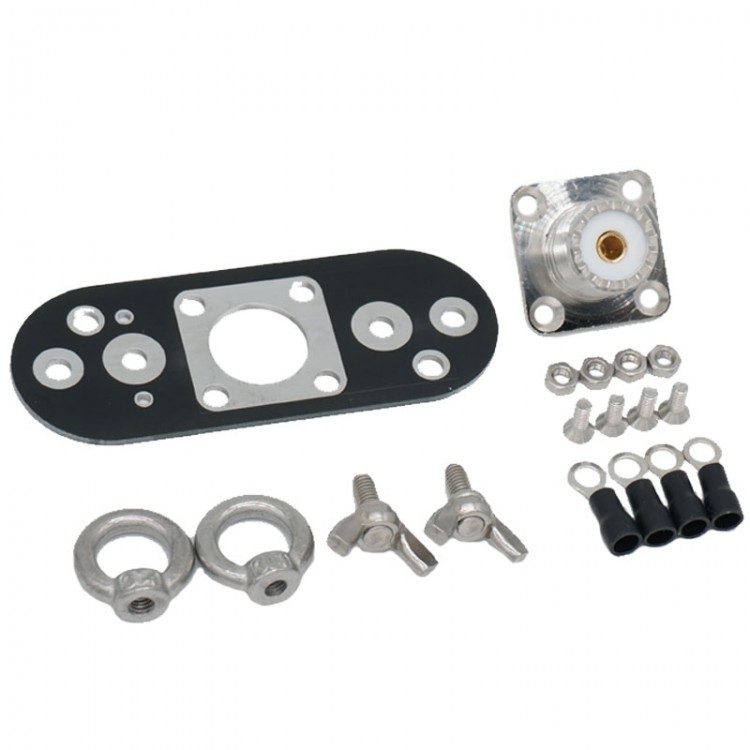

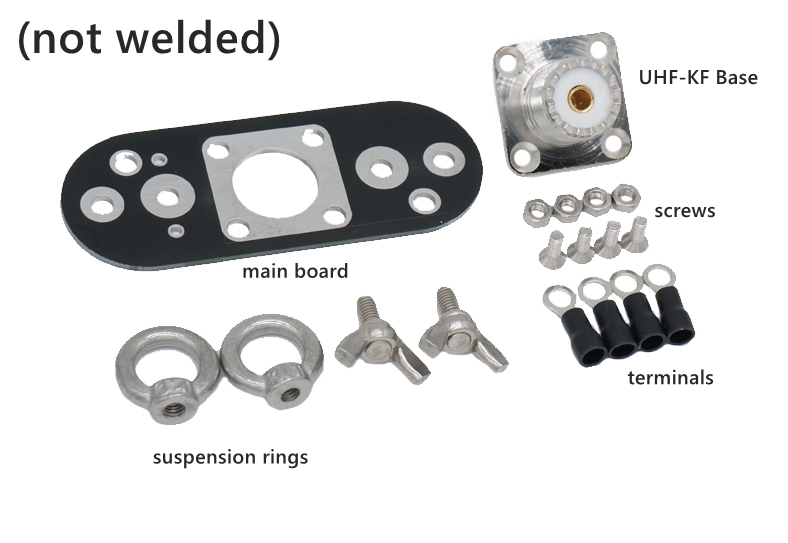

Package Included:
- 1 x Main board
- 1 x UHF-KF Base
- 4 x Screws
- 2 x Suspension rings
- 4 x Terminals
Note:
- After the erection, first check whether each part is tightened firmly to avoid damaging the equipment due to false tightening.
- During high-power transmission, it is recommended to fix the vibrator by welding or multi-point fixation to ensure stable and reliable connection.
- This product is not equipped with magnetic ring, balun and other accessories. Please prepare your own according to your personal needs.
