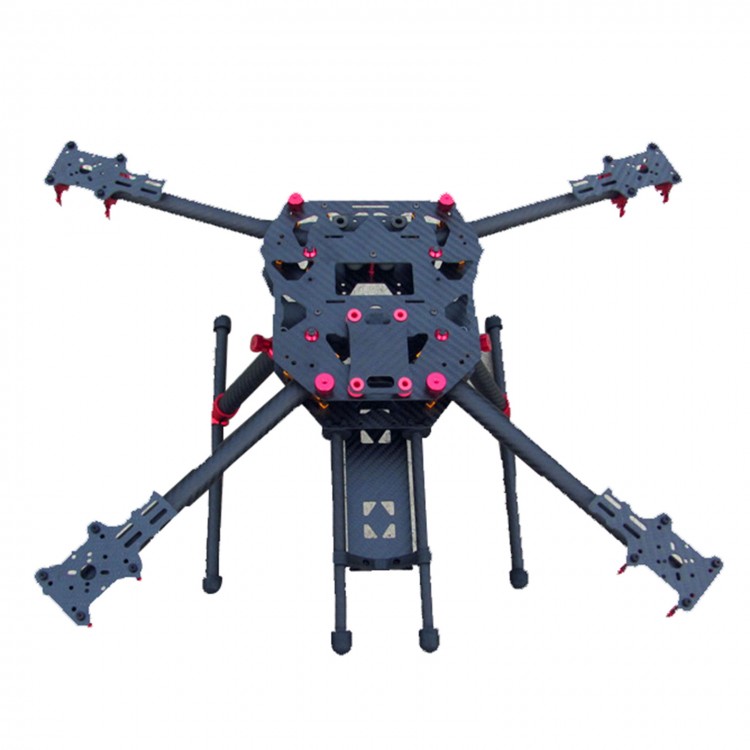

ATG-18-ET4 18MM Arm Full Carbon Folding Alien Quadcopter Butterfly for FPV Photography

Availability: In stock, usually dispatched in 1 business day

  • Price:$164.65
  • Price in reward points: 1647 Reward Points: 16
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $161.36 $158.06 $153.12 $146.54 Contact US
Quantity:

ATG-18-ET4 18MM Arm Full Carbon Folding Alien Quadcopter Butterfly for FPV Photography

Description:

- This product is firstly designed to work with Tarot 2D or ATG 2D gimbal front AIO structure, 10 or 12mm mounting tube is only used for mounting battery board
- If you need this quadcopter to mount other types of gimbal, you will need the mounting hanger, 10 or 2mm carbon tube is needed to buy addtionally. Please check whether the landing gear height 160mm is suitable for gimbal or not, prolonged tube 18*16*265mm is need to by to make enhanced landing gear

Note: Two types of mounting tube, 10mm and 12mm. 10mm: 10X8X330mm, 12mm: 12X10X330mm. Please choose the size and leave a message for us when placing an order

Parameters:
- Unfolded wheelbase: 550mm, front axis is about 265mm, back axis is about 400mm
- Prop distance: max support 12 inch, recommend to use ATG 1047 propeller enhanced version
- Arm tube dia: full carbon 3K 18*16*235mm
- Material: 1.5mm full carbon fiber 3K
- Center board height: 30mm
- Motor base hole distance: support most disc motor pitch and special 30mm pitch (base dia>=51mm)
- Weight: 650g (empty aircraft)
- Flight control damper plateform: including
- Folded specs: 390mm*190mm*160mm
- Control mode: quadcopter X shape control mode, or X shape coaxis eight rotors control mode

Advantages:
- Quadcopter main axis adopts 3k full carbon tube 18mm, with 1.5mm full carbon fiber board, and 7075 aerial aluminum material
- 4 holes to fix the 18MM carbon fiber tube, easy to fix aircraft components and motor
- The inner two holes are to fix tube , the outside two holes are used for motor base or mobile holes, easy to solve the balance problem
- 18MM tube dia is thicker than 16mm, more anti-damper, or can be added two 16*14mm tube at the outside

Features:
- 18MM arm fixing components function: one time to balance four fixing bases
- Hand nut can make the dismentle more quick, folding function, to make the fixed arms stable and cannot be moved, no space to produce vibration.
- If you want to use the bigger motor, or think 18mm carbon fiber tube is not strong enough, 25mm tube aircraft can be considered
- Arm rotating pitch adopts 12.9 grade, high strength M3 screw can be fixed both head and tail, working with M3 anti-slip nuts with large spacer, solving the screw loose and dropping screws phenomenmon, larger spacer is to prevent the damage to carbon board caused by screws, enhancing the using life
- Battery board can be moved back and forth to adjust the changes caused by aircraft gravity and folding shape
